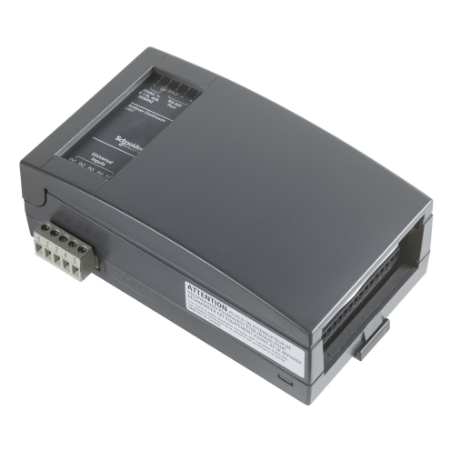

Picture of Andover Continuum i2867 Terminal Controller, Infinet II, 4 Universal Inputs, 5 Form A Triac Outputs, 2 Analog Outputs, 1 Smart Sensor Input
SKU:

I2867

Andover Continuum i2867 Terminal Controller, Infinet II, 4 Universal Inputs, 5 Form A Triac Outputs, 2 Analog Outputs, 1 Smart Sensor Input

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Andover Continuum i2867 Terminal Controller, Infinet II, 4 Universal Inputs, 5 Form A Triac Outputs, 2 Analog Outputs, 1 Smart Sensor Input
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Maximum number of I/O expansion module 1
IP degree of protection IP10
Device short name i2867
Display type LED
Width 89 mm
Relative humidity 10-95 % non-condensing
Product specific application control of package unit, heat pump, unit ventilator, other terminal unit
Memory type 1 MB flash, 128 kB SRAM
Function available DDC control
Height 157 mm
Depth 64 mm
Number of inputs 4 universal
Product or component type terminal controller
Ambient air temperature for operation 0-49 °C
Number of outputs 5 single pole single throw form A triacs, 2 analog output
Range of product Infinet II
Communication port support standard service port, RS485
[Us] rated supply voltage 24 V AC
Product certifications FCC, CE, UL/cUL 916
Complementary
Battery type lithium 5 years power failure backup of RAM memory
Product compatibility Infinity SX 8000 system, Continuum CyberStation
Realtime clock with synchronized through Andover Infinet by network controller
Bus length 1220 m Infinet i2 Infilink module for extra distance
Processor name Motorola 32-bit coldfire
Input impedance 5 MOhm with pull up resistor disabled, 10 kOhm 5.120 V
Local signalling LEDs
Accuracy +/- 15 mV DC +/- 0.56 °C from - 23...66 °C
Software package Continuum CyberStation
Power consumption in VA 4 VA
Standards EN 55022, FCC CFR 47 part 15, AS/NZS 3548 class A, ICES-003
Programming language English
Electrical connection screw connector, 3 terminal(s)
Output voltage 24 V DC, 24 V AC, 0...10 V,5 mA for analog output
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 12.0 cm
Package 1 Length 17.0 cm
Package 1 Weight 348.0 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.0 kg
