VIGILOHM IM400 100 - 440 VAC

Old price: $6,732.00 INC GST
$5,722.20 INC GST
Availability: Please contact our sales team on 1300 724 622.
Product Selector
VIGILOHM IM400 100 - 440 VAC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Environmental Disclosure
Instruction sheet
Catalog
User guide
Circularity Profile
Product Page Link
Product Data Sheet

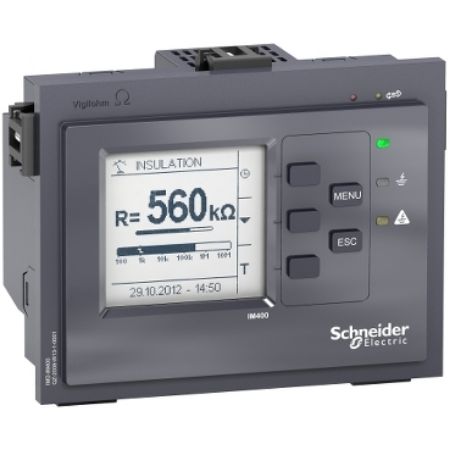

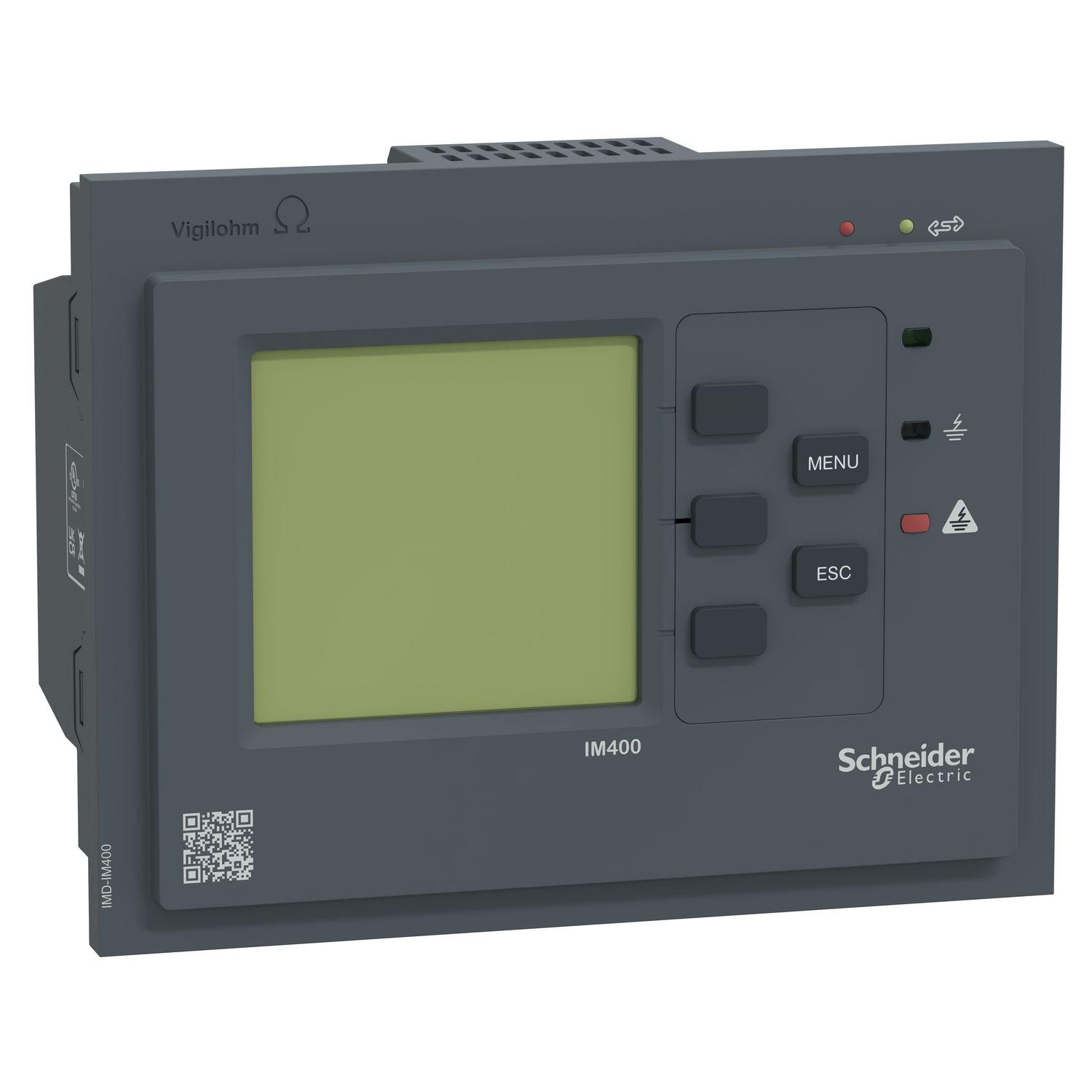

This device belongs to the Vigilohm range designed to monitor ungrounded/IT electrical networks, in accordance to installation and products standards. According to standards, it is recommanded to equip your systems with Insulation Monitoring Devices (IMD). This device is dedicated to monitoring large and disturbed AC, DC and ACDC systems. It mesures the system insulation resistance by injecting a low frequency AC current between the network and ground. Configuration will be set depending on the installation. Settings are available on the front of the device, through the HMI screen, or from the communication port. Settings are related to network type, alarm and pre-alarm thresholds, alarm delay from 0 to 7200 secondes, and others are available. It monitors networks up to 830VAC when connected to neutral, 480V when connected to line, and 480VDC, with up to 500microfarad. The black and white screen can displays insulation resistance from 10 ohms to 10 megohms, capacitance and temporary faults. Auto-test starts automatically every 5 hours, and on demand. In case the system insulation resistance drops below the set threshold, meaning a ground fault occurred, an alarm is triggered thru the IMD output relay. Once no fault is monitored, the alarm is cleared, the alarm relay is back to normal. The device can be supplied by a 110VAC to 440VAC source or a 110VDC to 440VDC, all with a tolérence of plus or minus 15%. This product is installed flush mounted, an enclosure door for example. Front face ingress protection is IP5, rear IP20 and overvolage 300V category III. The monitoring device is equipped with a RS485 communication port, Modbus protocol.

Products specifications

Attribute name Attribute value
Main
Device short name IM400
Device application standard environment application, marine application
Range Vigilohm
Application large or highly disturbed network
Earthing system IT
User language English, Spanish, Russian, Portuguese, Chinese, German, French, Italian
Range of product Vigilohm
Product name Vigilohm IM
Product or component type insulation monitoring device
Complementary
Display type digital display
Insulation shield no
Compatibility code IM400
Cut-out dimensions 112 x 148 mm
Mounting mode flush-mounted
[Us] rated supply voltage 100...440 V DC +/- 15 %, 100...440 V AC 400 Hz +/- 15 %, 100...440 V AC 50/60 Hz +/- 15 %
Communication port support RS485
Time delay range 0...120 min for signalling circuit
Connections - terminals removable screw terminal block0.2-2.5 mm²
Type of measurement earth leakage capacitance - measurement range: 0.1...500 µF, network insulation resistance - measurement range: 10 Ohm...10 MOhm
Input function injection inhibition: 24 V AC 5 mA
Height 123 mm
Relative impedance 40 kOhm - DC, 40 kOhm - AC at 0.1...440 Hz
Threshold setting alarm: 40 Ohm...500 kOhm, pre-alarm: 1 kOhm...1 MOhm
Signal contacts composition 2 C/O standard or fail-safe
Depth 90 mm
Overvoltage category III
Width 159 mm
Mounting position horizontal
Test function self test, manual
Response time <= 4 s
Local signalling yellow flashing indicator light: communication, yellow indicator light: insulation fault, red indicator light: wiring or internal fault, white indicator light: below prevention threshold, green indicator light: satisfactory insulation resistance
Communication port protocol Modbus
Power consumption in VA 25 VA
Measurement current 0-375 µA, 0-825 µA, 0-3 mA
Net weight 0.75 kg
Material thermoplastic
Signalling circuit voltage 48 V - DC at 1 A, 250 V - AC at 6 A
Network rated voltage 0-480 V - DC, 0-830 V - AC at 45...440 Hz (device connected to neutral) , 0-480 V - AC at 45...440 Hz (device connected to phase)
Mounting support panel
Measurement voltage 33-33 V, 15-15 V, 120-120 V
Environment
IP degree of protection front face: IP54, case: IP20
Relative humidity 0-90 %
Ambient air temperature for storage -40-70 °C
Pollution degree 2
Ambient air temperature for operation -25-55 °C
Operating altitude <= 3000 m
Standards UL 508, IEC 60364-5-51, CSA C22.2 No 14-05, IEC 61557-8, IEC 61010-1, IEC 60364-4-41
Type of installation indoor
Environmental characteristic salt mist conforming to IEC 60068-2-52, exposure to damp heat in service conforming to IEC 60068-2-56, exposure to damp heat not in service conforming to IEC 60068-2-30
Dielectric strength 5500 V - DC, 4000 V - AC
Product certifications UL, cULus, CSA, EAC, ABS, CE, RMRS, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 17.500 cm
Package 1 Length 21.200 cm
Package 1 Weight 946.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.458 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 43.500 kg
