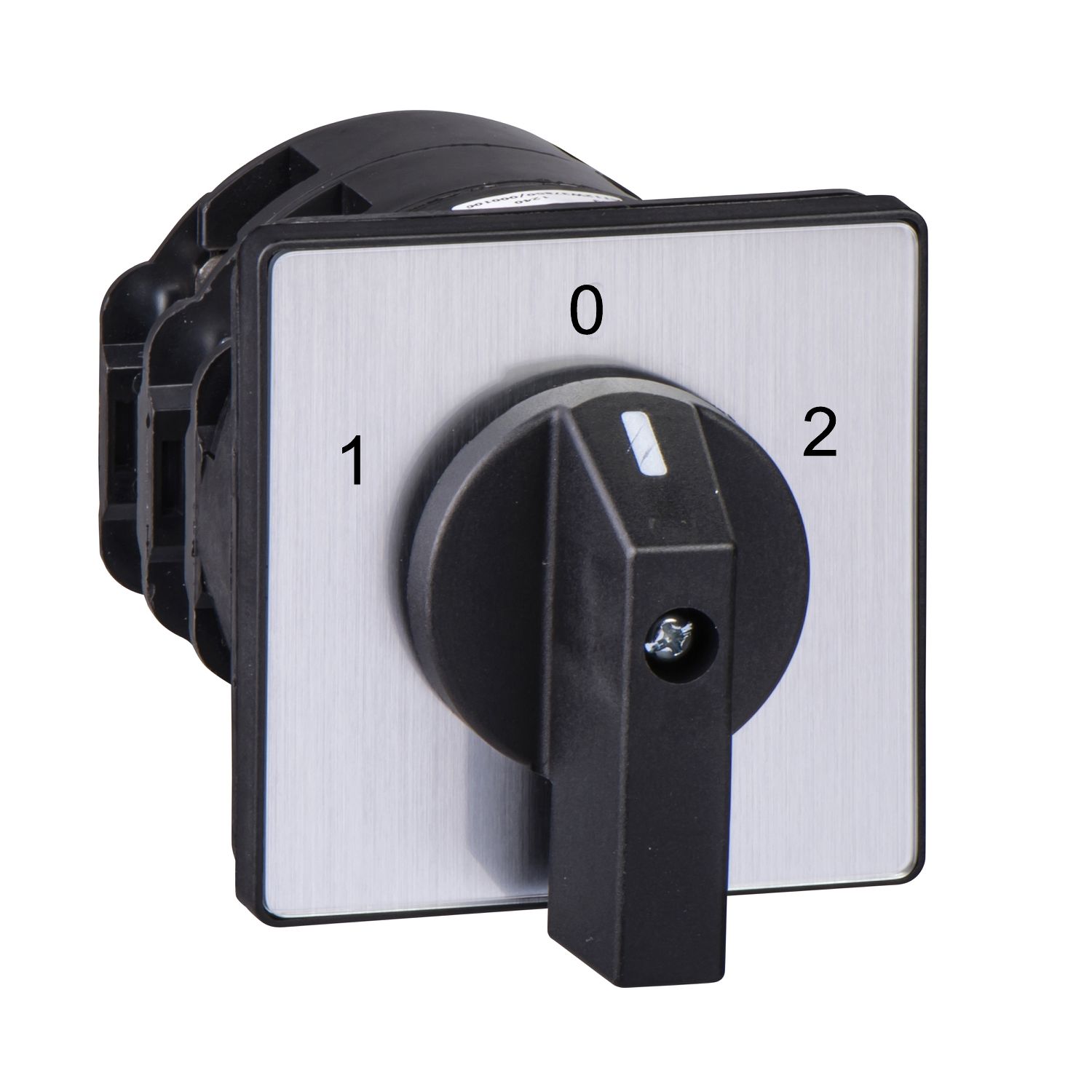

Picture of Cam changeover switch, Harmony K, front mounting, plastic, 4 poles, position 0, 60°, 115A, 88x88mm, marked 1/0/2
SKU:

K115H004UP

Cam changeover switch, Harmony K, front mounting, plastic, 4 poles, position 0, 60°, 115A, 88x88mm, marked 1/0/2

$856.85
Available for Shipping : 10-Dec-2024
Cam changeover switch, Harmony K, front mounting, plastic, 4 poles, position 0, 60°, 115A, 88x88mm, marked 1/0/2
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Off position with Off position
Return without
Rotary handle padlocking without
Poles description 4P
Cam switch head type with front plate 88 x 88 mm
Switching positions left: 0° - 300°, right: 0° - 60°
Mounting location front
Type of operator black handle
Component name K115
Cam switch function changeover switch
[Ith] conventional free air thermal current 115 A
Product or component type complete cam switch
IP degree of protection IP40 conforming to IEC 60529
Presentation of legend with metallic legend, 1 - 0 - 2 black marking
Fixing mode 4 holes
Range of product Harmony K
Complementary
[Ie] rated operational current AC 100 A AC-21A conforming to IEC 60947-3
Rated operational power in W 7500 W AC-3, 220/240 V 1 phase conforming to IEC 60947-3, 65000 W AC-23A, 660/690 V 3 phases conforming to IEC 60947-3, 5500 W AC-23A, 110 V 1 phase conforming to IEC 60947-3, 45000 W AC-23A, 380/440 V 3 phases conforming to IEC 60947-3, 3700 W AC-3, 110 V 1 phase conforming to IEC 60947-3, 30000 W AC-3, 660/690 V 3 phases conforming to IEC 60947-3, 30000 W AC-3, 380/440 V 3 phases conforming to IEC 60947-3, 30000 W AC-23A, 220/240 V 3 phases conforming to IEC 60947-3, 22000 W AC-23A, 380/440 V 1 phase conforming to IEC 60947-3, 15000 W AC-3, 220/240 V 3 phases conforming to IEC 60947-3, 15000 W AC-23A, 220/240 V 1 phase conforming to IEC 60947-3, 13000 W AC-3, 380/440 V 1 phase conforming to IEC 60947-3
CAD overall depth 181 mm
CAD overall width 88 mm
Switching capacity in mA 33000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms), 33000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms), 33000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms), 115000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms), 115000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms), 115000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms), 100000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms), 100000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms), 100000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms), 100000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms), 100000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms), 100000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms)
Compatibility code K11
Mechanical durability 300000 cycles
Contact operation slow-break
Tightening torque 2.5 N.m
Positive opening with
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 15000 A
Electrical connection captive screw clamp terminals solid, clamping capacity: 1 x 35 mm², captive screw clamp terminals flexible, clamping capacity: 1 x 25 mm²
Switching angle 60 °
CAD overall height 88 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 6 kV conforming to EN 947-1
Net weight 0.75 kg
Short-circuit protection 125 A cartridge fuse, type gG
Environment
Protective treatment TC
Overvoltage category class II conforming to NF C 20-030, class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Standards IEC 60947-3
Product certifications cULus 480 V 30 hp 3 phases, cULus 240 V 20 hp 3 phases, cULus 240 V 10 hp 1 phase, cULus 120 V 5 hp 1 phase
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.8 cm
Package 1 Width 9.8 cm
Package 1 Length 24.0 cm
Package 1 Weight 1.206 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.634 kg
