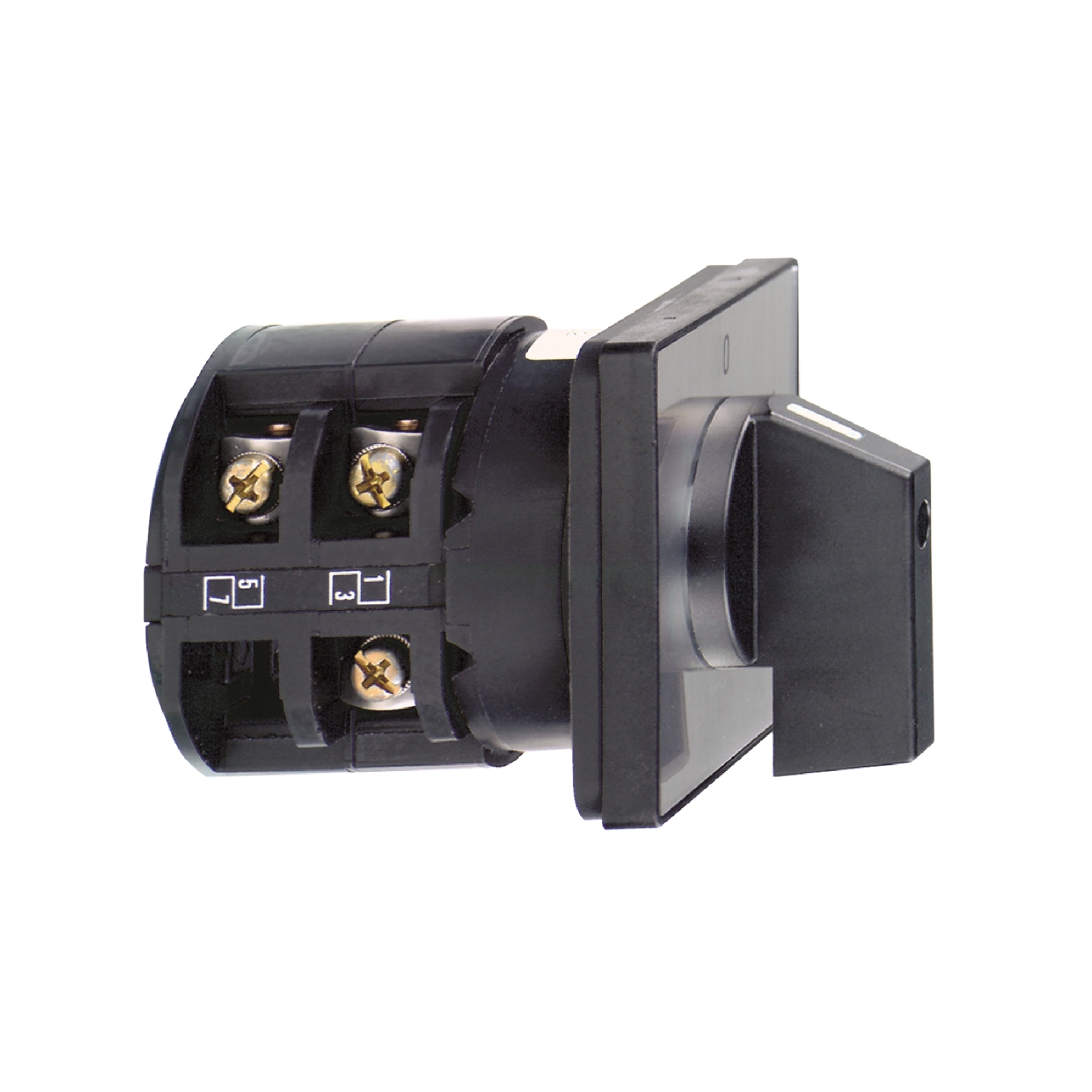

Picture of Cam changeover switch, Harmony K, front mounting, plastic, 3 poles, position 0, 60°, 50A, 64x64mm, marked 1/0/2
SKU:

K50F003UP

Cam changeover switch, Harmony K, front mounting, plastic, 3 poles, position 0, 60°, 50A, 64x64mm, marked 1/0/2

$380.92
Available for Shipping : 10-Dec-2024
Cam changeover switch, Harmony K, front mounting, plastic, 3 poles, position 0, 60°, 50A, 64x64mm, marked 1/0/2
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony K50 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 50A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions.

Products specifications

Attribute name Attribute value
Main
Off position with Off position
Return without
Rotary handle padlocking without
Poles description 3P
Cam switch head type with front plate 64 x 64 mm
Switching positions left: 0° - 300°, right: 0° - 60°
Mounting location front
Type of operator black handle
Component name K50
Cam switch function changeover switch
[Ith] conventional free air thermal current 50 A
Product or component type complete cam switch
IP degree of protection IP40 conforming to IEC 60529
Presentation of legend with metallic legend, 1 - 0 - 2 black marking
Fixing mode 4 holes
Range of product Harmony K
Complementary
CAD overall depth 120 mm
CAD overall width 64 mm
Switching capacity in mA 50000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms), 50000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms), 50000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms), 40000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms), 40000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms), 40000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms), 40000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms), 40000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms), 40000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms), 37000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms), 37000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms), 37000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms), 3500 mA DC at 330 V 3 contact(s) for inductive load (T = 50 ms), 3500 mA DC at 220 V 2 contact(s) for inductive load (T = 50 ms), 3500 mA DC at 110 V 1 contact(s) for inductive load (T = 50 ms), 30000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms), 30000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms), 30000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms), 20000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms), 20000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms), 20000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms), 15000 mA DC at 60 V 1 contact(s) for inductive load (T = 50 ms), 15000 mA DC at 180 V 3 contact(s) for inductive load (T = 50 ms), 15000 mA DC at 120 V 2 contact(s) for inductive load (T = 50 ms)
Compatibility code K50F
Mechanical durability 300000 cycles
Contact operation slow-break
Tightening torque 2 N.m
Positive opening with
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 5000 A
Electrical connection captive screw clamp terminals solid, clamping capacity: 2 x 10 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 6 mm²
Switching angle 60 °
CAD overall height 64 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 6 kV conforming to EN 947-1
Net weight 0.53 kg
Short-circuit protection 63 A cartridge fuse, type gG
Environment
Protective treatment TC
Overvoltage category class II conforming to NF C 20-030, class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Standards IEC 60947-3
Product certifications cULus 240 V 7.5 hp 3 phases, cULus 240 V 7.5 hp 1 phase, cULus 480 V 25 hp 3 phases, cULus 120 V 3 hp 1 phase
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.7 cm
Package 1 Width 7.2 cm
Package 1 Length 7.2 cm
Package 1 Weight 383.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 12.034 kg
