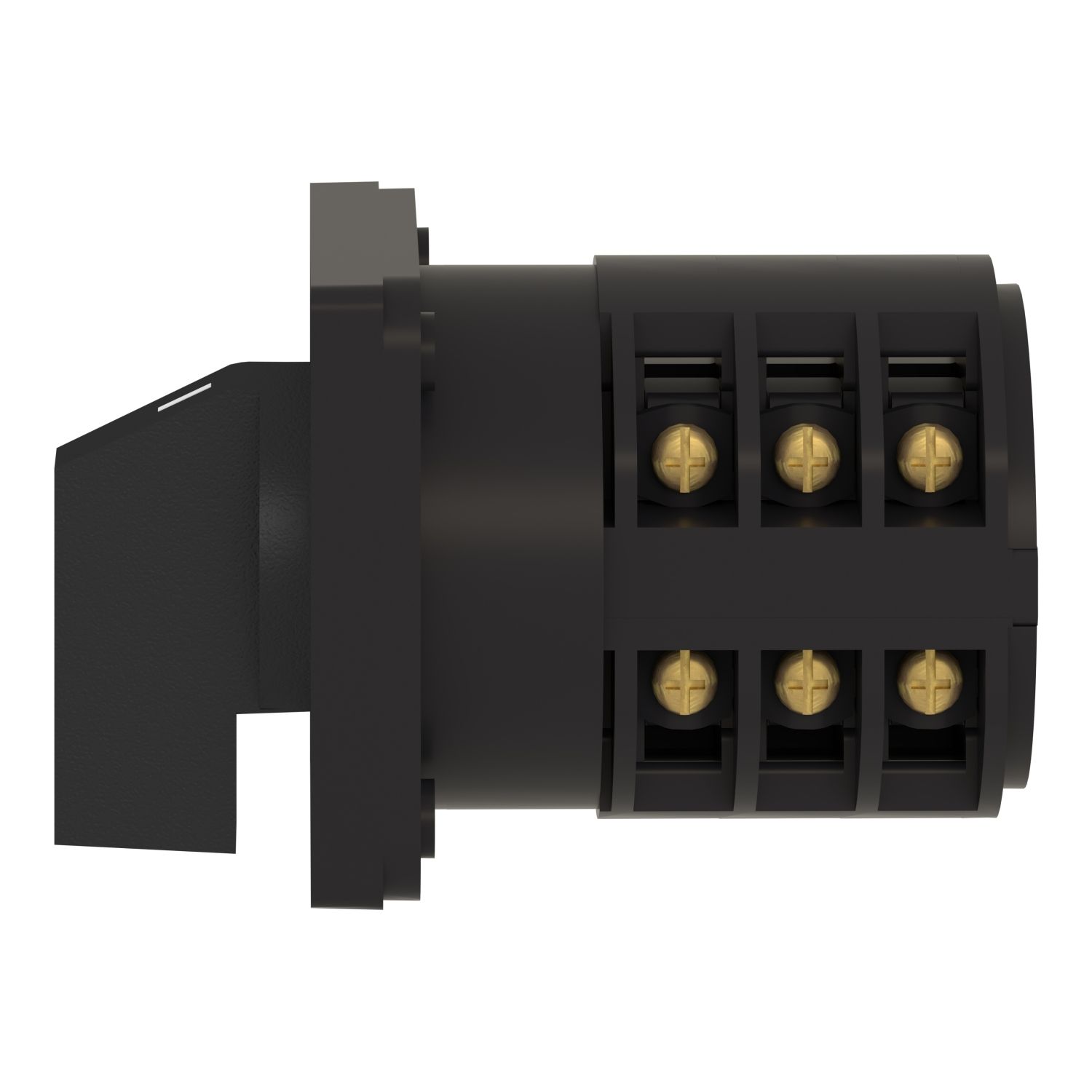

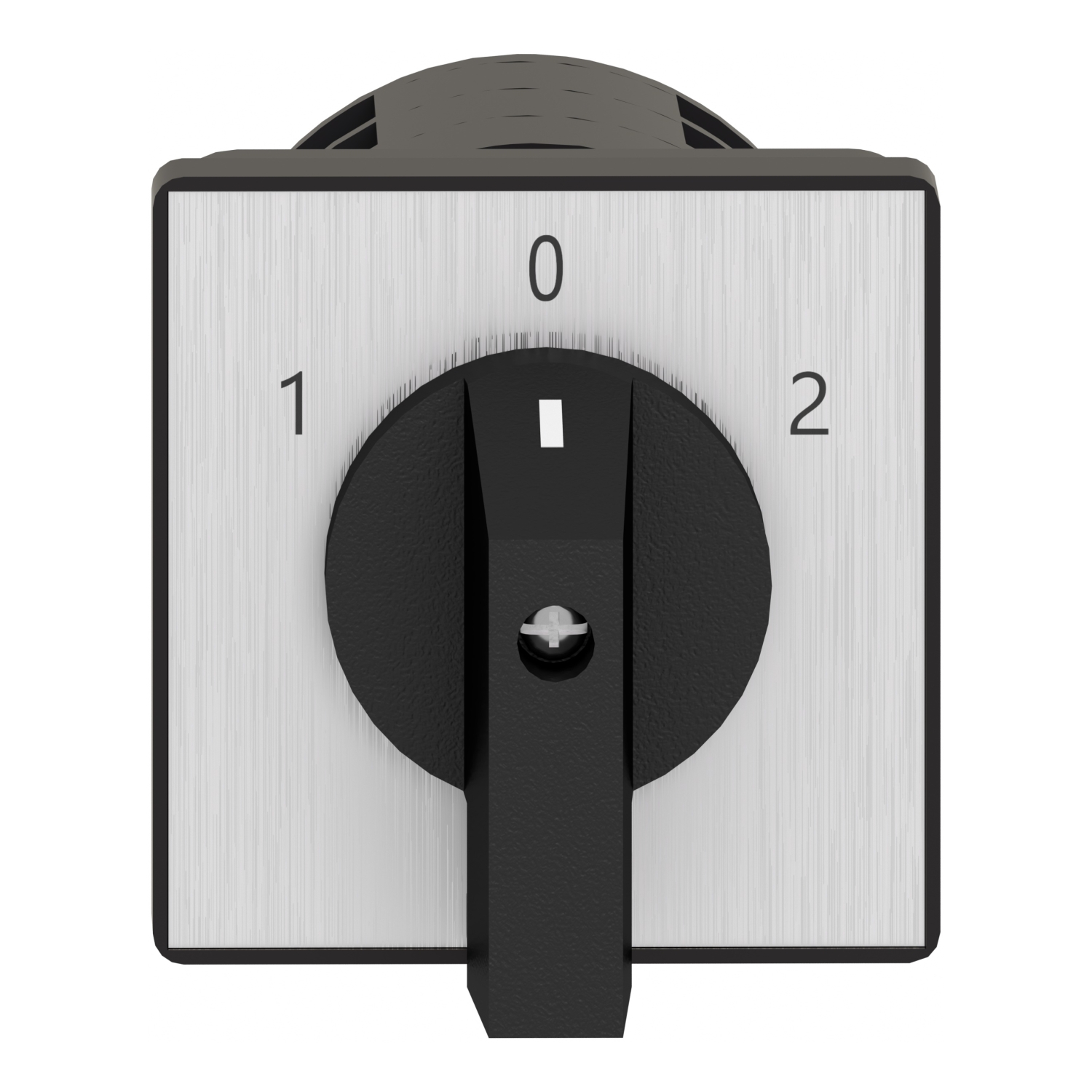

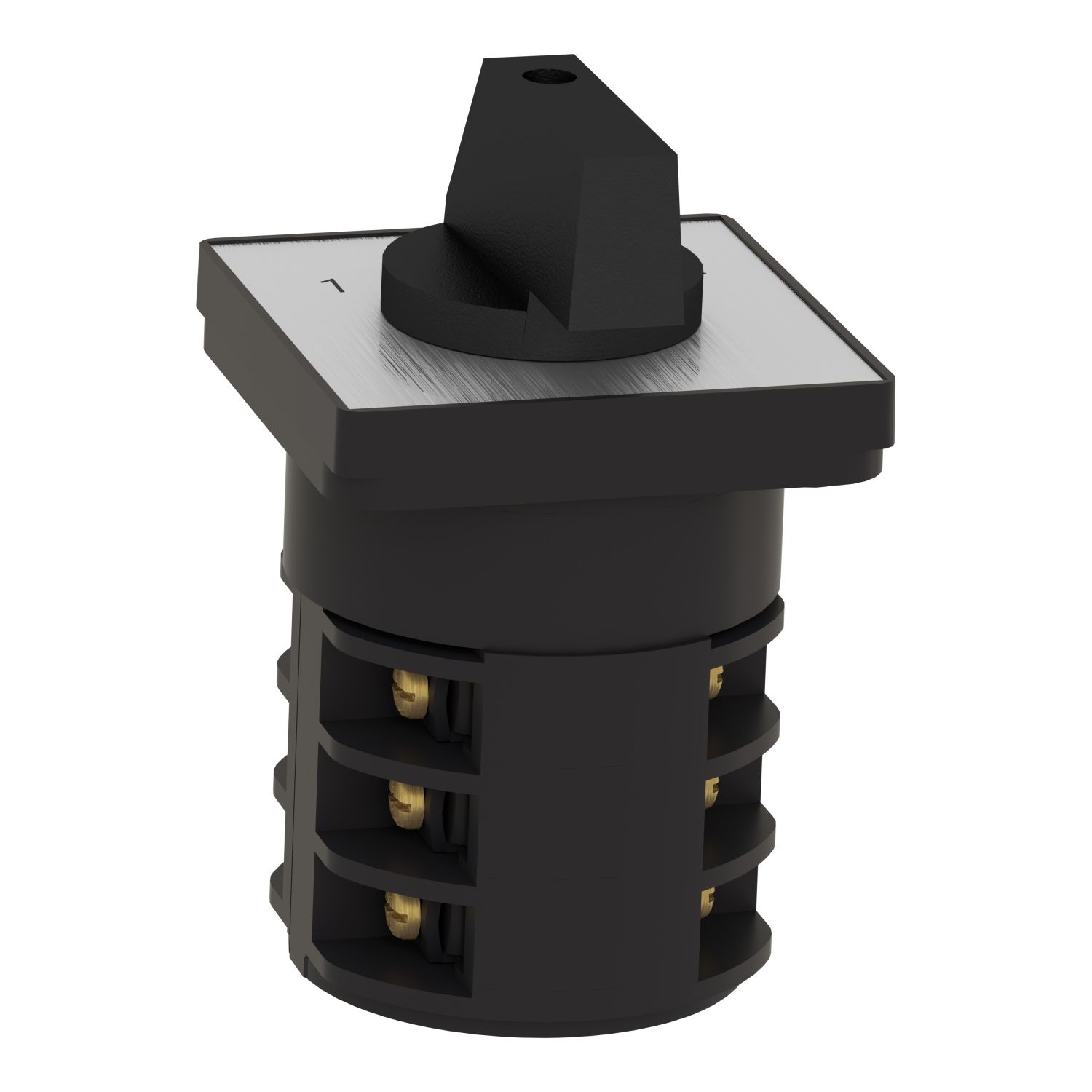

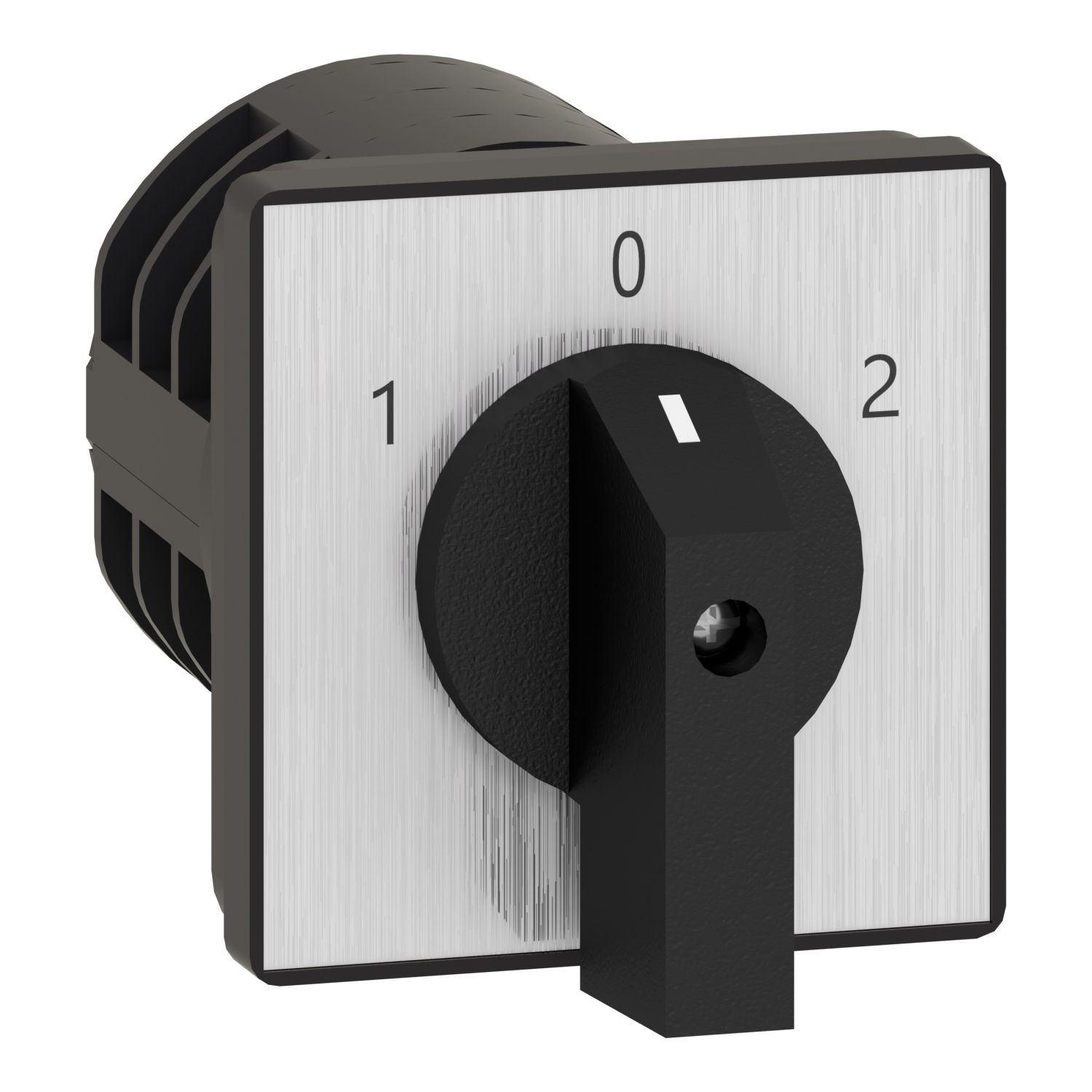

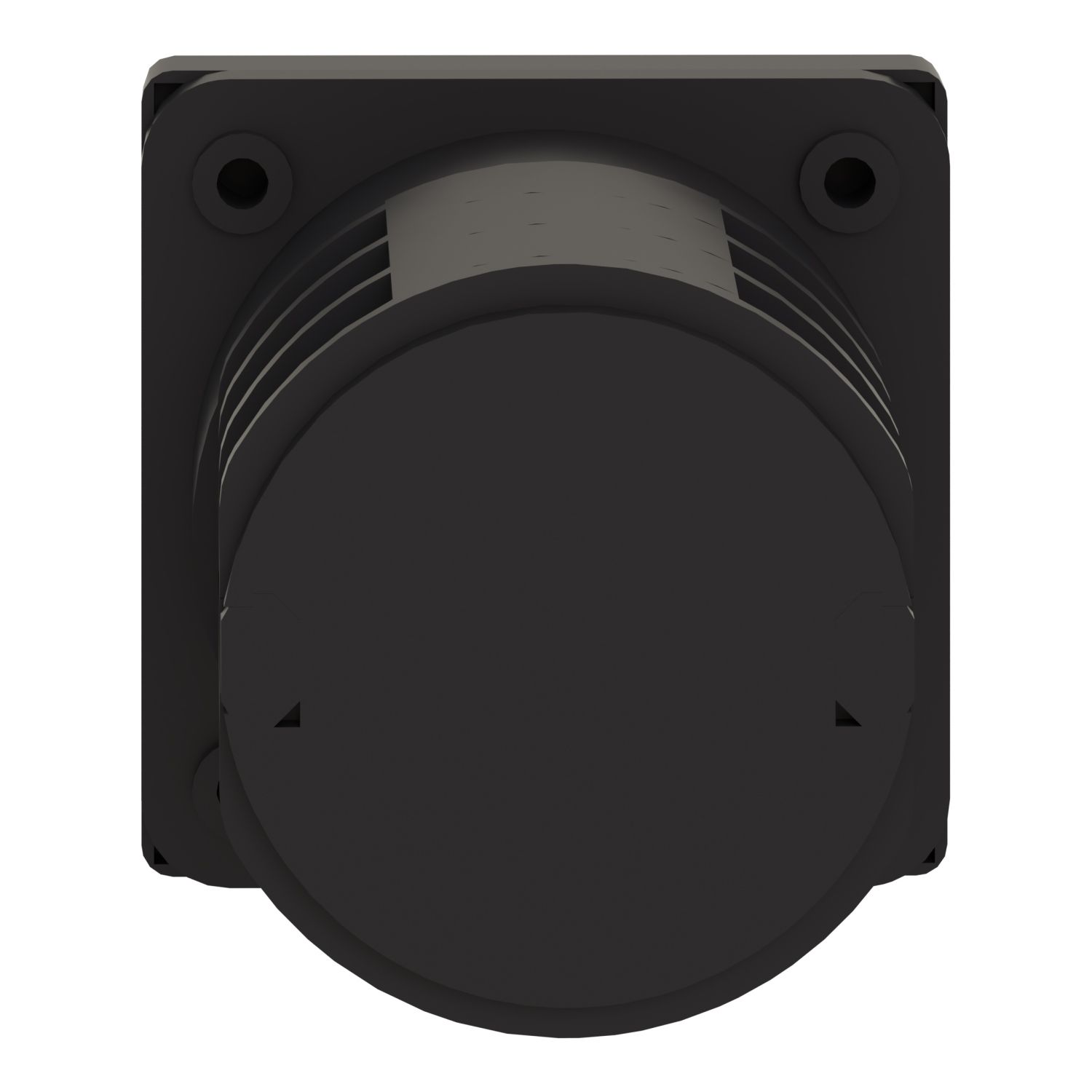

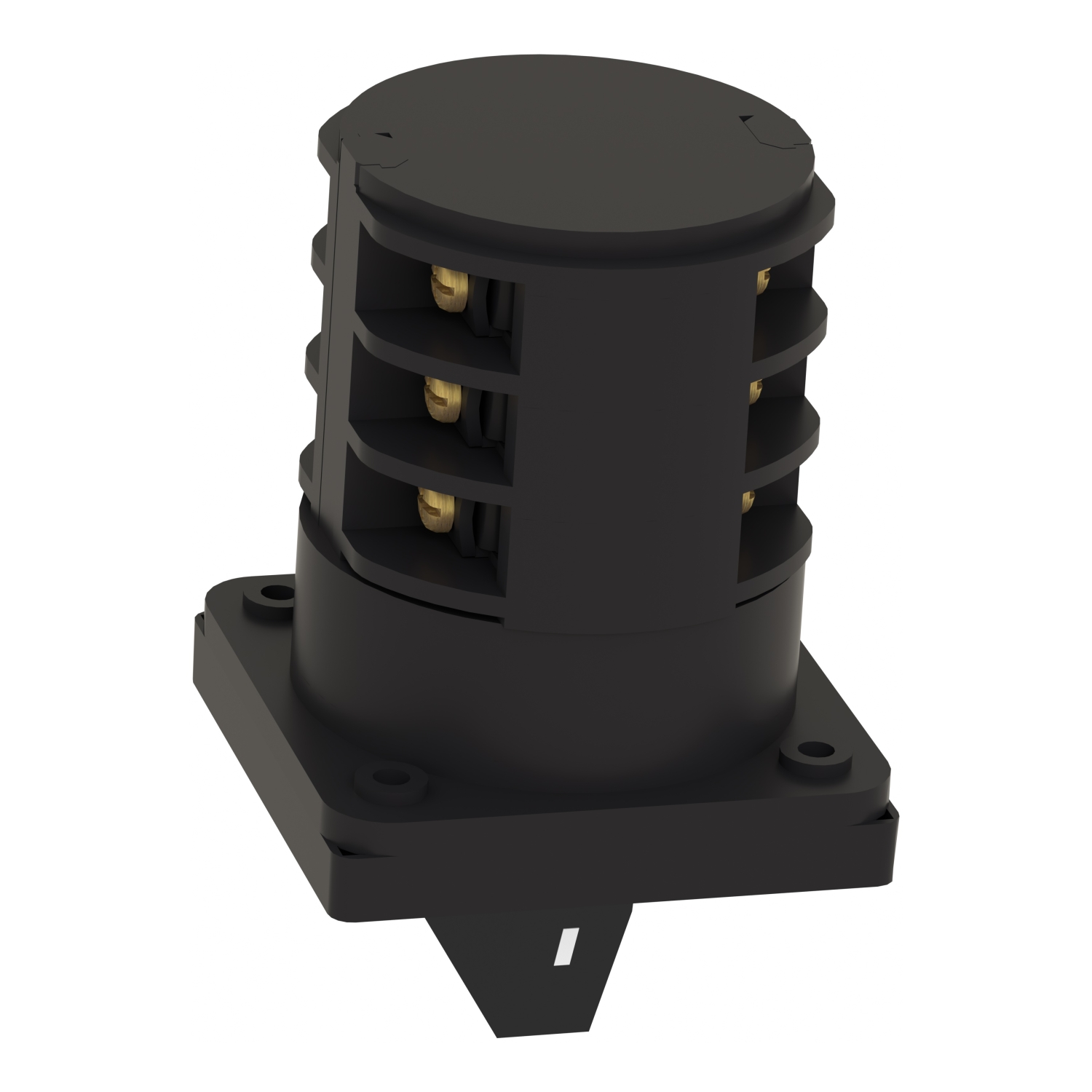

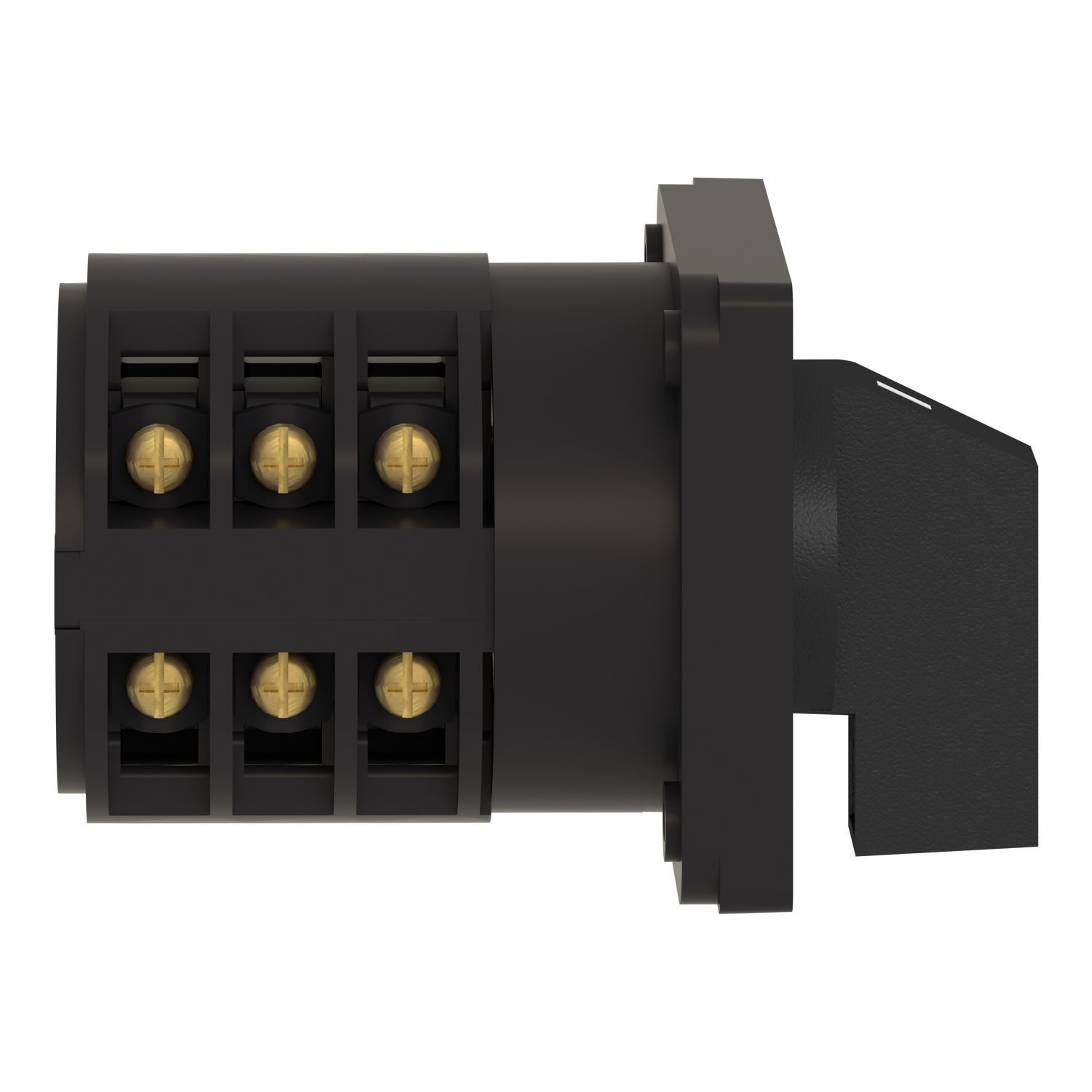

Picture of Cam changeover switch, Harmony K, front mounting, plastic, 3 poles,position 0 30°, 63A, 64x64mm front plate marqued 1/0/2
Picture of Cam changeover switch, Harmony K, front mounting, plastic, 3 poles,position 0 30°, 63A, 64x64mm front plate marqued 1/0/2
Picture of Cam changeover switch, Harmony K, front mounting, plastic, 3 poles,position 0 30°, 63A, 64x64mm front plate marqued 1/0/2
Picture of Cam changeover switch, Harmony K, front mounting, plastic, 3 poles,position 0 30°, 63A, 64x64mm front plate marqued 1/0/2
Picture of Cam changeover switch, Harmony K, front mounting, plastic, 3 poles,position 0 30°, 63A, 64x64mm front plate marqued 1/0/2
Picture of Cam changeover switch, Harmony K, front mounting, plastic, 3 poles,position 0 30°, 63A, 64x64mm front plate marqued 1/0/2
Picture of Cam changeover switch, Harmony K, front mounting, plastic, 3 poles,position 0 30°, 63A, 64x64mm front plate marqued 1/0/2
Picture of Cam changeover switch, Harmony K, front mounting, plastic, 3 poles,position 0 30°, 63A, 64x64mm front plate marqued 1/0/2
SKU:

K63F003UP

Cam changeover switch, Harmony K, front mounting, plastic, 3 poles,position 0 30°, 63A, 64x64mm front plate marqued 1/0/2

$448.22
Cam changeover switch, Harmony K, front mounting, plastic, 3 poles,position 0 30°, 63A, 64x64mm front plate marqued 1/0/2
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Catalogue
Instruction sheet
Image of product
Image of product
Image of product
Image of product
Declaration of conformity
Image of product
Image of product
Product Page Link
Product Data Sheet
This Harmony K63 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 63A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions.

Products specifications

Attribute nameAttribute value
Main
Off positionwith Off position
Returnwithout
Rotary handle padlockingwithout
Poles description3P
Cam switch head typewith front plate 64 x 64 mm
Switching positionsleft: 0° - 300°, right: 0° - 60°
Mounting locationfront
Type of operatorblack handle
Component nameK63
Cam switch functionchangeover switch
[Ith] conventional free air thermal current63 A
Product or component typecomplete cam switch
IP degree of protectionIP40 conforming to IEC 60529
Presentation of legendwith metallic legend, 1 - 0 - 2 black marking
Fixing mode4 holes
Range of productHarmony K
Complementary
CAD overall depth132 mm
CAD overall width64 mm
Switching capacity in mA63000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms), 63000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms), 63000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms), 63000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms), 55000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms), 55000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms), 55000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms), 30000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms), 30000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms), 30000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms), 20000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms), 20000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms), 20000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms)
Compatibility codeK63F
Mechanical durability300000 cycles
Contact operationslow-break
Tightening torque2.5 N.m
Positive openingwith
[Ui] rated insulation voltage690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current10000 A
Electrical connectioncaptive screw clamp terminals solid, clamping capacity: 2 x 16 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 10 mm²
Switching angle60 °
CAD overall height64 mm
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 947-1, 6 kV conforming to EN 947-1
Net weight0.59 kg
Short-circuit protection80 A cartridge fuse, type gG
Environment
Protective treatmentTC
Overvoltage categoryclass II conforming to NF C 20-030, class II conforming to IEC 60536
Ambient air temperature for storage-40-70 °C
StandardsIEC 60947-3
Product certificationscULus 240 V 10 hp 3 phases, cULus 240 V 7.5 hp 1 phase, cULus 480 V 25 hp 3 phases, cULus 120 V 3 hp 1 phase
Ambient air temperature for operation-25-55 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.700 cm
Package 1 Width7.200 cm
Package 1 Length7.200 cm
Package 1 Weight490.000 g
Unit Type of Package 22
Number of Units in Package 225
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight12.945 kg
