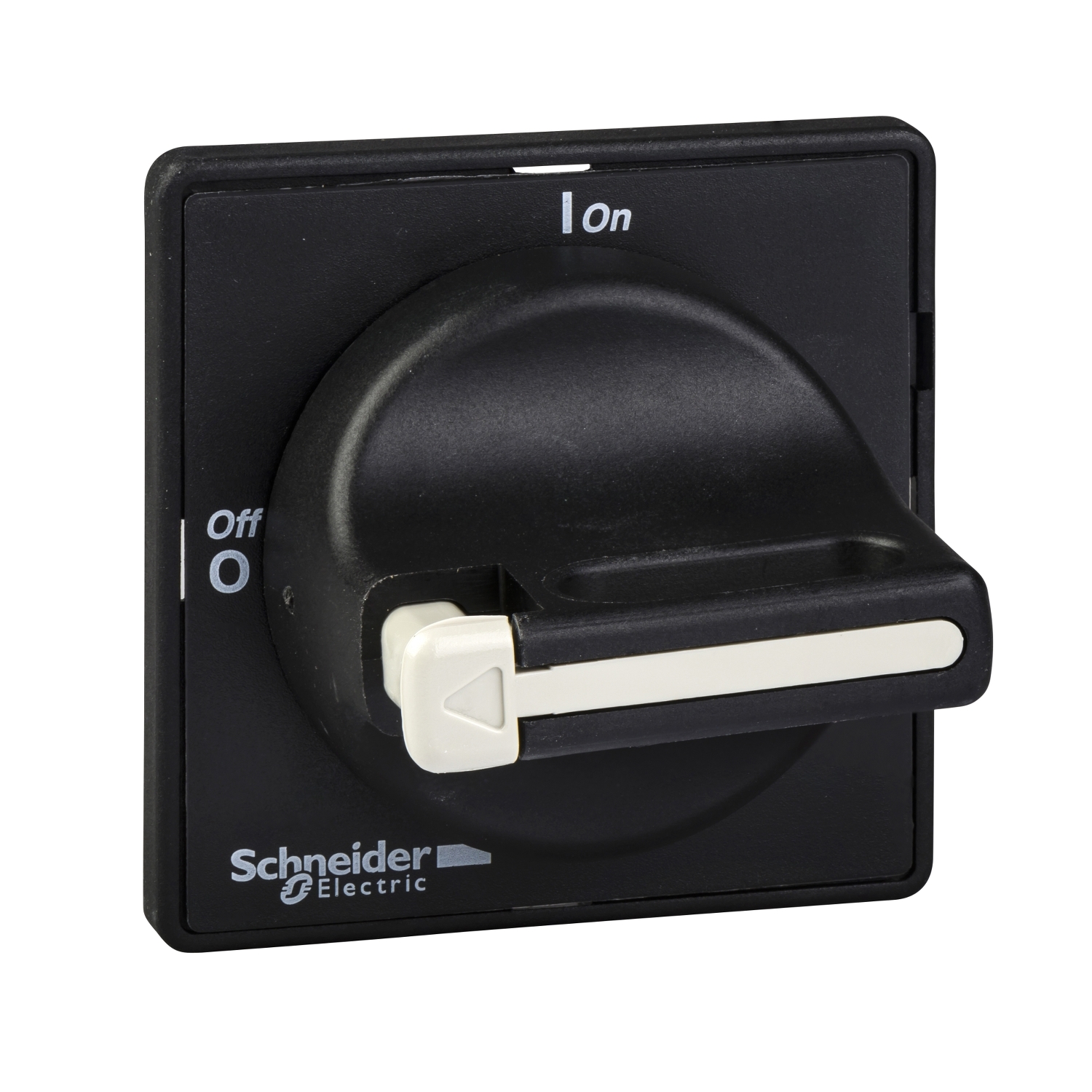

Picture of TeSys, TeSys VARIO / Mini VARIO - front and black rotary handle - 1 to 3 padlocking
SKU:

KAF1PZ

TeSys, TeSys VARIO / Mini VARIO - front and black rotary handle - 1 to 3 padlocking

$84.56
Available for Shipping : 17-Nov-2024
TeSys, TeSys VARIO / Mini VARIO - front and black rotary handle - 1 to 3 padlocking
  • High protection degree of waterproof and dustproof for harsh environment
  • Reliable operation with padlockable handle
  • It is Green Premium product as it is environmentally friendly
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
Product Page Link
Product Data Sheet
TeSys Vario operating handle, for TeSys Vario switch bodies VN12, VN20, V02 to V2. It provides a black handle and black front plate 60x60mm, for main switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name KAF1
Product compatibility V02...V2, VN12, VN20
Range TeSys
Product or component type rotary handle
Handle colour black
Complementary
Width 60 mm
Compatibility code KAF
Net weight 0.075 kg
Base dimension 60 x 60 mm
Marking 0 - 1
Fixing mode by 4 screws
Handle front plate colour black
Height 60 mm
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Environment
IP degree of protection IP65
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.800 cm
Package 1 Width 6.500 cm
Package 1 Length 6.500 cm
Package 1 Weight 69.000 g
Unit Type of Package 2 2
Number of Units in Package 2 45
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.671 kg
Unit Type of Package 3 3
Number of Units in Package 3 360
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 38.220 kg

Related products

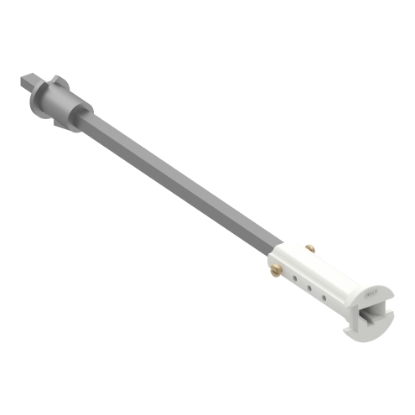

Picture of Shaft extension,TeSys Control,for VN12/VN20/V02-V2

Shaft extension,TeSys Control,for VN12/VN20/V02-V2

VZN17
$49.81
View Detail
Picture of TeSys, TeSys Mini-VARIO and VARIO - door interlock - set of 5

TeSys, TeSys Mini-VARIO and VARIO - door interlock - set of 5

KZ32
$19.06
View Detail
Picture of Harmony K, IP 65 seal , for 60 x 60 mm front plate and front mounting cam switch, set of 5

Harmony K, IP 65 seal , for 60 x 60 mm front plate and front mounting cam switch, set of 5

KZ66
$12.43
View Detail

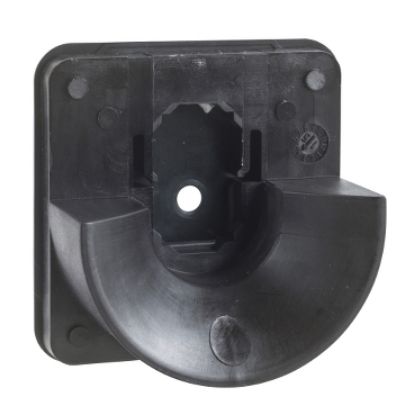

Picture of Mounting plate for handle,TeSys Control,for door mounting of handles with 4 screw fixing,set of 5,for VN12/VN20/V02-V2

Mounting plate for handle,TeSys Control,for door mounting of handles with 4 screw fixing,set of 5,for VN12/VN20/V02-V2

KZ83
$58.15
View Detail

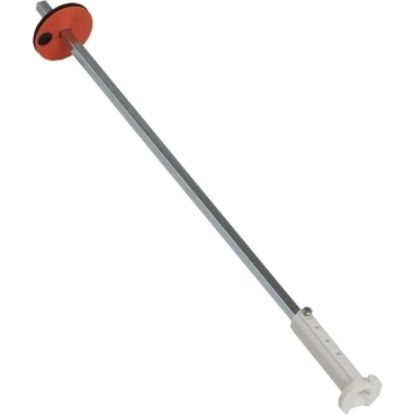

Picture of TeSys, TeSys VARIO - shaft extension - for V02...V2

TeSys, TeSys VARIO - shaft extension - for V02...V2

VZ17
$71.40
View Detail

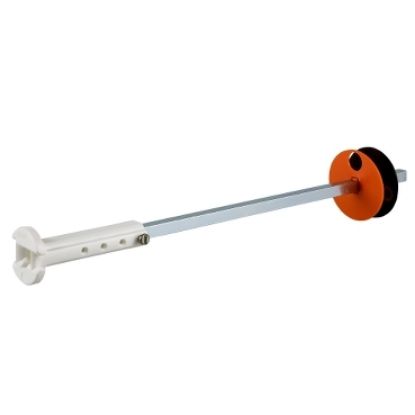

Picture of TeSys, TeSys VARIO - shaft extension - for V02...V2
