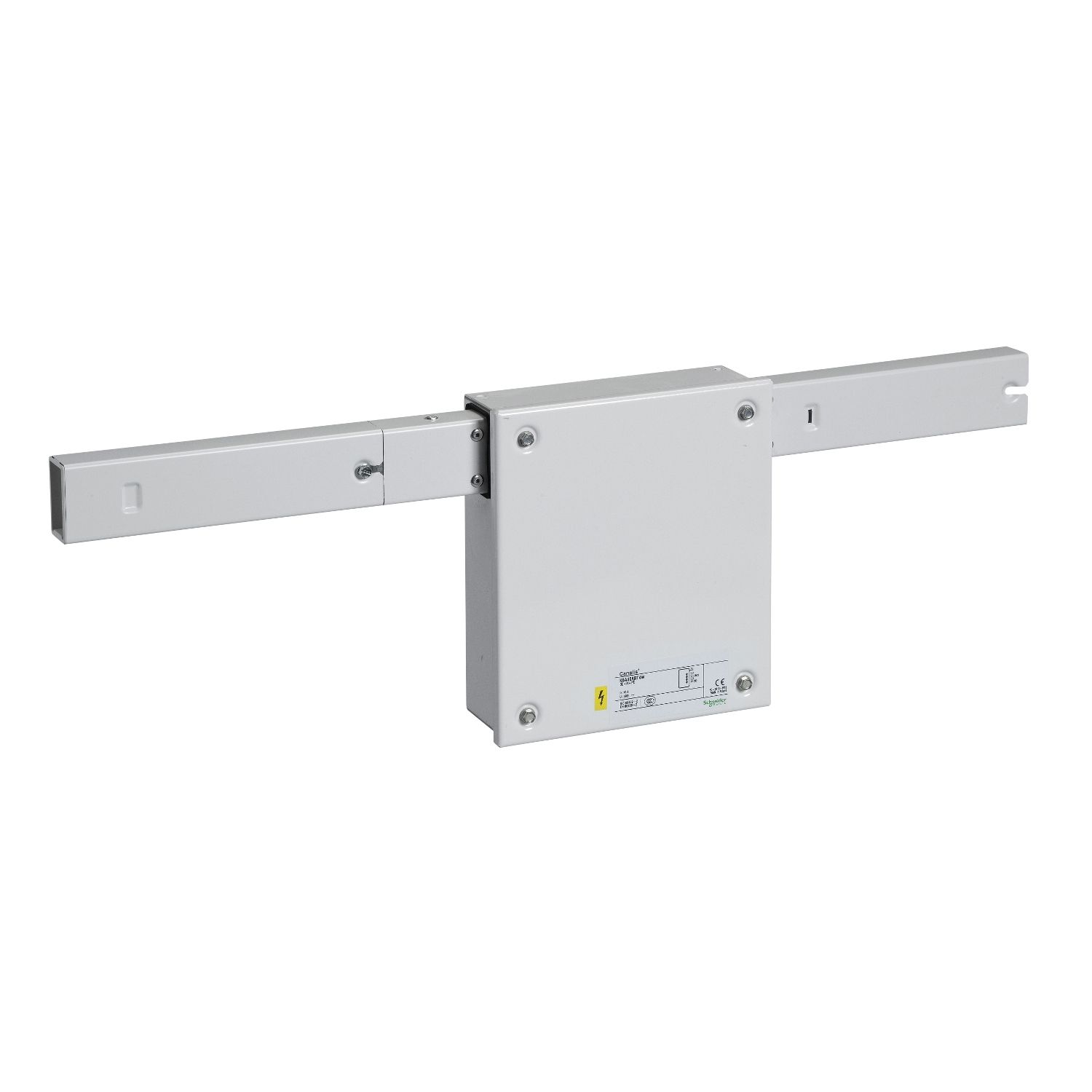

Picture of End feed unit, Canalis KBA, 25/40A, central mounting, 1 circuit, compatible DALI, white RAL9003
SKU:

KBA40ABT4W

End feed unit, Canalis KBA, 25/40A, central mounting, 1 circuit, compatible DALI, white RAL9003

$616.36 INC GST
Available for Shipping : 09-Sep-2025
End feed unit, Canalis KBA, 25/40A, central mounting, 1 circuit, compatible DALI, white RAL9003
  • Suitable for lighting systems in buildings with small to medium heights
  • Engineered for dismantling, reuse, and full recyclability
  • System designed to be modular and easily upgradable
  • Supports DALI and KNX communication protocols
  • Quick and hassle-free installation process
  • Offers a high IP 55 protection rating, adaptable for any building type
  • Contains halogen-free materials, ensuring zero toxic fumes during a fire
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

This end feed unit (KBA40ABT4W) is designed for the Canalis KBA busbar trunking, which is perfect for distributing lighting and power sockets. It supports a rated current of 40A at 35°C and works with voltages from 230VAC to 400VAC at 50/60Hz. This unit acts as the central mounting piece and clips onto the trunking on both sides. It can accept power cables with a maximum cross-section of 10 mm² and a maximum diameter of 19 mm (PG 21).

The unit includes 1 electrical circuit with 3L+N+PE polarity. It’s rated IP55 (according to IEC 60529), offering solid protection against dust and water splashes. It also has IK06 protection (IEC 62262), which means it’s resistant to external impacts. The unit measures 562 mm in length and 78.5 mm x 75.5 mm in size, and is made from white lacquered sheet steel (RAL 9003).

The Canalis KBA system meets the IEC/EN 61439-6 standard, and this feed unit is non-flame propagating as per IEC 60332-3. Additionally, all insulating and plastic materials are halogen-free and offer excellent fire resistance (as per IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...400 V
Device short name KBA
Colour white (RAL 9003)
Protection type without protection
Communication port protocol DALI
[Ie] rated operational current 25 A, 40 A
Busbar trunking polarity L + N + PE, 3L + N + PE
Control type communicating
Range Canalis
Material aluminium
Number of circuits 1
Product or component type feed unit
Product compatibility Canalis KBA busbar trunking 25-40 A
Offer type control system, classic
Range of product Canalis
Complementary
Depth 75.5 mm
Width 562 mm
Provided equipment end cover
Mounting mode by screws
Mounting location central
Net weight 500 g
Mounting support busbar
Connections - terminals terminal block - Pg 21 - screw clamp connector for 10-10 mm²
Standards IEC 61439-6
Height 75.5 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 22.0 cm
Package 1 Length 64.0 cm
Package 1 Weight 2.7 kg
Unit Type of Package 2 2
Number of Units in Package 2 22
Package 2 Height 80.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 67.9 kg
