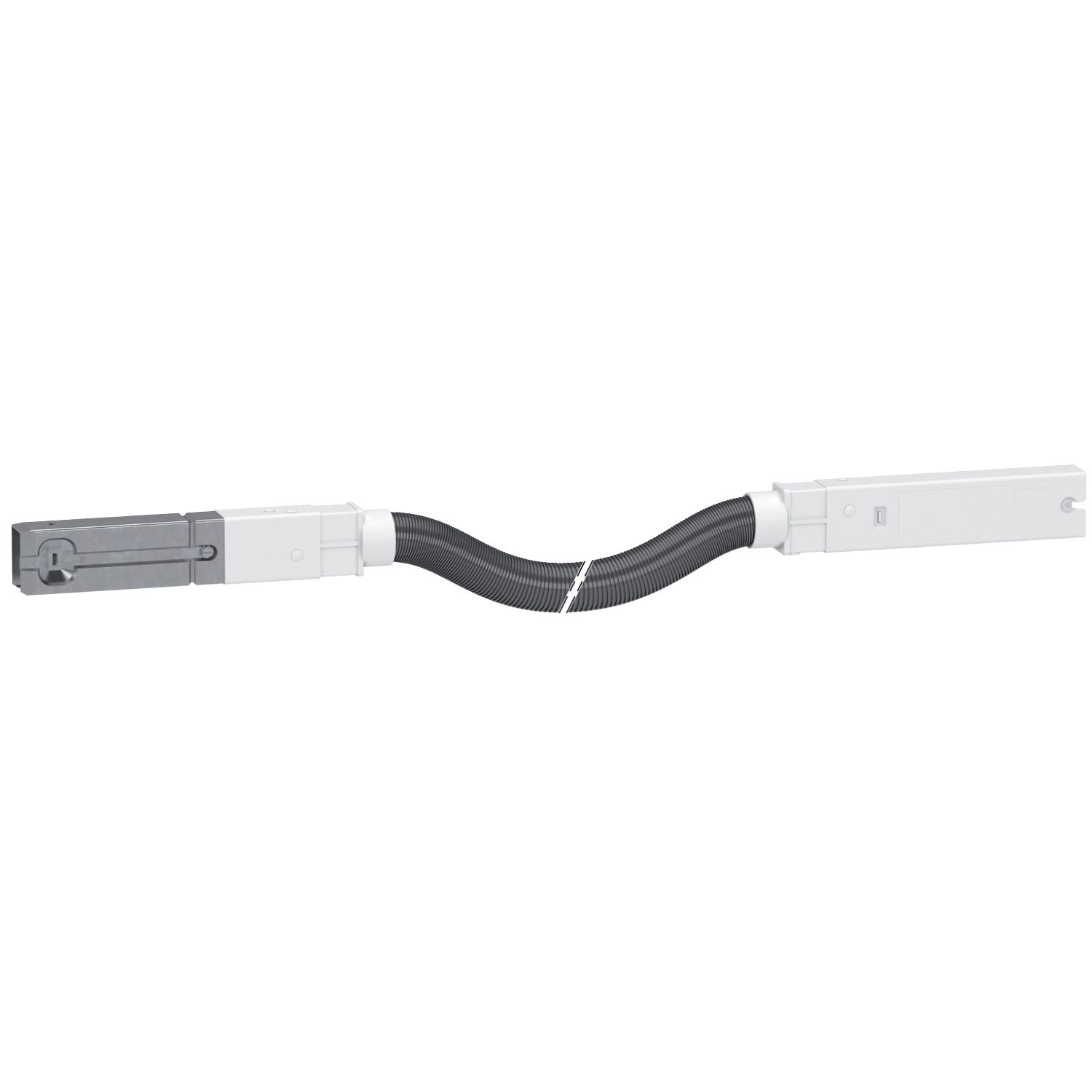

Picture of Flexible length, Canalis KBA, 25/40A, 1 circuit, 3L+N+PE, 2m, compatible with DALI protocol, white RAL9003
SKU:

KBA40DF420W

Flexible length, Canalis KBA, 25/40A, 1 circuit, 3L+N+PE, 2m, compatible with DALI protocol, white RAL9003

$320.12
Available for Shipping : 27-Feb-2025
Flexible length, Canalis KBA, 25/40A, 1 circuit, 3L+N+PE, 2m, compatible with DALI protocol, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

This is a flexible length for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. It embeds 1 electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The flexible length is 2m, and the section is 46mm x 46mm. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...400 V
Device short name KBA
Device application power socket distribution, lighting
Colour white (RAL 9003)
Busbar description flexible length
Communication port protocol DALI
[Ie] rated operational current 25 A, 40 A at 35 °C
Busbar trunking polarity 3L + N + PE
Control type communicating
Range Canalis
Direction change type 3 dimensions
Number of circuits 1
Product name KBA
Product or component type flexible element
Offer type control system, classic
Range of product Canalis
Network frequency 50/60 Hz
Complementary
[Ipk] rated peak withstand current 9.6 kA
Depth 30 mm
Mounting mode by clips
Thermal stress limit 900 kA².s
Net weight 105 g
Length 2 m
Maximum radiated magnetic field 2 pT
[Ui] rated insulation voltage 690 V
THDI 33-100 % 28 A, 15-33 % 32 A, 0-15 % 40 A
[Uimp] rated impulse withstand voltage 4 kV
Standards IEC 61439-6, IEC 61439-1
Height 46 mm
[Icw] rated short-time withstand current 0.94 kA
Environment
IP degree of protection IP55 conforming to IEC 60529
Ambient air temperature for operation 0-35 °C without derating
IK degree of protection IK06 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.300 cm
Package 1 Width 44.000 cm
Package 1 Length 61.000 cm
Package 1 Weight 1.648 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 41.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 29.000 kg
