Picture of Straight length, Canalis KBA, 25/40A, 1 circuit, 3L+N+PE, compatible DALI, 3 outlets, 2m, white RAL9003
SKU:

KBA40ED4203W

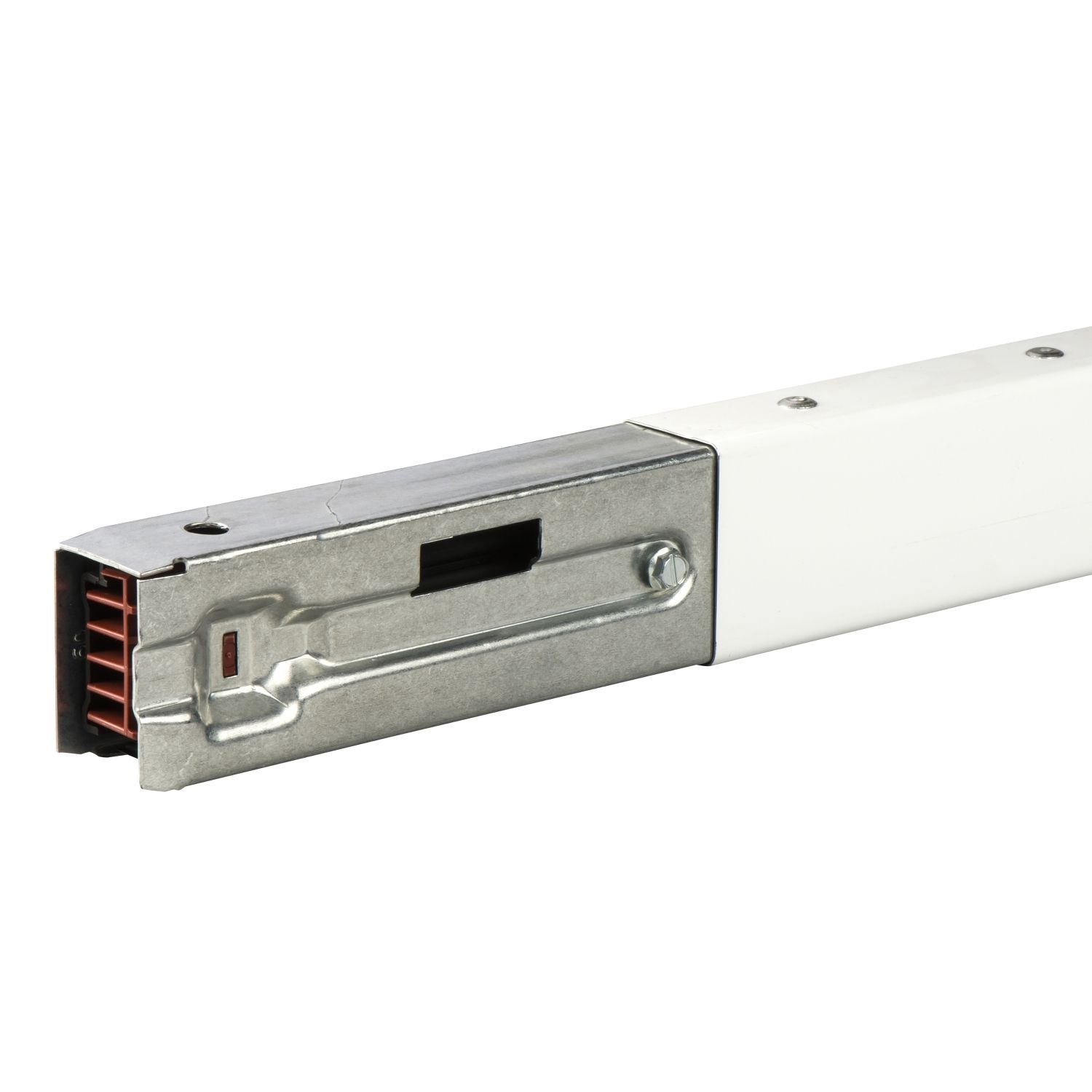

Straight length, Canalis KBA, 25/40A, 1 circuit, 3L+N+PE, compatible DALI, 3 outlets, 2m, white RAL9003

$138.83
Straight length, Canalis KBA, 25/40A, 1 circuit, 3L+N+PE, compatible DALI, 3 outlets, 2m, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This is a straight length for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 3 tap-off outlets maximum spaced every meter on the main circuit (front). It embeds 1 electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 2m, and the section is 30mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute nameAttribute value
Main
[Ue] rated operational voltage230...400 V
Device short nameKBA
Device applicationpower socket distribution, lighting
Product compatibilityKBA
Number of tap-off outlets3
Busbar descriptiondistribution length
Mounting modeby clips
Communication port protocolDALI
[Ie] rated operational current25 A at 35 °C, 40 A at 35 °C
Busbar trunking polarity3L + N + PE
Control typecommunicating
RangeCanalis
Number of circuits1
Product or component typestraight length
Offer typecontrol system, classic
Range of productCanalis
Network frequency50/60 Hz
Complementary
[Ipk] rated peak withstand current9.6 kA
Width30 mm
Colourwhite (RAL 9003)
Thermal stress limit900 kA².s
Maximum voltage drop<0.22 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.25 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.28 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.3 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight1.9 kg
Length2 m
Maximum radiated magnetic field2 pT
[Ui] rated insulation voltage690 V
Linear resistance8.7 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 6.91 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 6.91 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 7.66 mΩ/m Rb0 20 °C impedance method Ph/PE, 19.41 mΩ/m Z0 20 °C symmetrical components method Ph/N, 0.38 mΩ/m X0 20 °C symmetrical components method Ph/N, 19.4 mΩ/m R0 20 °C symmetrical components method Ph/N, 0.035 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 1.57 mΩ/m protective conductor, 0.9 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 0.9 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 5.68 mΩ/m Rb0 20 °C impedance method Ph/N, 5.68 mΩ/m Rb0 20 °C impedance method Ph/Ph, 13.85 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 0.73 mΩ/m X0 20 °C symmetrical components method Ph/PE, 13.83 mΩ/m R0 20 °C symmetrical components method Ph/PE, 3.46 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 3.46 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 2.83 mΩ/m R20 20 °C phase conductor, 0.02 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor
THDI33-100 % 28 A, 15-33 % 32 A, 0-15 % 40 A
[Uimp] rated impulse withstand voltage4 kV
StandardsEN/IEC 61439-1, EN/IEC 61439-6
Height46 mm
[Icw] rated short-time withstand current0.94 kA
Environment
IP degree of protectionIP55 conforming to EN/IEC 60529
Ambient air temperature for operation50-55 °C (85 % of In), 45-50 °C (89 % of In), 40-45 °C (93 % of In), 35-40 °C (96 % of In), 0-35 °C (100 % of In)
IK degree of protectionIK06 conforming to EN/IEC 62262
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.600 cm
Package 1 Width3.000 cm
Package 1 Length200.000 cm
Package 1 Weight2.200 kg
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height10.500 cm
Package 2 Width10.500 cm
Package 2 Length219.000 cm
Package 2 Weight14.000 kg
Unit Type of Package 33
Number of Units in Package 3144
Package 3 Height53.000 cm
Package 3 Width64.000 cm
Package 3 Length220.000 cm
Package 3 Weight327.000 kg
