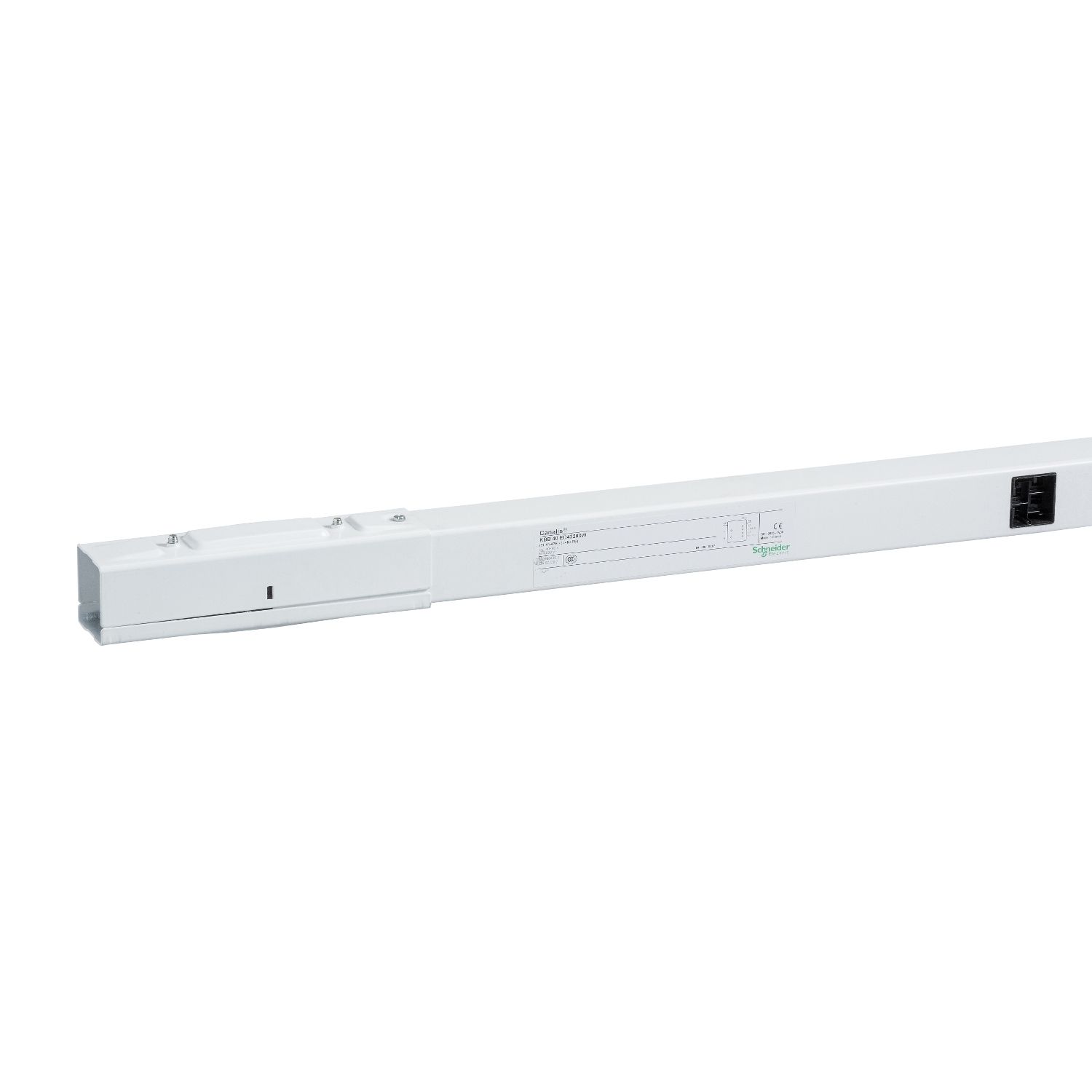

Picture of Straight length, Canalis KBB, 25A, 2 circuits, L+N+PE, no outlet, 3m, white RAL9003
SKU:

KBB25ED22300W

Straight length, Canalis KBB, 25A, 2 circuits, L+N+PE, no outlet, 3m, white RAL9003

$159.20
Straight length, Canalis KBB, 25A, 2 circuits, L+N+PE, no outlet, 3m, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 15-Jan-2025
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This is a straight length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 25A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. There is no tap-off outlet. It embeds 2 independent electrical circuits with L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 3m, and the section is 46mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute nameAttribute value
Main
[Ue] rated operational voltage230...400 V
Device short nameKBB
Device applicationlighting, power socket distribution
Product compatibilityKBB
Number of tap-off outlets0
Busbar descriptiondistribution length
Mounting modeby screws
[Ie] rated operational current25 A at 35 °C
Busbar trunking polarityL + N + PE
Control typewithout
RangeCanalis
Number of circuits2
Product or component typestraight length
Offer typeclassic
Range of productCanalis
Network frequency50/60 Hz
Complementary
[Ipk] rated peak withstand current4.4 kA
Width30 mm
Colourwhite (RAL 9003)
Thermal stress limit195 kA².s
Maximum voltage drop<0.55 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.61 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.67 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.72 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight4.6 kg
Length3 m
Maximum radiated magnetic field2 pT
[Ui] rated insulation voltage690 V
Linear resistance0.07 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 0.35 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 0.35 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 11.77 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 16.59 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 16.59 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 10.26 mΩ/m Rb0 20 °C impedance method Ph/PE, 18.06 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 5.25 mΩ/m X0 20 °C symmetrical components method Ph/PE, 17.28 mΩ/m R0 20 °C symmetrical components method Ph/PE, 0.8 mΩ/m protective conductor, 13.61 mΩ/m Rb0 20 °C impedance method Ph/N, 13.61 mΩ/m Rb0 20 °C impedance method Ph/Ph, 27.22 mΩ/m Z0 20 °C symmetrical components method Ph/N, 0.85 mΩ/m X0 20 °C symmetrical components method Ph/N, 27.21 mΩ/m R0 20 °C symmetrical components method Ph/N, 8.33 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 0.02 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor, 8.3 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 6.8 mΩ/m R20 20 °C phase conductor
THDI33-100 % 16 A, 15-33 % 20 A, 0-15 % 25 A
[Uimp] rated impulse withstand voltage4 kV
StandardsEN/IEC 61439-1, EN/IEC 61439-6
Height46 mm
[Icw] rated short-time withstand current0.44 kA
Environment
IP degree of protectionIP55 conforming to EN/IEC 60529
Ambient air temperature for operation50-55 °C (85 % of In), 45-50 °C (89 % of In), 40-45 °C (93 % of In), 35-40 °C (96 % of In), 0-35 °C (100 % of In)
IK degree of protectionIK06 conforming to EN/IEC 62262
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.0 cm
Package 1 Width5.1 cm
Package 1 Length310.0 cm
Package 1 Weight4.9 kg
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height13.0 cm
Package 2 Width16.0 cm
Package 2 Length314.0 cm
Package 2 Weight30.4 kg
