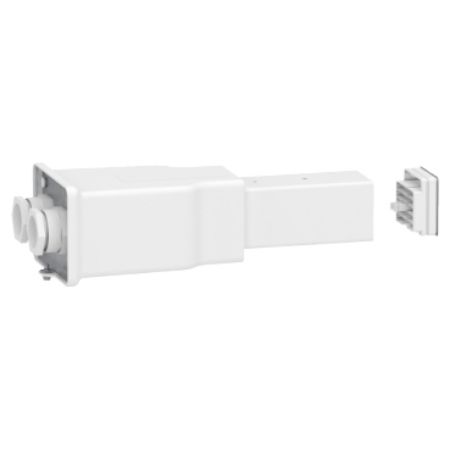

Picture of End feed unit, Canalis KBB, 25/40A, right or left mounting, 2 circuits, compatible DALI, white RAL9003
SKU:

KBB40ABG44W

End feed unit, Canalis KBB, 25/40A, right or left mounting, 2 circuits, compatible DALI, white RAL9003

$154.02
Availability: Please contact our sales team on 1300 724 622.
End feed unit, Canalis KBB, 25/40A, right or left mounting, 2 circuits, compatible DALI, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet

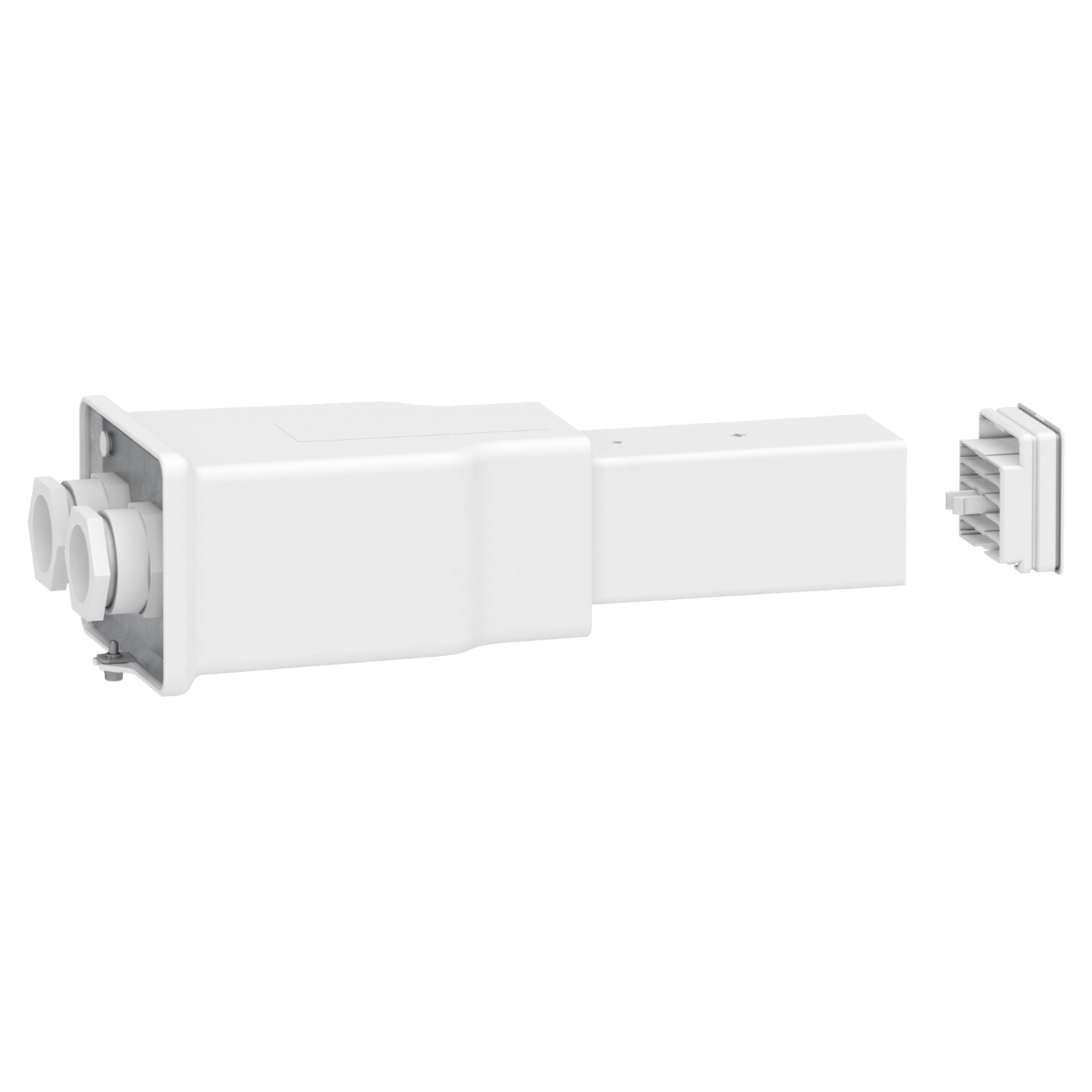

This is a feed unit for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This element is clipped on the left end of the line, and end cover is provided and should be clipped on the opposite side of the line. It receives power cables with 6 to 10 mm² cross section and a maximum diameter of 19 mm (PG 21). It embeds 2 independent electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 244mm, and the section is 103.5mm x 75.5mm. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...400 V
Device short name KBB
Colour white (RAL 9003)
Protection type without protection
Communication port protocol DALI
[Ie] rated operational current 25 A, 40 A
Busbar trunking polarity L + N + PE, 3L + N + PE
Control type communicating
Range Canalis
Material aluminium
Number of circuits 2
Product or component type feed unit
Product compatibility Canalis KBB busbar trunking 25-40 A
Offer type control system, classic
Range of product Canalis
Complementary
Depth 103.5 mm
Width 244 mm
Provided equipment end cover
Mounting mode by clips
Mounting location left
Net weight 400 g
Mounting support busbar
Connections - terminals terminal block - Pg 21 - screw clamp connector for 6-10 mm²
Standards IEC 61439-6
Height 75.5 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 11.0 cm
Package 1 Length 27.0 cm
Package 1 Weight 700.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.556 kg
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 75.7 kg
