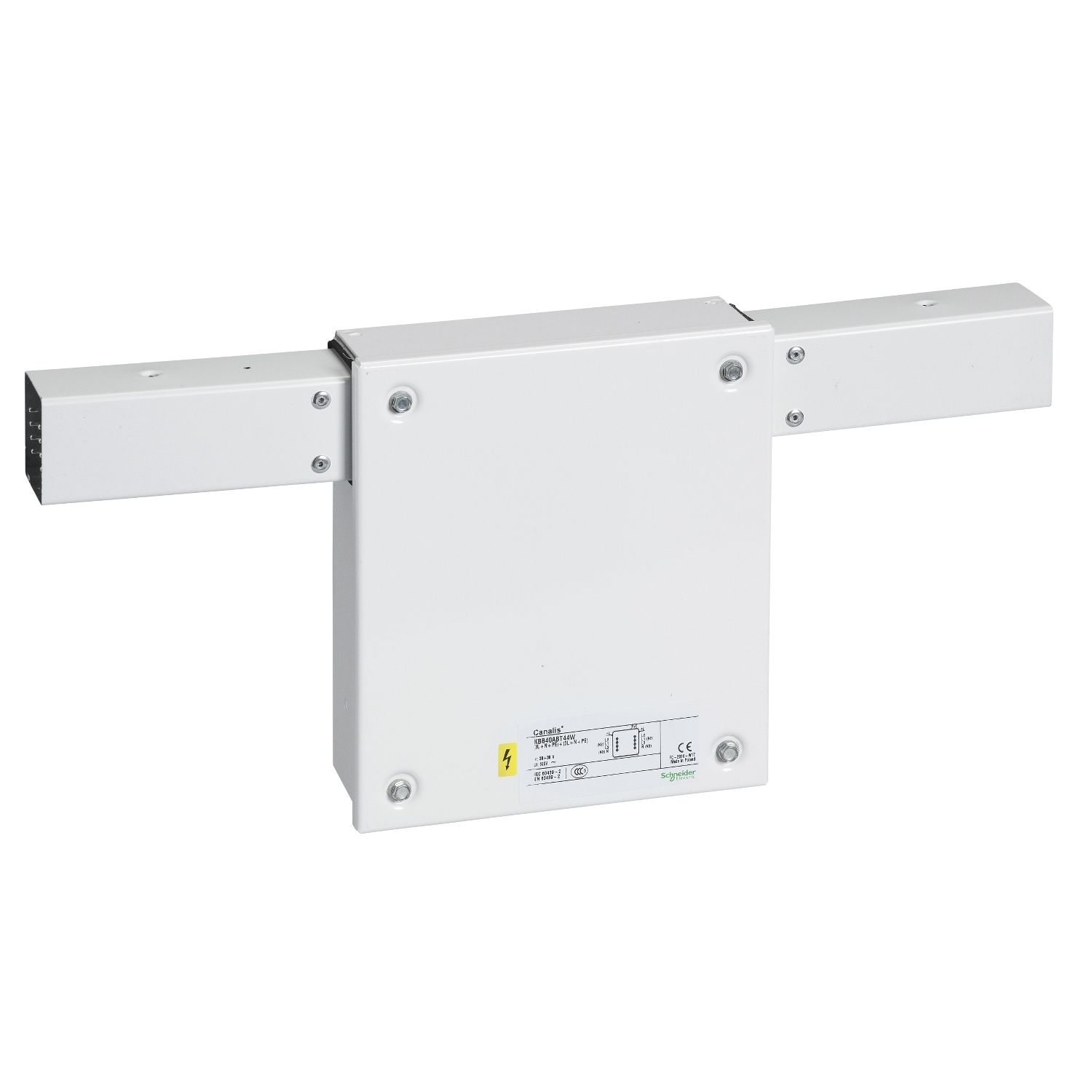

Picture of End feed unit, Canalis KBB, 25/40A, central mounting, 2 circuits, compatible DALI, white RAL9003
SKU:

KBB40ABT44W

End feed unit, Canalis KBB, 25/40A, central mounting, 2 circuits, compatible DALI, white RAL9003

$1,098.20
End feed unit, Canalis KBB, 25/40A, central mounting, 2 circuits, compatible DALI, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 19-Jan-2025
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This is a feed unit for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This feed unit is a central mounting element, it is clipped on the lines on both sides. It receives power cables with 6 to 10 mm² cross section and a maximum diameter of 19 mm (PG 21). It embeds 2 independent electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 427mm, and the section is 46mm x 46mm. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute nameAttribute value
Main
[Ue] rated operational voltage230...400 V
Device short nameKBB
Colourwhite (RAL 9003)
Protection typewithout protection
Communication port protocolDALI
[Ie] rated operational current25 A, 40 A
Busbar trunking polarityL + N + PE, 3L + N + PE
Control typecommunicating
RangeCanalis
Materialaluminium
Number of circuits2
Product or component typefeed unit
Product compatibilityCanalis KBB busbar trunking 25-40 A
Offer typecontrol system, classic
Range of productCanalis
Complementary
Depth103.5 mm
Width244 mm
Provided equipmentend cover
Mounting modeby clips
Mounting locationcentral
Net weight500 g
Mounting supportbusbar
Connections - terminalsterminal block - Pg 21 - screw clamp connector for 6-10 mm²
StandardsIEC 61439-6
Height75.5 mm
Environment
IP degree of protectionIP55 conforming to IEC 60529
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.0 cm
Package 1 Width22.0 cm
Package 1 Length64.0 cm
Package 1 Weight3.25 kg
Unit Type of Package 22
Number of Units in Package 222
Package 2 Height80.0 cm
Package 2 Width80.0 cm
Package 2 Length60.0 cm
Package 2 Weight80.0 kg
