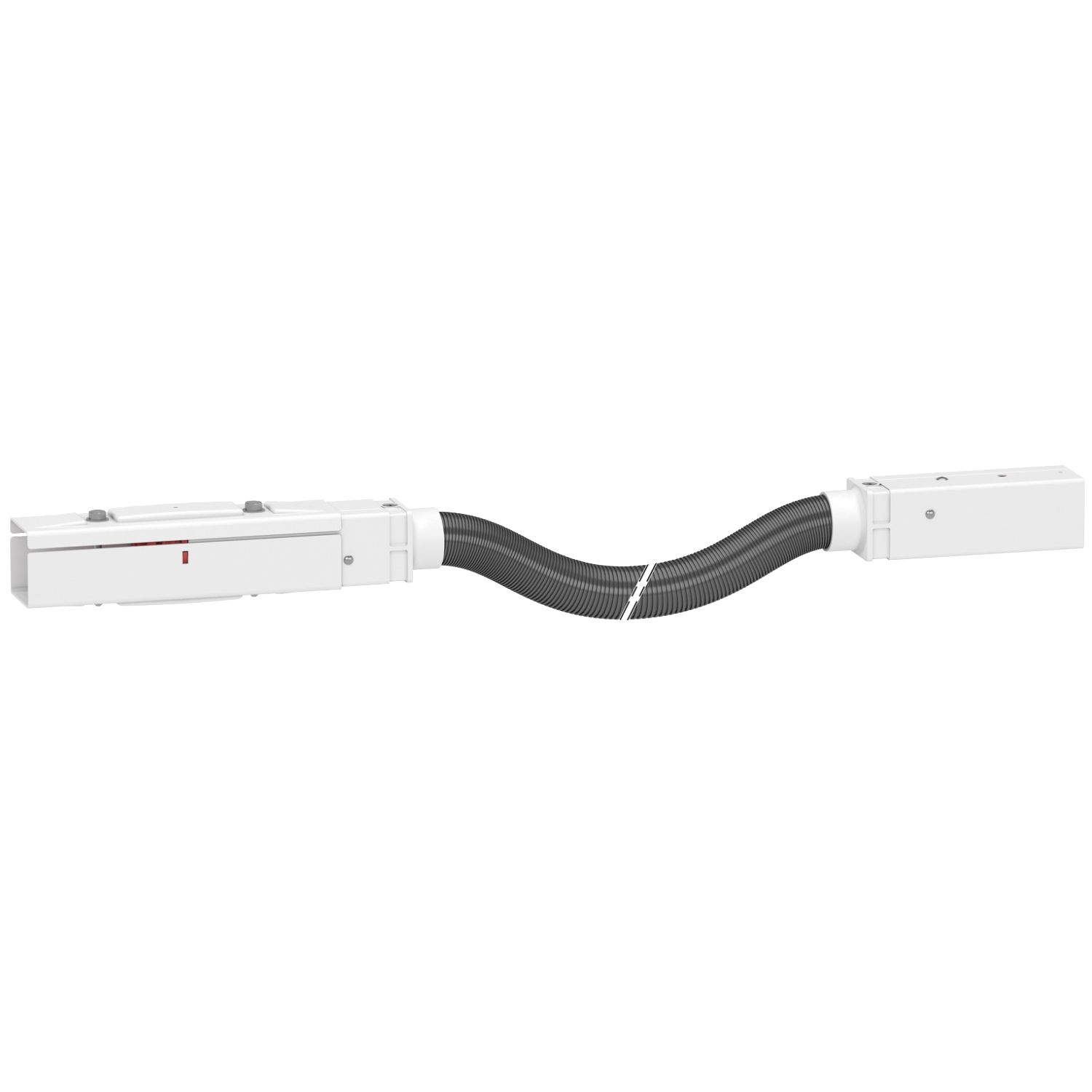

Picture of Flexible length, Canalis KBB, 25/40A, 1 circuit, L+N+PE/3L+N+PE, 2m, compatible with DALI protocol, white RAL9003
SKU:

KBB40DF420W

Flexible length, Canalis KBB, 25/40A, 1 circuit, L+N+PE/3L+N+PE, 2m, compatible with DALI protocol, white RAL9003

$353.58
Available for Shipping : 18-Feb-2025
Flexible length, Canalis KBB, 25/40A, 1 circuit, L+N+PE/3L+N+PE, 2m, compatible with DALI protocol, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This is a flexible length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. It embeds 1 electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The flexible length is 2m, and the section is 46mm x 46mm. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...400 V
Device short name KBB
Device application power socket distribution, lighting
Colour white (RAL 9003)
Busbar description flexible length
Communication port protocol DALI
[Ie] rated operational current 25 A at 35 °C, 40 A at 35 °C
Busbar trunking polarity 3L + N + PE, L + N + PE
Control type communicating
Range Canalis
Direction change type 3 dimensions
Number of circuits 1
Product name KBB
Product or component type flexible element
Offer type control system, classic
Range of product Canalis
Network frequency 50/60 Hz
Complementary
[Ipk] rated peak withstand current 9.6 kA
Depth 51 mm
Mounting mode by clips
Thermal stress limit 900 kA².s
Net weight 1.9 kg
Length 2 m
Maximum radiated magnetic field 2 pT
[Ui] rated insulation voltage 690 V
THDI 33-100 % 28 A, 15-33 % 32 A, 0-15 % 40 A
[Uimp] rated impulse withstand voltage 4 kV
Standards IEC 61439-6, IEC 61439-1
Height 60 mm
[Icw] rated short-time withstand current 0.94 kA
Environment
IP degree of protection IP55 conforming to IEC 60529
Ambient air temperature for operation 0-35 °C without derating
IK degree of protection IK06 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 44.0 cm
Package 1 Length 61.0 cm
Package 1 Weight 2.2 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 50.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 30.5 kg
