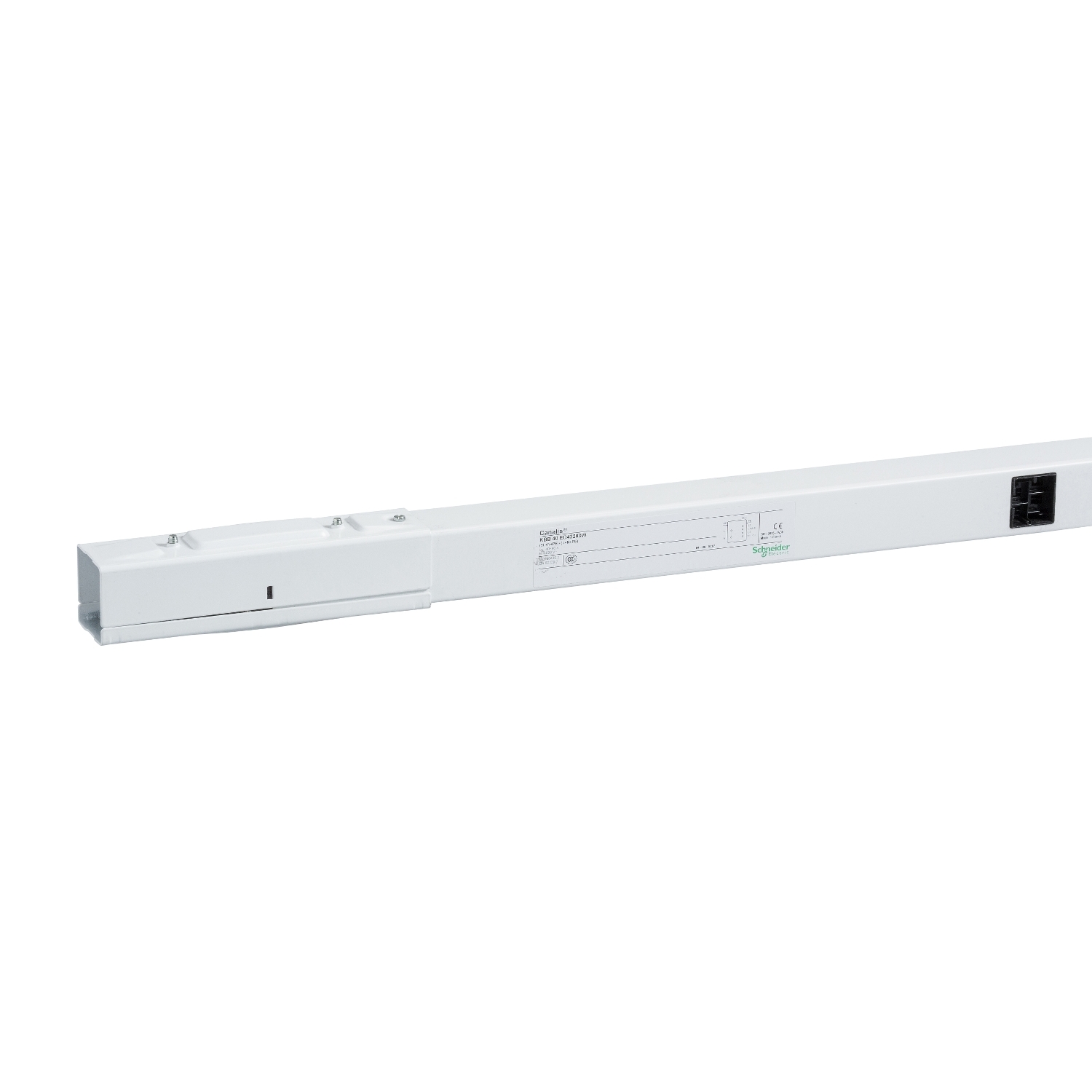

Straight length, Canalis KBB, 40A, 2 circuits, L+N+PE, 5 outlets, 3m, white RAL9003

$249.60
Available for Shipping : 18-Feb-2025
Straight length, Canalis KBB, 40A, 2 circuits, L+N+PE, 5 outlets, 3m, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This is a straight length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 3 tap-off outlets maximum spaced every meter on the main circuit (front), and 2 tap-off outlets maximum on the adjacent circuit (rear). It embeds 2 independent electrical circuits with L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 3m, and the section is 46mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...400 V
Device short name KBB
Device application power socket distribution, lighting
Product compatibility KBB
Number of tap-off outlets 5
Busbar description distribution length
Mounting mode by screws
[Ie] rated operational current 40 A at 35 °C
Busbar trunking polarity L + N + PE
Control type without
Range Canalis
Number of circuits 2
Product or component type straight length
Offer type classic
Range of product Canalis
Network frequency 50/60 Hz
Complementary
[Ipk] rated peak withstand current 9.6 kA
Width 30 mm
Colour white (RAL 9003)
Thermal stress limit 900 kA².s
Maximum voltage drop <0.22 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.25 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.28 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.3 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 5.2 kg
Length 3 m
Maximum radiated magnetic field 2 pT
[Ui] rated insulation voltage 690 V
Linear resistance 1.85 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 7.14 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 6.92 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 6.92 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 6.92 mΩ/m Rb0 20 °C impedance method Ph/PE, 18.06 mΩ/m Z0 20 °C symmetrical components method Ph/N, 5.25 mΩ/m X0 20 °C symmetrical components method Ph/N, 17.28 mΩ/m R0 20 °C symmetrical components method Ph/N, 0.9 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 0.9 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 5.68 mΩ/m Rb0 20 °C impedance method Ph/N, 5.68 mΩ/m Rb0 20 °C impedance method Ph/Ph, 13.85 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 0.73 mΩ/m X0 20 °C symmetrical components method Ph/PE, 13.83 mΩ/m R0 20 °C symmetrical components method Ph/PE, 3.46 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 3.46 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 2.83 mΩ/m R20 20 °C phase conductor, 0.8 mΩ/m protective conductor, 0.02 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor
THDI 33-100 % 28 A, 15-33 % 32 A, 0-15 % 40 A
[Uimp] rated impulse withstand voltage 4 kV
Standards EN/IEC 61439-1, EN/IEC 61439-6
Height 46 mm
[Icw] rated short-time withstand current 0.94 kA
Environment
IP degree of protection IP55 conforming to EN/IEC 60529
Ambient air temperature for operation 50-55 °C (85 % of In), 45-50 °C (89 % of In), 40-45 °C (93 % of In), 35-40 °C (96 % of In), 0-35 °C (100 % of In)
IK degree of protection IK06 conforming to EN/IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 6.000 cm
Package 1 Length 310.000 cm
Package 1 Weight 5.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 13.000 cm
Package 2 Width 16.000 cm
Package 2 Length 315.000 cm
Package 2 Weight 31.000 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 52.000 cm
Package 3 Width 63.000 cm
Package 3 Length 318.000 cm
Package 3 Weight 398.000 kg
