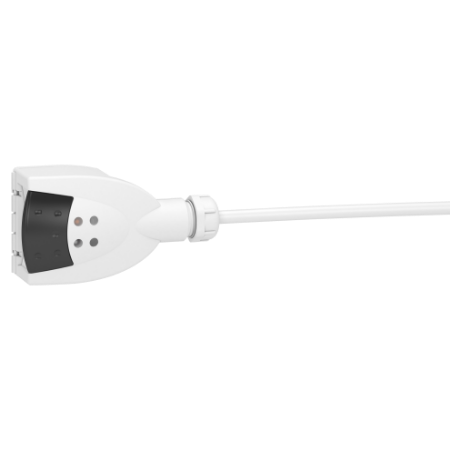

Picture of Tap off unit, Canalis KB, 10A, L+N+PE/2L+PE, phase selection, direct connection, pre wired with GST18i3 connector, 1m
SKU:

KBC10DCC21Z

Tap off unit, Canalis KB, 10A, L+N+PE/2L+PE, phase selection, direct connection, pre wired with GST18i3 connector, 1m

$28.78
Tap off unit, Canalis KB, 10A, L+N+PE/2L+PE, phase selection, direct connection, pre wired with GST18i3 connector, 1m
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This is a tap-off unit for direct connection on Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 10A at 35 ℃. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. This tap-off unit is pre-wired with SO5Z1-F 3x1.5mm² cable and 1m long. The two contact studs are movable and can be used to set up both L + N + PE and 2L + PE distribution. It is pre-equipped with a female GST18i3 connector for KDP Canalis busbar trunking. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Sold in lots of 10 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
