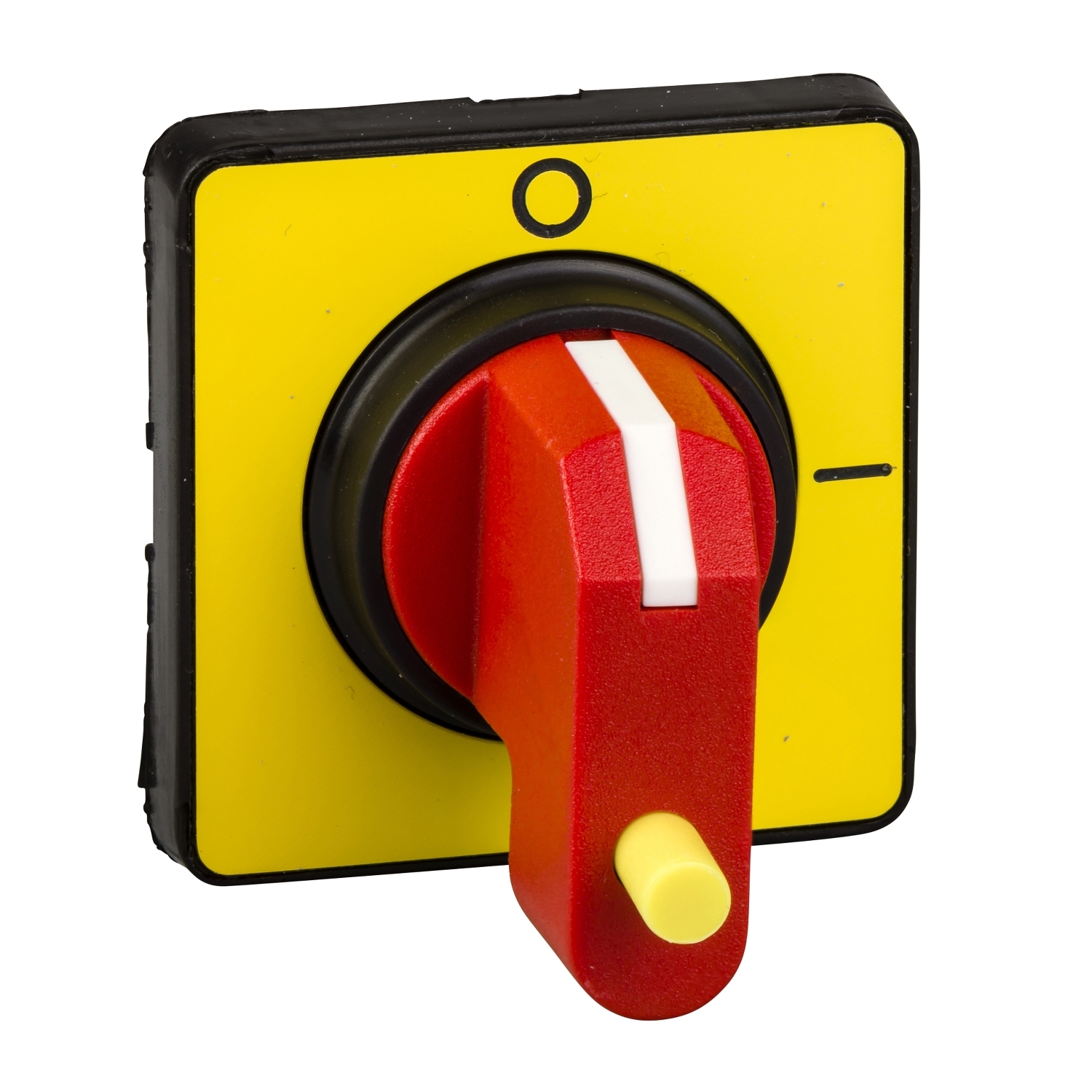

Picture of TeSys, TeSys VARIO / Mini VARIO- front and red rotary handle - 1 padlocking
SKU:

KCC1YZ

TeSys, TeSys VARIO / Mini VARIO- front and red rotary handle - 1 padlocking

$67.56
Available for Shipping : 17-Nov-2024
TeSys, TeSys VARIO / Mini VARIO- front and red rotary handle - 1 padlocking
  • It is suitable for 2 operation methods: directly on switch body or through a shaft extension
  • It ensures high protection degree to the mounting
  • It is Green Premium product as it is environmentally friendly
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
Product Page Link
Product Data Sheet
TeSys Vario operating handle, for TeSys Vario switch bodies VN12, VN20, V02 to V2. It provides a red handle and yellow front plate 45x45mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, 1 position (padlock to be ordered separately). Front plate with I-O indicators and with a central hole fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name KCC1
Product compatibility VN20, V02...V2, VN12
Range TeSys
Product or component type rotary handle
Handle colour red
Complementary
Width 45 mm
Compatibility code main switch
Net weight 0.05 kg
Base dimension 45 x 45 mm
Marking 0 - 1
Fixing mode hole, with diameter 22.5 mm
Handle front plate colour yellow
Height 45 mm
Rotary handle padlocking 1 padlock 4-6 mm
Environment
IP degree of protection IP65
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 6.6 cm
Package 1 Length 8.0 cm
Package 1 Weight 60.0 g
Unit Type of Package 2 2
Number of Units in Package 2 45
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.187 kg

Related products

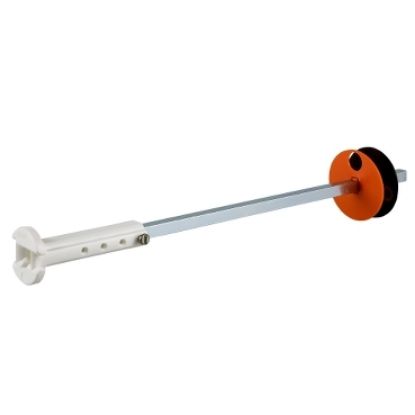

Picture of TeSys, TeSys VARIO - shaft extension - for V02...V2
