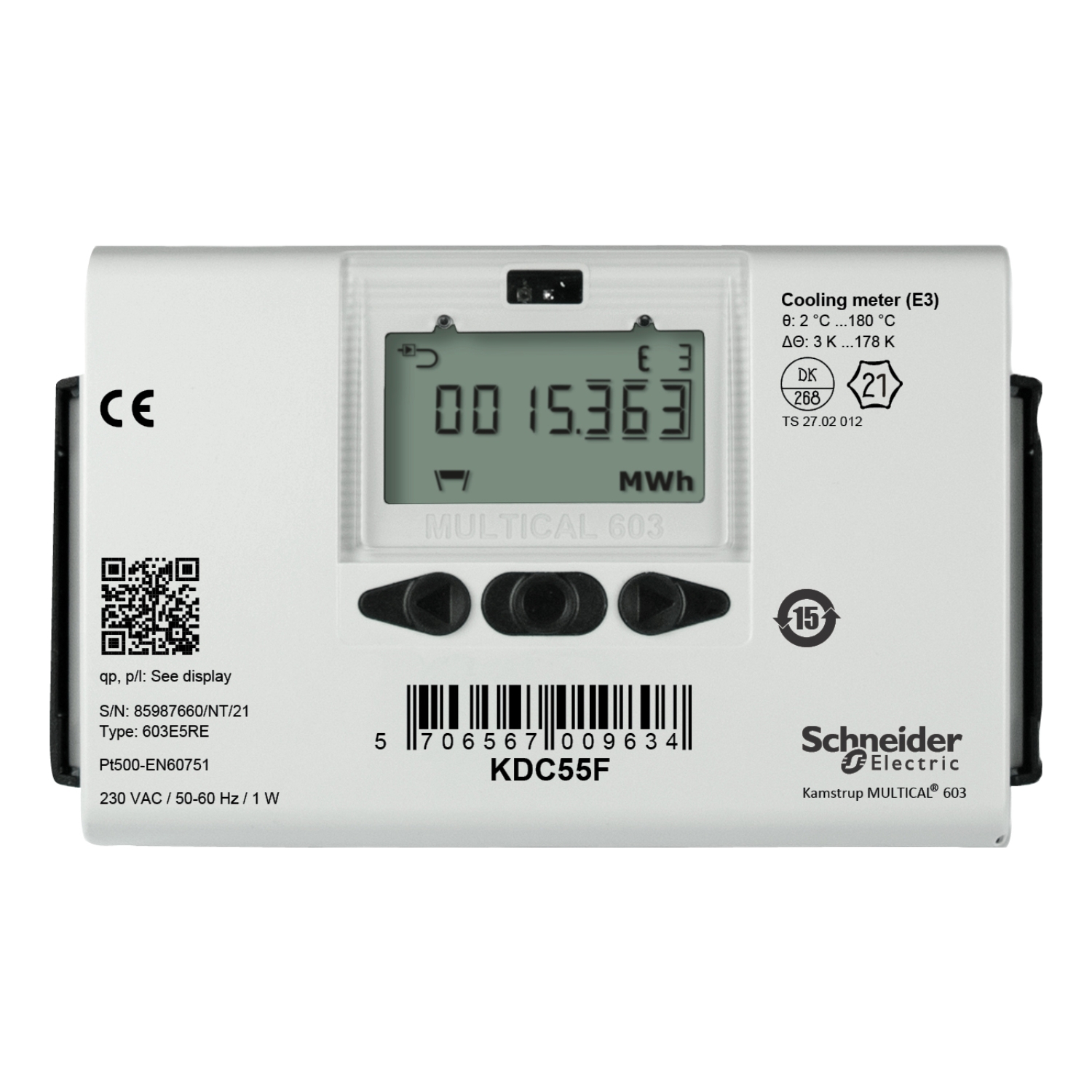

Picture of KD Series Cooling Meter, DN100 Flanged Stainless Steel, 100 m³/h Nominal, Flow Meter
SKU:

KDC55F

KD Series Cooling Meter, DN100 Flanged Stainless Steel, 100 m³/h Nominal, Flow Meter

$7,544.16
Availability: Please contact our sales team on 1300 724 622.
KD Series Cooling Meter, DN100 Flanged Stainless Steel, 100 m³/h Nominal, Flow Meter
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device application sub-metering, energy metering
Device composition keypad
Fitting material stainless steel
Operating fluid temperature 2-130 °C
Depth 200 mm
Fitting type flanged
Colour off white
Display type LCD
Output type analog
Width 360 mm
Enclosure material thermoplastic, PC 10 % GF with TPE
IP degree of protection IP65
Measurement temperature 2-130 °C
Sensor type thermistor temperature, ultrasonic sensor flow
Relative humidity 0-100 % RH, non-condensing
Flow measurement range 1...200 m3/h
Temperature measurement accuracy +/- 4 %
Ambient air temperature for storage -25-60 °C
Pipe material polymer, metallic
Flow measurement accuracy +/- 1 %
Net weight 21.7 kg
Controlled fluid water
Location plant room
Product or component type cooling energy meter
[Ui] rated insulation voltage 3.75 kV
Type of measurement cooling
Fitting size DN100
Standards EN 1434 class C (MID Class E2), EN 1434 class A (MID Class E1)
Range of product KD Series
Calibration certificate yes
Ambient air temperature for operation 5-55 °C
Height 200 mm
[Us] rated supply voltage 12...36 V AC, 161...264 V AC, 24 V AC, 230 V AC
Network frequency 60 Hz, 50 Hz
Storage Relative Humidity 0-100 % RH, non-condensing
Product certifications BEK1178
Complementary
Function available totalizer resetable, logging
Display resolution 7 digits
Power consumption in W 1 W
Maximum sensing distance 360 mm
Clamping connection capacity <= 1 mm²
Pressure drop 0.14 bar
Totalizer quantities 1
Product brand Schneider Electric
Field programmable Yes
Energy units Gcal, GJ, kWh, MWh
Meter location flow line
Pressure rating PN25
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 52.0 cm
Package 1 Width 83.4 cm
Package 1 Length 55.2 cm
Package 1 Weight 22.52 kg
