SKU:

KSA1000ABDD4

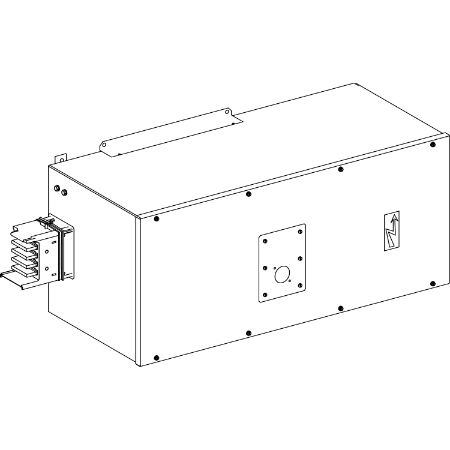

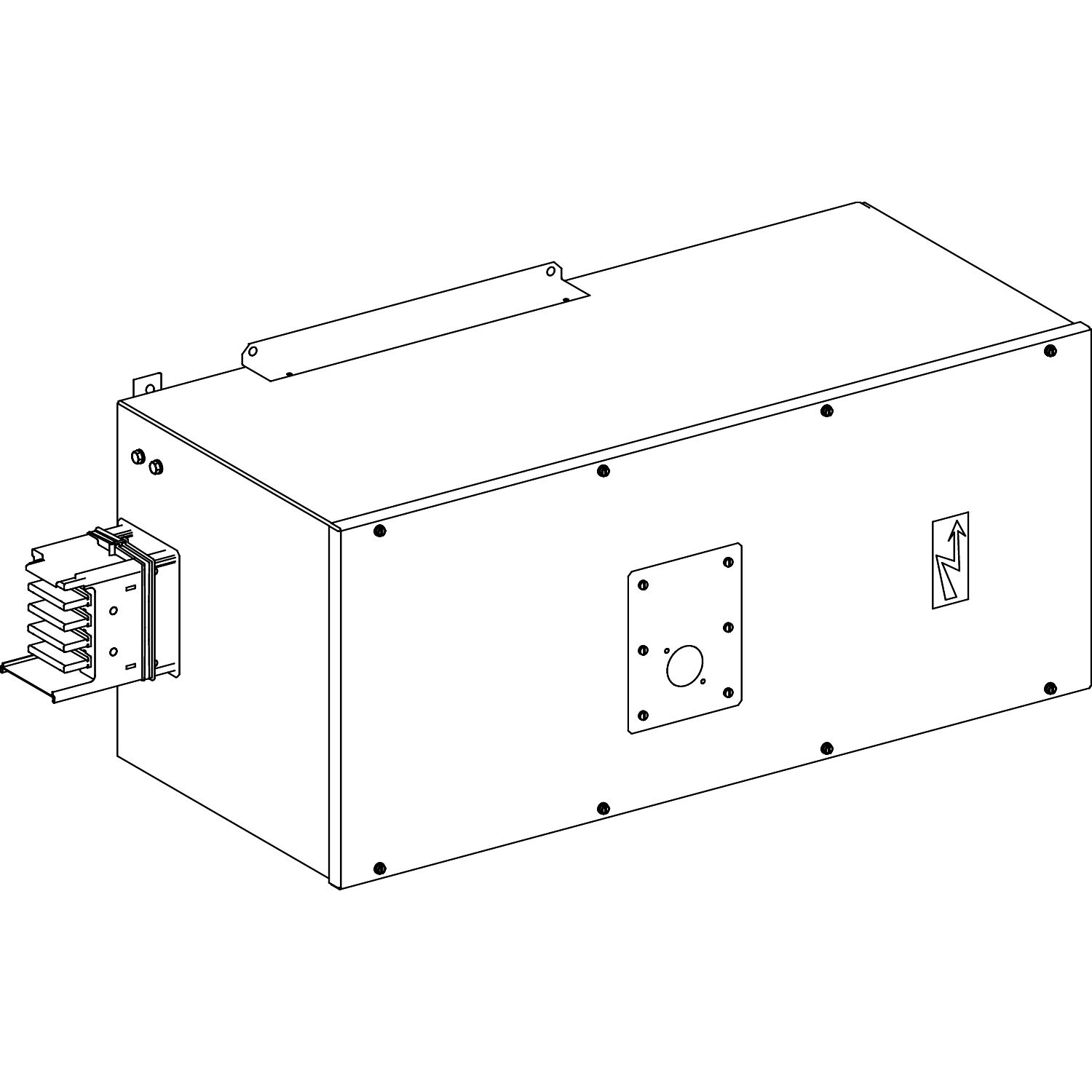

End feed unit, Canalis KSA1000, aluminium, 800/1000A, right mounting, for line protection, 3L+N+PE, white RAL9001

$11,820.60 INC GST

Qty:

Available for Shipping : 21-Jul-2026

End feed unit, Canalis KSA1000, aluminium, 800/1000A, right mounting, for line protection, 3L+N+PE, white RAL9001

Manufacturer: Schneider Electric

Delivery date: 21-Jul-2026

Environmental Disclosure

Declaration of conformity

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	230...690 V
Device short name	KSA
Colour	white (RAL 9001)
Protection type	circuit breaker protection
[Ie] rated operational current	1000 A
Busbar trunking polarity	3L + N + PE
Control type	rotary handle
Range	Canalis
Material	aluminium
Number of circuits	1
Product name	KS
Product or component type	feed unit
Product compatibility	Canalis KSA busbar trunking 500-1000 A
Offer type	rising main, advanced
Range of product	Canalis
Complementary
Depth	470 mm
Width	1229 mm
Body material	metal
Mounting location	right
Net weight	52 kg
Mounting support	busbar
Connections - terminals	bars, cable with lug
Standards	IEC 61439-6, IEC 61439-1
Height	457 mm
Environment
IP degree of protection	IP55 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	47.900 cm
Package 1 Width	50.000 cm
Package 1 Length	123.000 cm
Package 1 Weight	57.860 kg
