SKU:

KSB20CG5

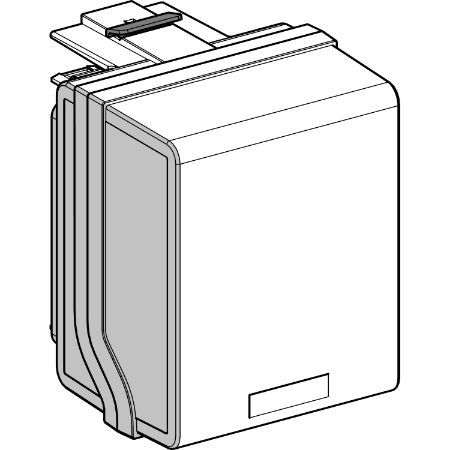

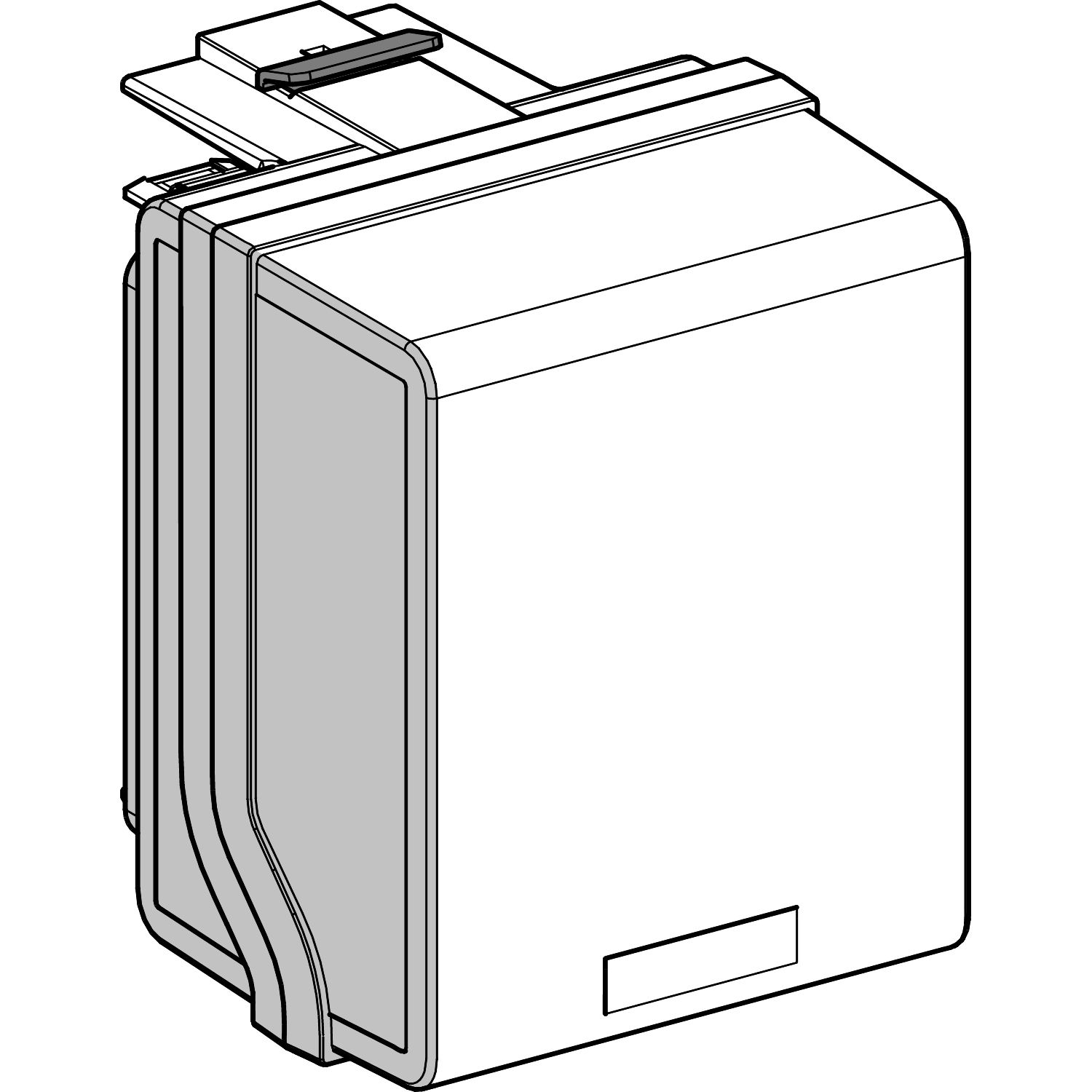

Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 20A, BS fuses not supplied, 3L+N+PE, IP55, RAL9001

$231.00 INC GST

Qty:

Available for Shipping : 25-May-2026

Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 20A, BS fuses not supplied, 3L+N+PE, IP55, RAL9001

Manufacturer: Schneider Electric

Delivery date: 25-May-2026

Environmental Disclosure

Instruction sheet

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Fuse type	fuse isolator: BS88 fuse, size A1 conforming to BS
Colour	white (RAL 9001)
Tap-off unit polarity	3L+N+PE
Product compatibility	Canalis KS busbar trunkingplug-in
Range	Canalis
Product or component type	tap-off unit
[Ie] rated operational current	20-20 A at 35 °C
Range compatibility	Canalis KS busbar trunking
Provided equipment	fuse to be ordered separately
Range of product	Canalis
Mounting mode	plug-in with fixed polarity
Complementary
Device application	medium power distribution
[Ui] rated insulation voltage	690 V depending on protective device
Depth	103 mm
Width	135 mm
[Ue] rated operational voltage	230...690 V depending on protective device
Body material	plastic
Door opening side	front
Function available	fuse isolator
Electrical connection	cable clamp terminal - ISO32 10-10 mm² rigid, cable clamp terminal - ISO32 6-6 mm² flexible
Tap-off unit disconnection mode	By drawing out
Net weight	0.6 kg
Standards	IEC 61439-6, IEC 61439-1
[Uimp] rated impulse withstand voltage	6.8 kV
Height	165 mm
Network frequency	50/60 Hz
Environment
Earthing system	IT, TN-S, TT
IP degree of protection	IP55 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	16.000 cm
Package 1 Width	17.500 cm
Package 1 Length	13.600 cm
Package 1 Weight	666.000 g
Unit Type of Package 2	2
Number of Units in Package 2	119
Package 2 Height	80.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	94.254 kg
