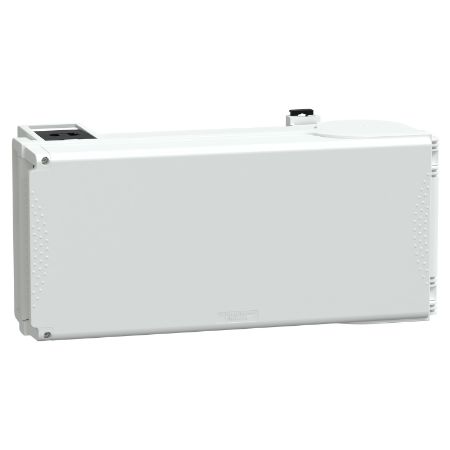

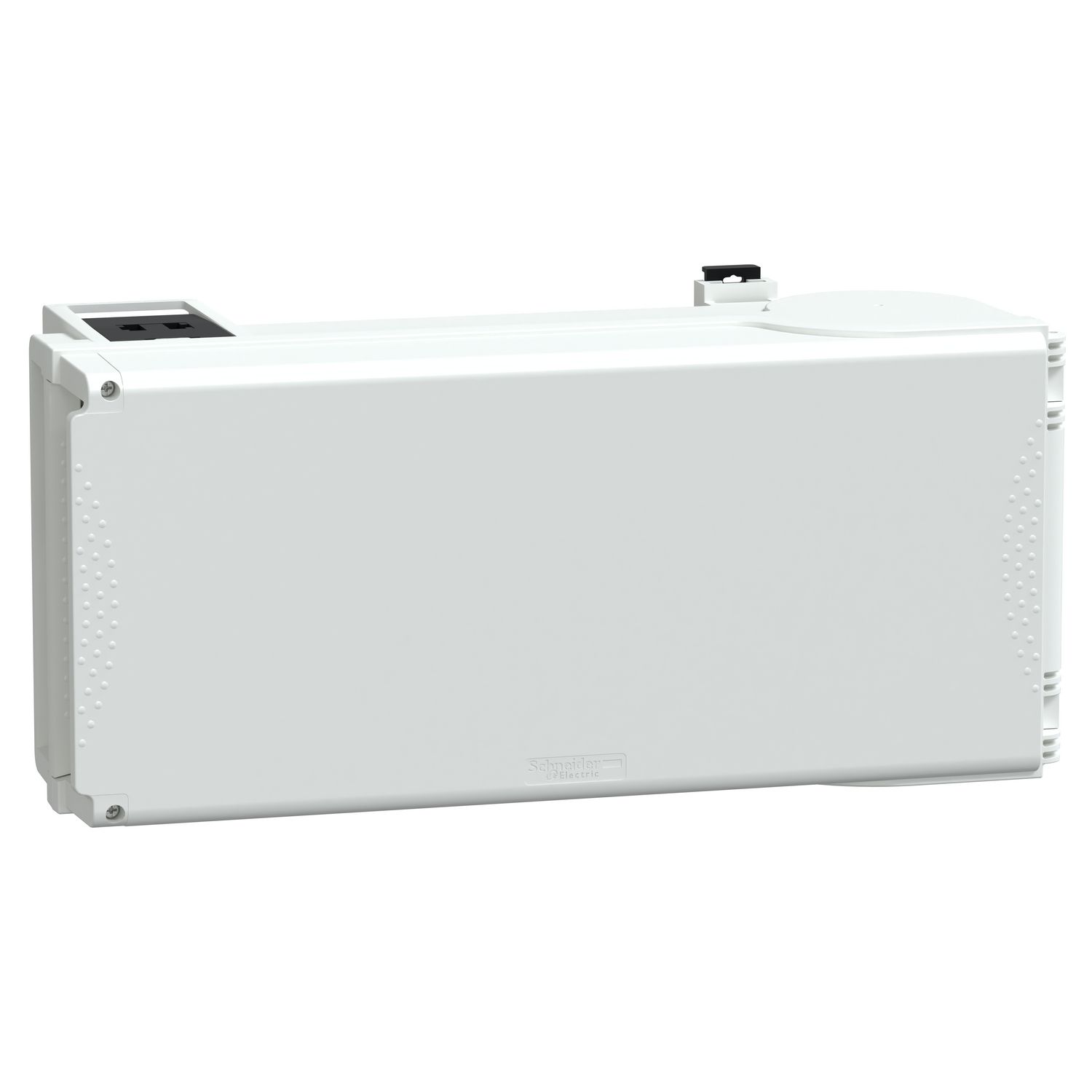

Picture of Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 80A, BS fuses not supplied, 3L+N+PE, IP55, RAL9001
SKU:

KSB80SG4

Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 80A, BS fuses not supplied, 3L+N+PE, IP55, RAL9001

$723.36 INC GST
Available for Shipping : 14-May-2026
Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 80A, BS fuses not supplied, 3L+N+PE, IP55, RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-May-2026
Declaration of conformity
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Fuse type fuse isolator: BS88 fuse, size A3 conforming to BS,  fuse isolator: BS88 fuse, size A1 conforming to BS
Colour white (RAL 9001)
Tap-off unit polarity 3L+N+PE
Product compatibility Canalis KT busbar trunking with KS type plug-in, Canalis KS busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 80-80 A at 35 °C
Range compatibility Canalis KS busbar trunking, Canalis KT busbar trunking
Provided equipment fuse to be ordered separately
Range of product Canalis
Mounting mode plug-in with fixed polarity
Complementary
Device application medium power distribution
[Ui] rated insulation voltage 500 V depending on protective device
Depth 128 mm
Width 444 mm
[Ue] rated operational voltage 230...690 V depending on protective device
Body material plastic
Door opening side right
Function available fuse isolator
Electrical connection copper cable lug - ISO63 50-50 mm² flexible, copper cable lug - ISO63 50-50 mm² rigid
Tap-off unit disconnection mode By opening the door
Net weight 5 kg
Standards IEC 61439-6, IEC 61439-1
[Uimp] rated impulse withstand voltage 6.8 kV
Door opening size 545.5 mm
Height 202 mm
Network frequency 50/60 Hz
Environment
Earthing system IT, TN-S, TT
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.400 cm
Package 1 Width 22.000 cm
Package 1 Length 44.400 cm
Package 1 Weight 3.549 kg
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 83.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 105.000 kg
