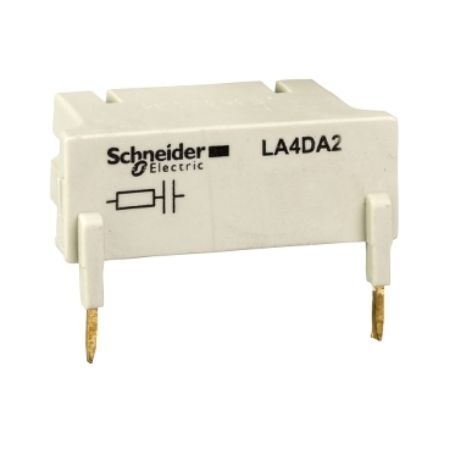

Picture of TeSys; TeSys Deca, suppressor module, RC circuit, 380...415 V AC 150 Hz
SKU:

LA4DA2N

TeSys; TeSys Deca, suppressor module, RC circuit, 380...415 V AC 150 Hz

Old price: $120.89 INC GST
$76.16 INC GST
Available for Shipping : 12-Jan-2026
TeSys; TeSys Deca, suppressor module, RC circuit, 380...415 V AC 150 Hz
  • Meet the need for coil protection for TeSys Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet

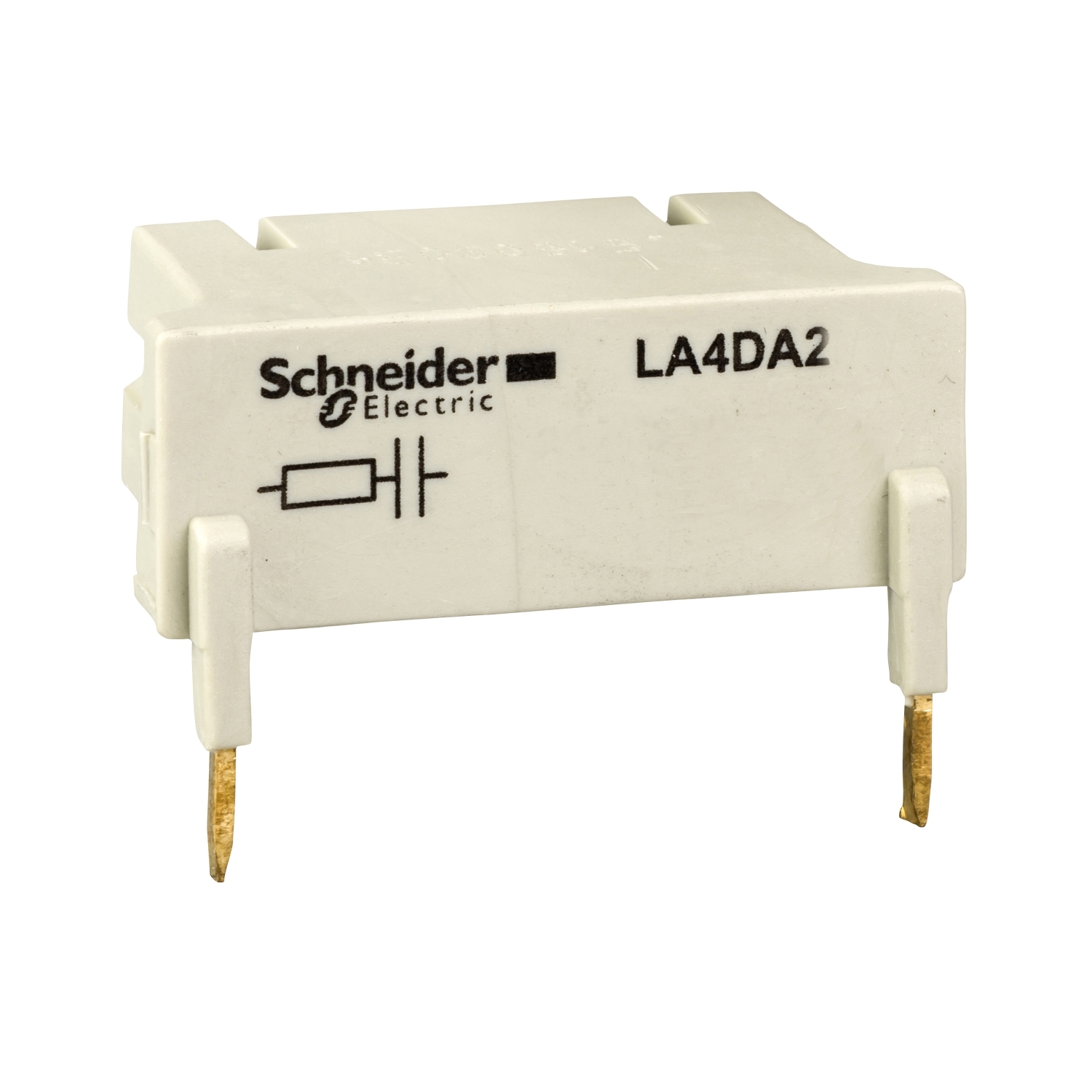

TeSys D suppressor module, for LC1D80-D150 (3P), LC1D40-D115 (4P) contactors. To be used with 380-415V AC control circuit voltage, it provides RC protection limiting the transient voltage to 3 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LA4D
Product compatibility 4P LC1D40008...D80008, 4P LC1D80004...D115004, 3P LC1D80...D150
Range TeSys
Product or component type suppressor module
Range of product TeSys Deca
Complementary
Suppressor technology RC circuit
Compatibility code LA4D
Mounting mode by screws
Maximum peak voltage 3 Uc
Mounting location top
Net weight 0.018 kg
[Uc] control circuit voltage 380...415 V AC 50/60 Hz
Environment
Ambient air temperature for storage -40-80 °C
IP degree of protection IP2X conforming to IEC 60529
Standards GB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN 60947-5-1, IEC 60947-5-1
Ambient air temperature for operation -25-55 °C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.8 cm
Package 1 Width 4.2 cm
Package 1 Length 5.0 cm
Package 1 Weight 22.0 g
Unit Type of Package 2 2
Number of Units in Package 2 78
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.878 kg

Related products

Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 415V AC 50/60Hz coil, lugs/bars terminals

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 415V AC 50/60Hz coil, lugs/bars terminals

LC1D1156N7
$966.04 INC GST $1,533.40 INC GST
View Detail
Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 415V AC 50/60Hz coil, lugs/bars terminals

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 415V AC 50/60Hz coil, lugs/bars terminals

LC1D1506N7
$887.04 INC GST $1,408.00 INC GST
View Detail
Picture of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 415V AC 50/60Hz coil, screw clamp terminals

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 415V AC 50/60Hz coil, screw clamp terminals

LC1D150N7
$938.32 INC GST $1,489.40 INC GST
View Detail
Picture of TeSys; TeSys Deca, Contactor, 4P(2NO+2NC),AC-1 <=440V 60 A 415V AC 50/60Hz coil

TeSys; TeSys Deca, Contactor, 4P(2NO+2NC),AC-1 <=440V 60 A 415V AC 50/60Hz coil

LC1D40008N7
$541.93 INC GST $860.20 INC GST
View Detail

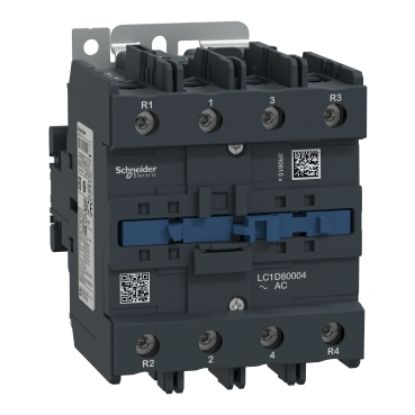

Picture of Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 415V AC 50Hz coil, screw clamp terminal
