SKU:

LA7K0064

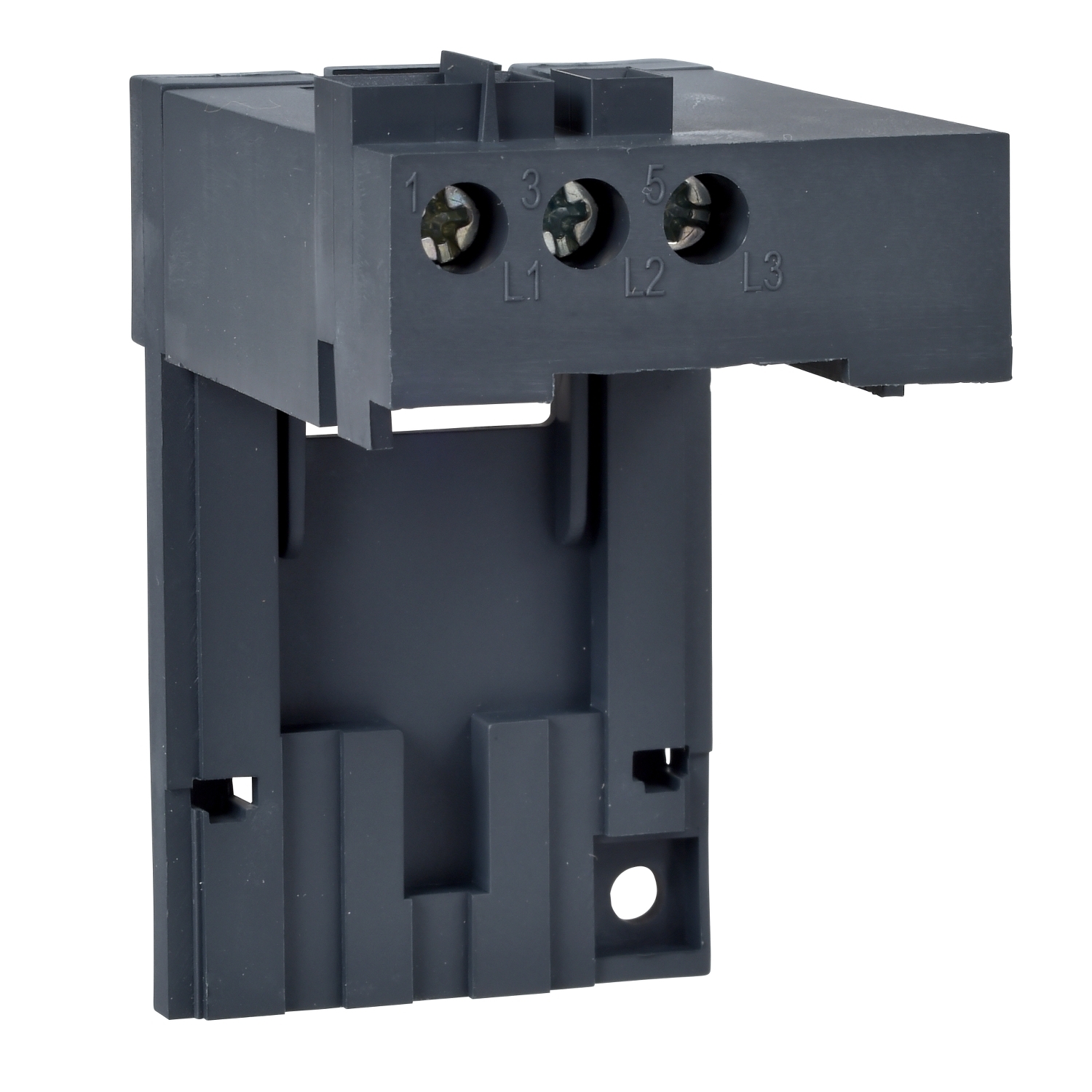

Terminal block,TeSys K thermal overload relays

$30.02
Available for Shipping : 24-Nov-2024
Terminal block,TeSys K thermal overload relays
  • Easy to install and maintain
  • Green Premium compliant
Manufacturer: Schneider Electric
TeSys LRK terminal block, for thermal overload relays LR2K, LR7K. To be used for a separate mounting of overload relay and contactor. It provides top connections by screw clamp terminals, clip-on fixing on 35 mm DIN-rail. It conforms to RoHS/REACh regulation.

Products specifications

Attribute name Attribute value
Main
Device short name LA7K
Product compatibility LR7K, LR2K
Mounting support rail
Range TeSys
Product or component type terminal block
Accessory / separate part category connection accessory
Complementary
Depth 75 mm
Width 45 mm
Quantity per set set of 10
Compatibility code LA7K
Tightening torque 0.8 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 0.8 N.m - on screw clamp terminals - with screwdriver Philips No 2
Connections - terminals screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 1.5-4 mm²solid
Net weight 0.1 kg
Height 80 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 6.000 cm
Package 1 Length 4.800 cm
Package 1 Weight 51.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.724 kg
