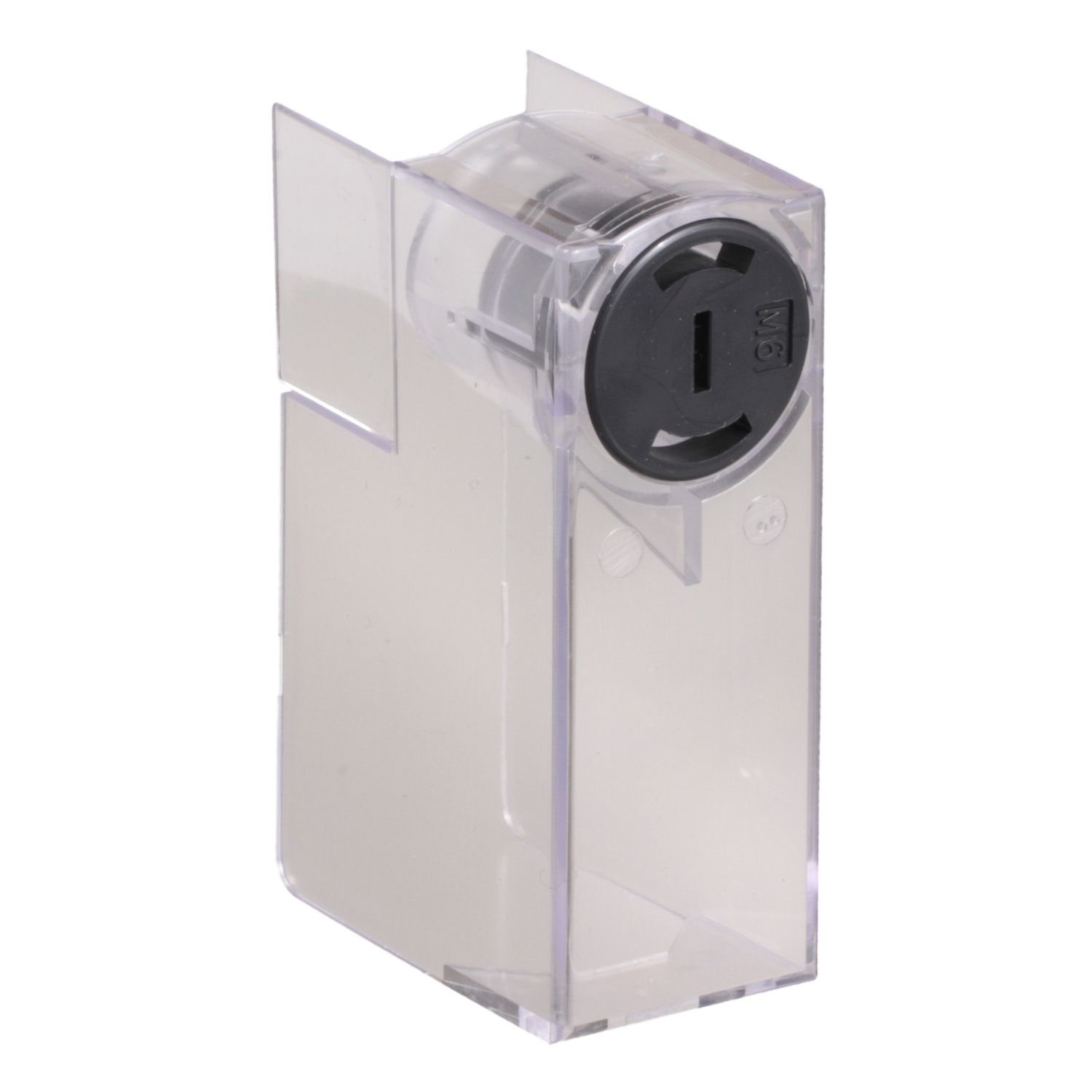

Picture of TeSys F - terminal shroud for contactor or relay 3P
SKU:

LA9F702

TeSys F - terminal shroud for contactor or relay 3P

$277.68
Available for Shipping : 24-Nov-2024
TeSys F - terminal shroud for contactor or relay 3P
  • Green Premium product: made of environmentally friendly material
  • It provides each power terminal with protection, and IP20 at front
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
TeSys F power terminal protection shrouds, for 3-pole contactors LC1 F150, F185 and CR1 F150, F185, and thermal overload relays LR9 F63, F67, F69, F*63, F*67, F*69. Set of 6 units. The shrouds protect against direct contact on terminals by providing a front face IP20 protection. One shroud per power terminal, to be attached to the connection screw of the terminal. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LA9F
Product compatibility LR9F63, F67, F69, ATS48 C14, C17, CR1F150, F185, LR9F5563, F5567, F5569, LC2F150, F185, ATS22 C11, C14, C17, LC1F150, F185, LR9F5363, F5367, F5369
Quantity per set set of 6
Poles description 1P
Range TeSys
Product or component type terminal shroud
Accessory / separate part category protection accessory
Range compatibility Altistart ATS48 soft starter, Altistart ATS22 soft starter, TeSys CR1F magnetic latching contactor, TeSys LC2F reversing contactor, TeSys LC1F contactor, TeSys LR9F electronic thermal overload relay
Range of product TeSys F
Complementary
Compatibility code LA9F terminal shroud
Mounting location on power terminal
Net weight 0.25 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 12.000 cm
Package 1 Length 18.500 cm
Package 1 Weight 203.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.623 kg
Unit Type of Package 3 3
Number of Units in Package 3 128
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 40.188 kg
