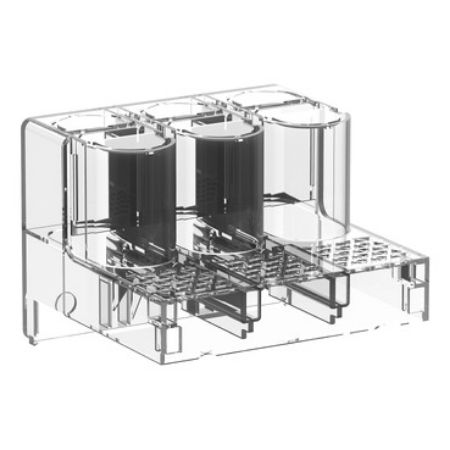

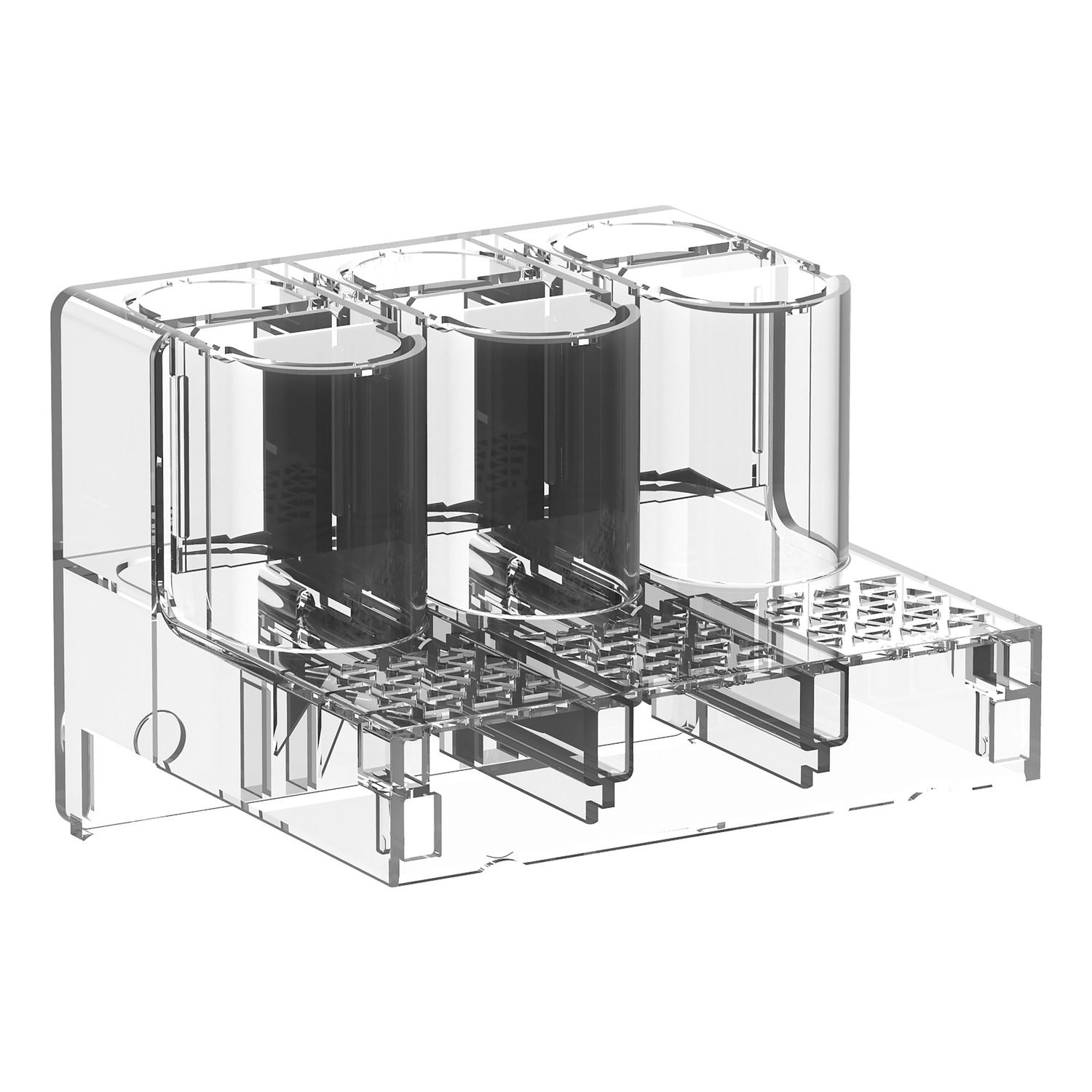

Picture of Terminal shroud,TeSys Giga contactor,for LC1G265-500,3 Pole,IP20
SKU:

LA9G3702

Terminal shroud,TeSys Giga contactor,for LC1G265-500,3 Pole,IP20

$72.22
Available for Shipping : 17-Nov-2024
Terminal shroud,TeSys Giga contactor,for LC1G265-500,3 Pole,IP20
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are terminal shrouds for TeSys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Accessory / separate part type installation accessories
Quantity per set set of 1
Poles description 3P
Range TeSys
Product or component type terminal shroud
Range of product TeSys G
Complementary
Product compatibility LC1G265...500
Depth 140.7 mm
Width 80.5 mm
IP degree of protection IP20 conforming to IEC 60529
Net weight 0.21 kg
Height 98.5 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -40-60 °C
Pollution degree 3 conforming to IEC 60947-1
Standards GB/T 14048, CSA C22.2 No 60947-1, UL 60947-1, EN/IEC 60947-1
Ambient air temperature for operation -60-80 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 13.000 cm
Package 1 Length 19.200 cm
Package 1 Weight 268.000 g
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.132 kg
