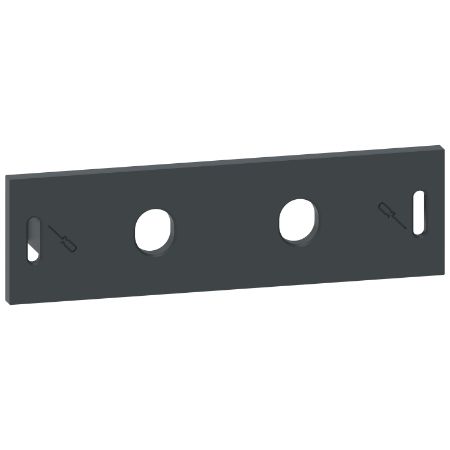

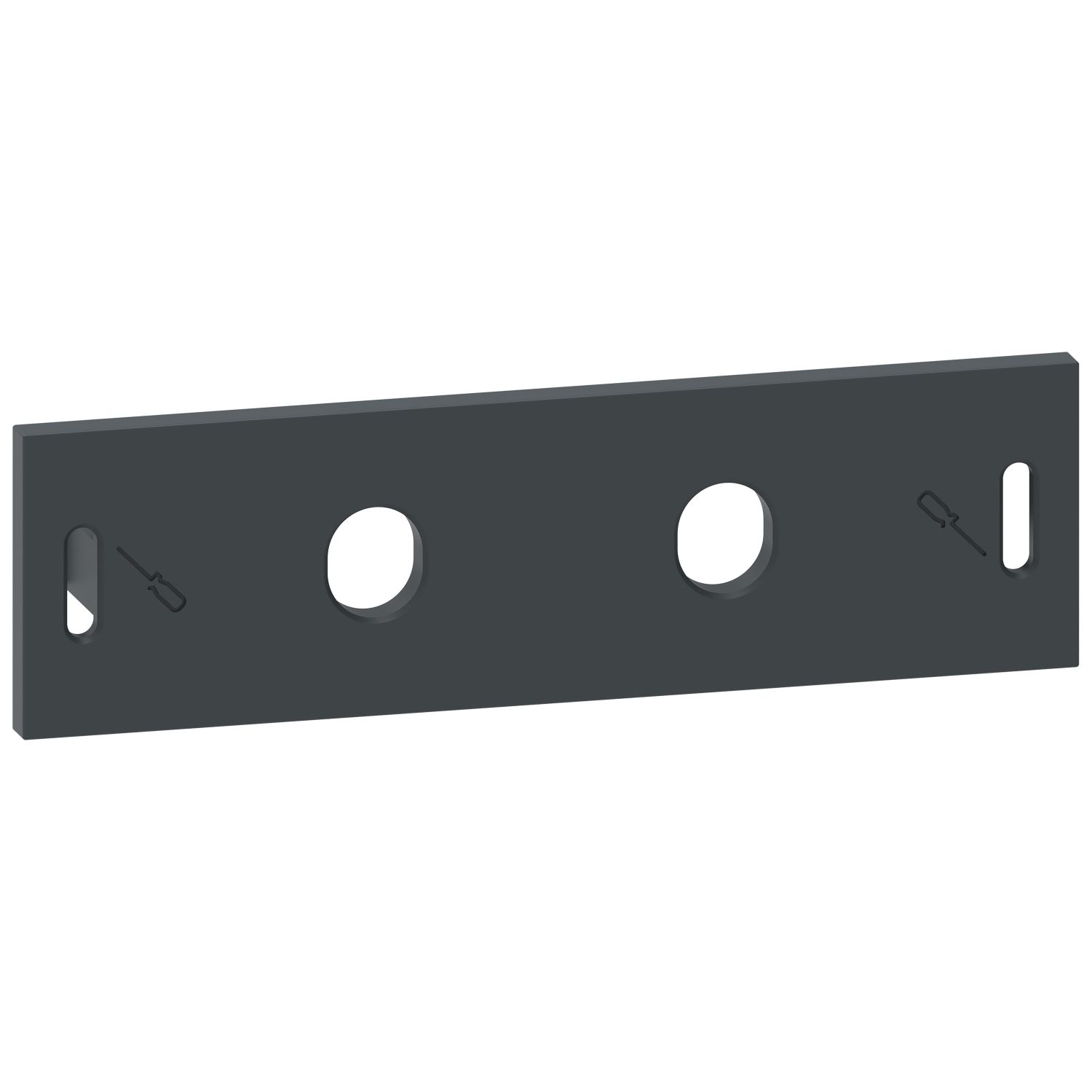

Picture of Front protection cover, for TeSys Giga electronic overload relay LR9G115-225
SKU:

LA9G3704

Front protection cover, for TeSys Giga electronic overload relay LR9G115-225

$21.92
Available for Shipping : 14-Nov-2024
Front protection cover, for TeSys Giga electronic overload relay LR9G115-225
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
Product environmental
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are front protection cover for TeSys LR9G115-225 thermal overload relay. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Product compatibility LR9G115...225
Range compatibility TeSys G
Poles description 3P
Range TeSys
Product or component type plate
Range of product TeSys G
Complementary
Depth 110 mm
Width 35 mm
Quantity per set set of 1
Net weight 0.1 kg
Height 20 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -60-80 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP20 conforming to IEC 60529
Standards GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.6 cm
Package 1 Width 5.6 cm
Package 1 Length 19.6 cm
Package 1 Weight 51.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 921.0 g
