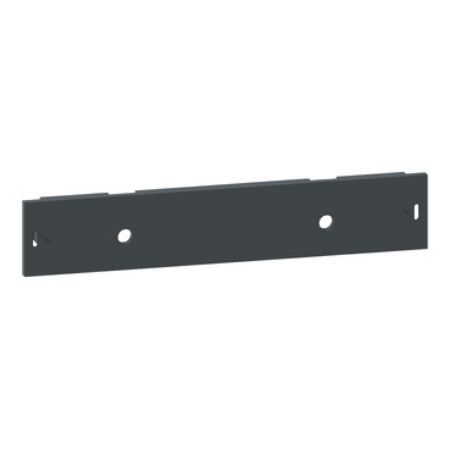

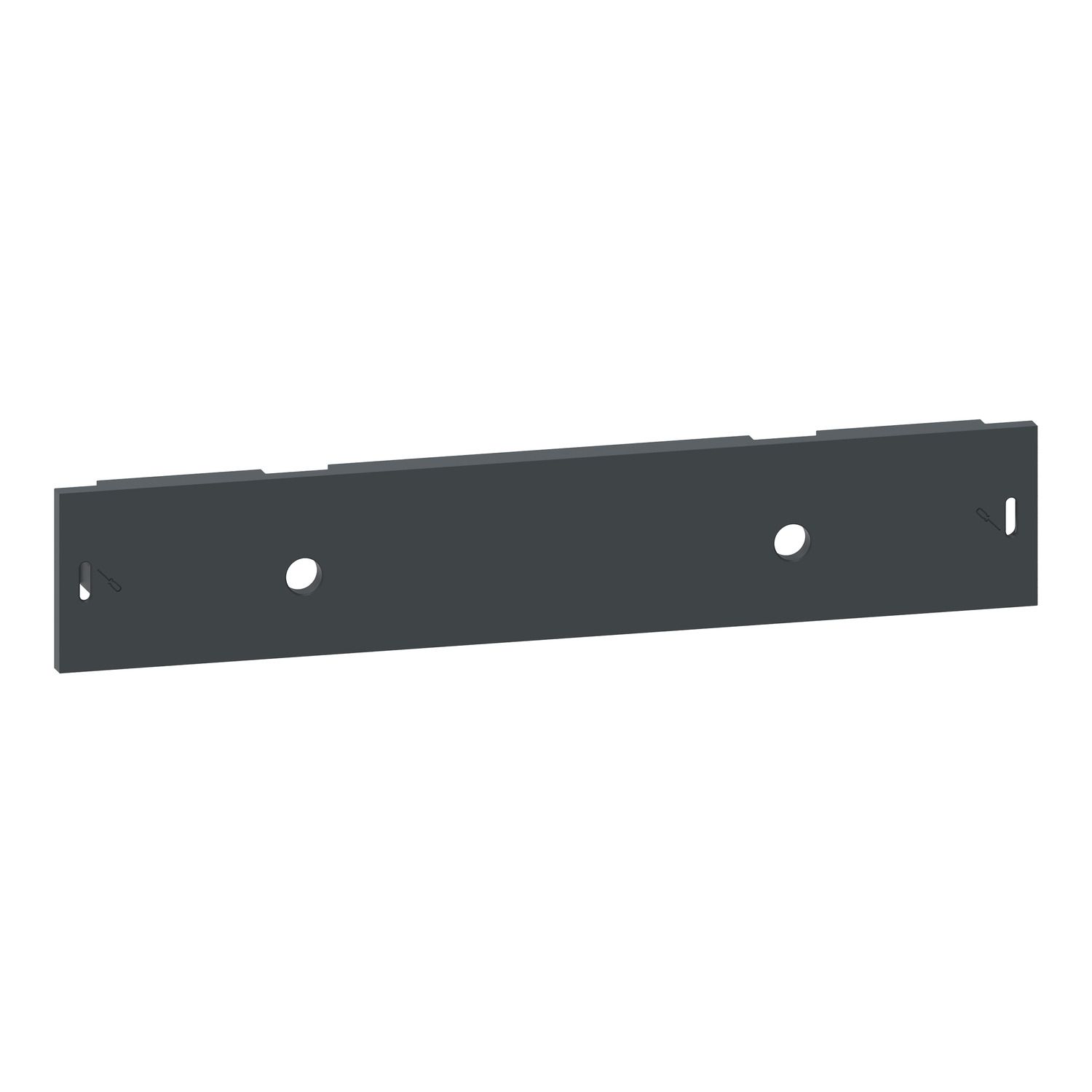

Picture of Front protection cover, for TeSys Giga electronic overload relay LR9G630
SKU:

LA9G3706

Front protection cover, for TeSys Giga electronic overload relay LR9G630

Please Contact Sales to buy this Product. click here
Front protection cover, for TeSys Giga electronic overload relay LR9G630
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
End of life manual
Product environmental
CAD
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are front protection cover for TeSys LR9G630 thermal overload relay. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLA9G
Product compatibilityLR9G630
Range compatibilityTeSys G
Poles description3P
RangeTeSys
Product or component typeplate
Range of productTeSys G
Complementary
Depth51.7 mm
Width210 mm
Quantity per setset of 1
Net weight0.065 kg
Height13.5 mm
Environment
Operating altitude5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage-60-80 °C
Pollution degree3 conforming to IEC 60947-1
IP degree of protectionIP20 conforming to IEC 60529
StandardsGB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation-25-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.5 cm
Package 1 Width8.5 cm
Package 1 Length22.0 cm
Package 1 Weight113.0 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight1.282 kg
