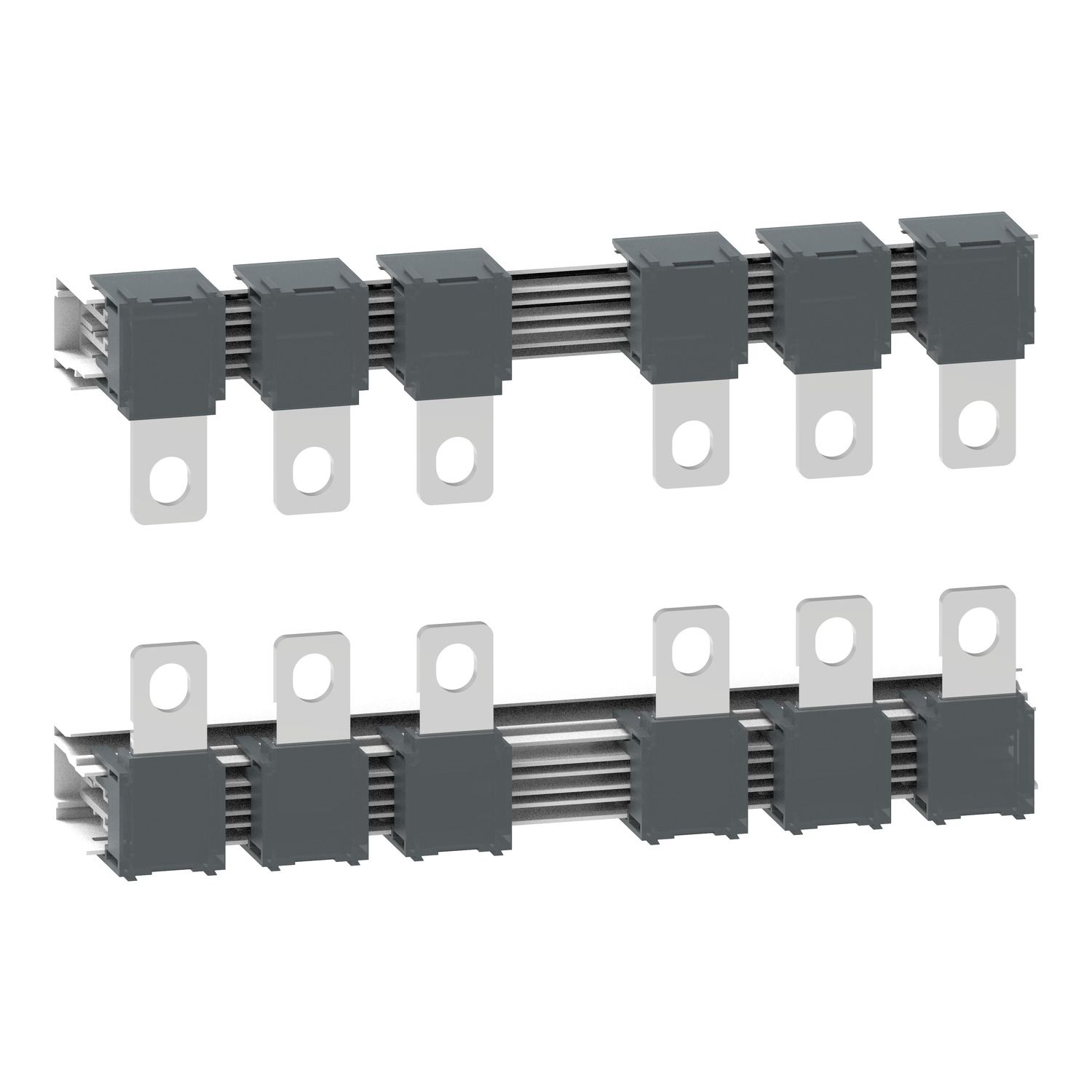

Picture of Reverser connection bar,TeSys Giga contactor,for LC1G115-225,3 pole
SKU:

LA9G3760

Reverser connection bar,TeSys Giga contactor,for LC1G115-225,3 pole

Please Contact Sales to buy this Product. click here
Reverser connection bar,TeSys Giga contactor,for LC1G115-225,3 pole
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Catalogue
End of life manual
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are reverser bars for TeSys Giga 115-225 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 225 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLA9G
Electrical circuit typereversing
Quantity per setset of 1
RangeTeSys
Product or component typeset of connections
Accessory / separate part categoryconnection accessory
Complementary
Product compatibilityLC1G205...245, LC1G115...225
Depth232.6 mm
Width62.1 mm
Poles description3P
Net weight1.0 kg
Range compatibilityTeSys Giga
Height45 mm
Environment
Operating altitude5000 m with derating factor, 3000 m without derating
IP degree of protectionIP20 conforming to IEC 60529
Ambient air temperature for storage-60-80 °C
Product certificationsRMRoS, RINA, RCM, LROS (Lloyds register of shipping), KC, EAC, DNV-GL, CE, cUL, CCS, CCC, CB, BV, ABS
StandardsGB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation-40-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.5 cm
Package 1 Width11.0 cm
Package 1 Length39.5 cm
Package 1 Weight1.18 kg
Unit Type of Package 22
Number of Units in Package 29
Package 2 Height30.0 cm
Package 2 Width40.0 cm
Package 2 Length60.0 cm
Package 2 Weight11.706 kg
