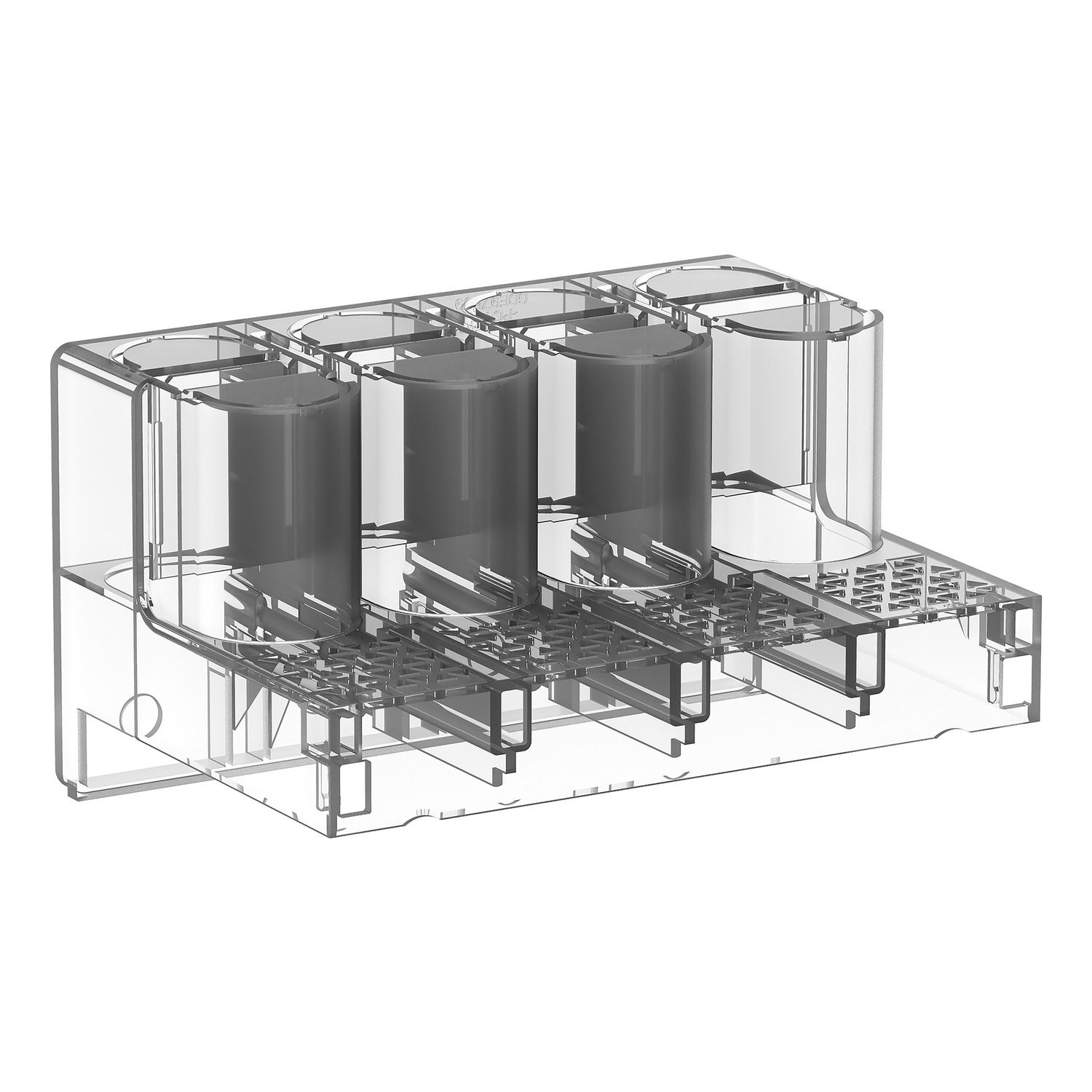

Picture of Terminal shroud,TeSys Giga contactor,for LC1G115-225,4 Pole,IP20
SKU:

LA9G4701

Terminal shroud,TeSys Giga contactor,for LC1G115-225,4 Pole,IP20

Please Contact Sales to buy this Product. click here
Terminal shroud,TeSys Giga contactor,for LC1G115-225,4 Pole,IP20
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 11-Dec-2024
Product environmental
Catalogue
End of life manual
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are terminal shrouds for TeSys Giga 115-225 contactor. It is used to 4 Poles electrical circuit. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLA9G
Accessory / separate part typeinstallation accessories
Quantity per setset of 1
Poles description4P
RangeTeSys
Product or component typeterminal shroud
Range of productTeSys G
Complementary
Product compatibilityLC1G115...225
Depth140 mm
Width96.5 mm
IP degree of protectionIP20 conforming to IEC 60529
Net weight0.133 kg
Height121.5 mm
Environment
Operating altitude5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage-40-60 °C
Pollution degree3 conforming to IEC 60947-1
StandardsGB/T 14048, CSA C22.2 No 60947-1, UL 60947-1, EN/IEC 60947-1
Ambient air temperature for operation-60-80 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.000 cm
Package 1 Width10.500 cm
Package 1 Length14.800 cm
Package 1 Weight216.000 g
Unit Type of Package 22
Number of Units in Package 25
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight1.410 kg
