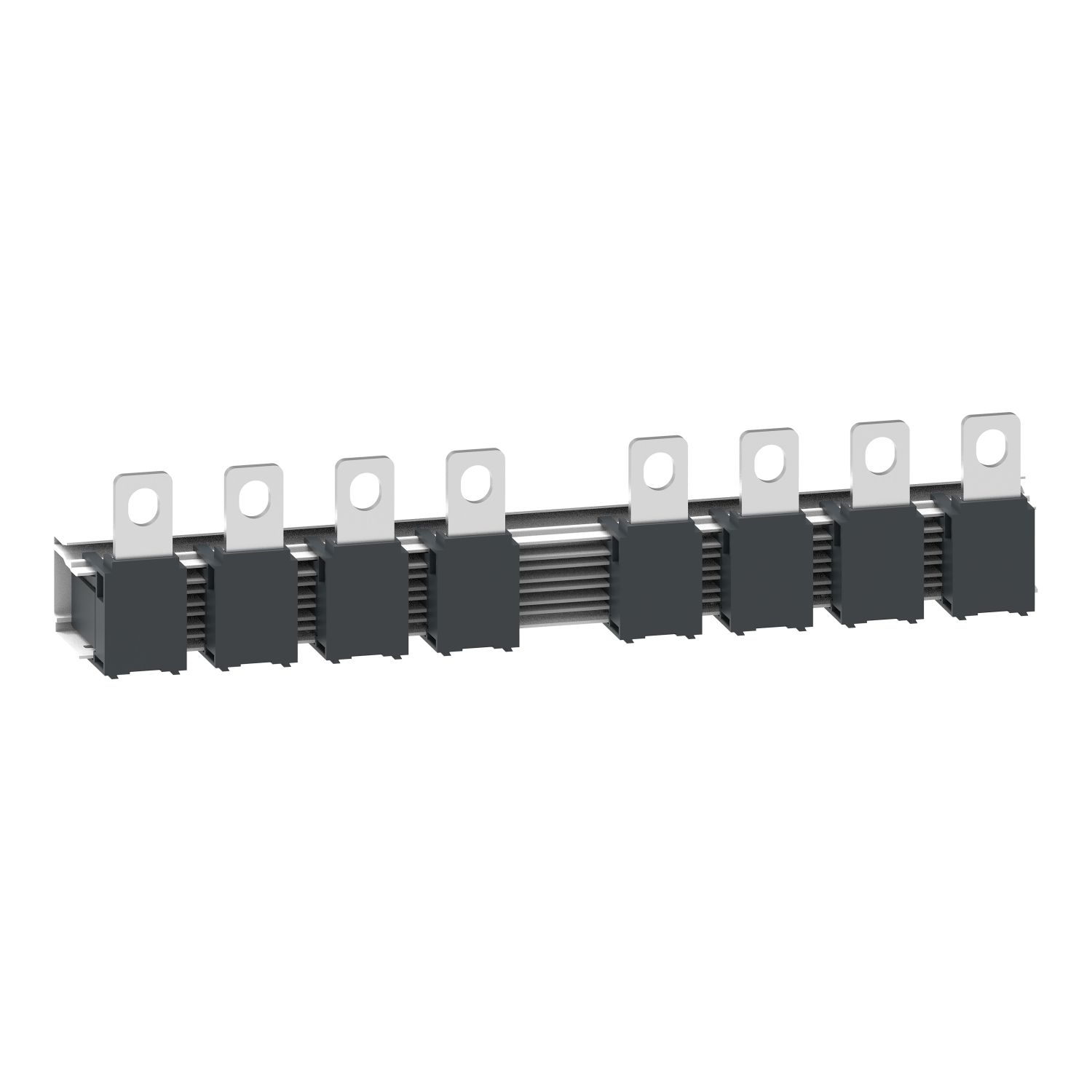

Picture of Change-over connection bar, for TeSys Giga contactor LC1G115-225, 4 pole
SKU:

LA9G4750

Change-over connection bar, for TeSys Giga contactor LC1G115-225, 4 pole

$283.40
Available for Shipping : 27-Jan-2025
Change-over connection bar, for TeSys Giga contactor LC1G115-225, 4 pole
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are change-over bars for TeSys Giga 115-225 contactor. It is used to 4 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 225 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Electrical circuit type changeover
Quantity per set set of 1
Range TeSys
Product or component type set of connections
Accessory / separate part category connection accessory
Complementary
Product compatibility LC1G115...225
Depth 302.6 mm
Width 62.1 mm
Poles description 4P
Net weight 0.5 kg
Range compatibility TeSys Giga
Height 45 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for storage -60-80 °C
Product certifications RMRoS, RINA, RCM, LROS (Lloyds register of shipping), KC, EAC, DNV-GL, CE, cUL, CCS, CCC, CB, BV, ABS
Standards GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation -40-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 11.500 cm
Package 1 Length 35.000 cm
Package 1 Weight 931.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 15.479 kg
