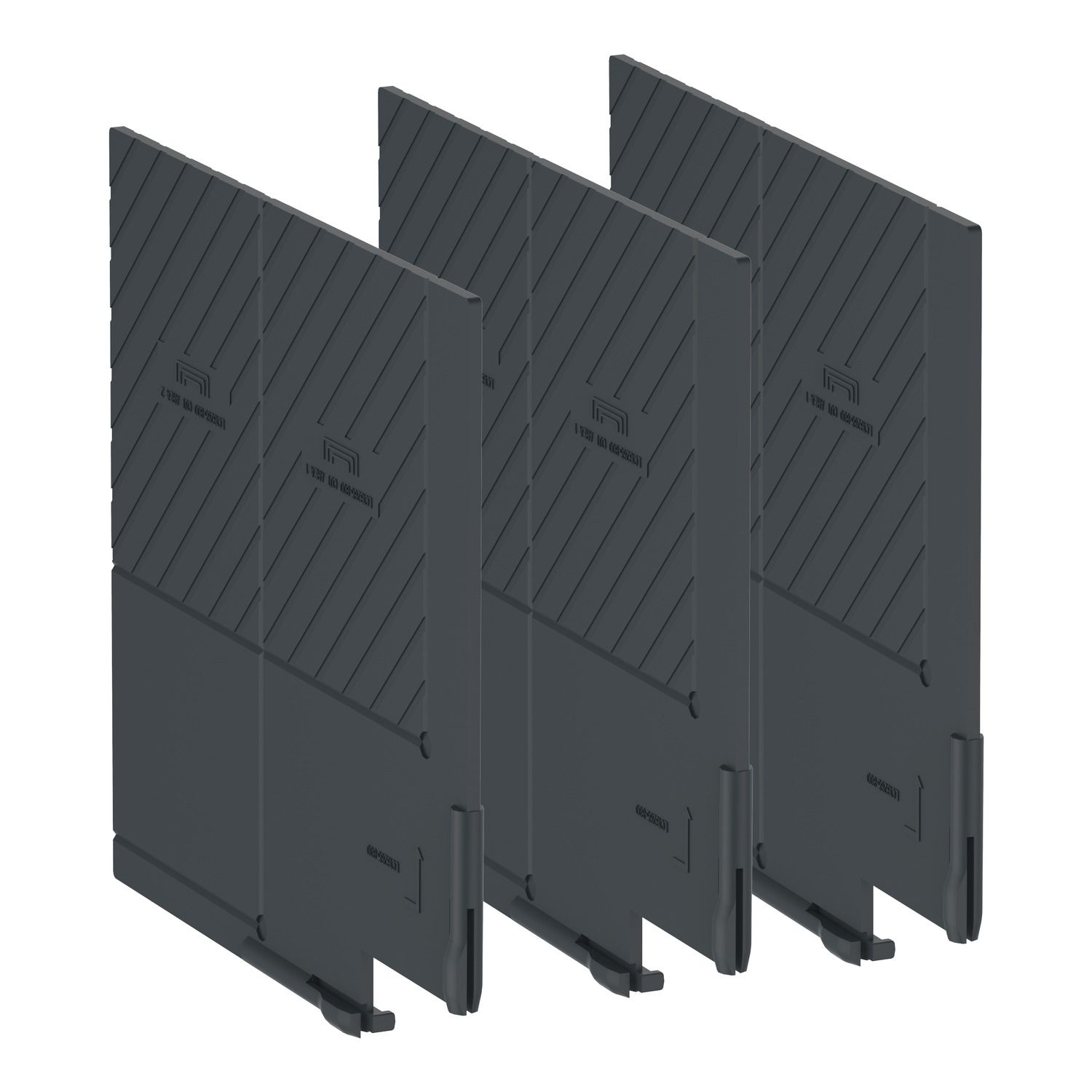

Picture of Phase separator,TeSys Giga contactor,for LC1G115-800,4 pole
SKU:

LA9G4801

Phase separator,TeSys Giga contactor,for LC1G115-800,4 pole

Please Contact Sales to buy this Product. click here
Phase separator,TeSys Giga contactor,for LC1G115-800,4 pole
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 29-Nov-2024
Product environmental
Instruction sheet
Catalogue
End of life manual
User guide
Product Page Link
Product Data Sheet
These accessories are phase separator for TeSys Giga 115-500 contactor. It is used to 4 Poles electrical circuit. These phase barriers are accessories used to reinforce insulation at the power connection points. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLA9G
Quantity per setset of 3
Poles description4P
RangeTeSys
Product or component typephase barrier
Accessory / separate part categoryinstallation accessories
Range of productTeSys G
Complementary
Product compatibilityLC1G265...800, LC1G115...225
Depth81.2 mm
Width117.6 mm
Net weight0.06 kg
[Ui] rated insulation voltage1000 V
Height2 mm
Environment
Operating altitude5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage-60-80 °C
Pollution degree3 conforming to IEC 60947-1
Product certificationsRMRoS, RINA, RCM, LROS (Lloyds register of shipping), KC, EAC, DNV-GL, CE, cUL, CCS, CCC, CB, BV, ABS
StandardsGB/T 14048, CSA C22.2 No 60947-1, UL 60947-1, EN/IEC 60947-1
Ambient air temperature for operation-40-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.0 cm
Package 1 Width117.6 cm
Package 1 Length81.2 cm
Package 1 Weight110.0 g
Unit Type of Package 22
Number of Units in Package 25
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight550.0 g
