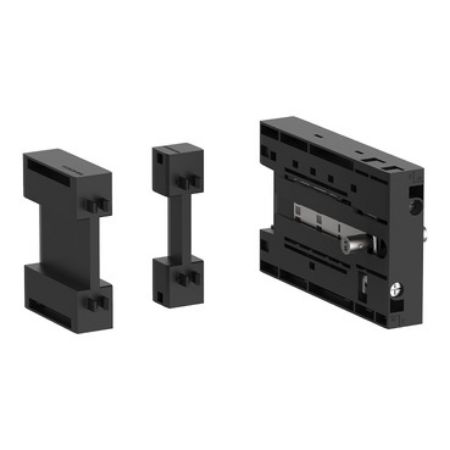

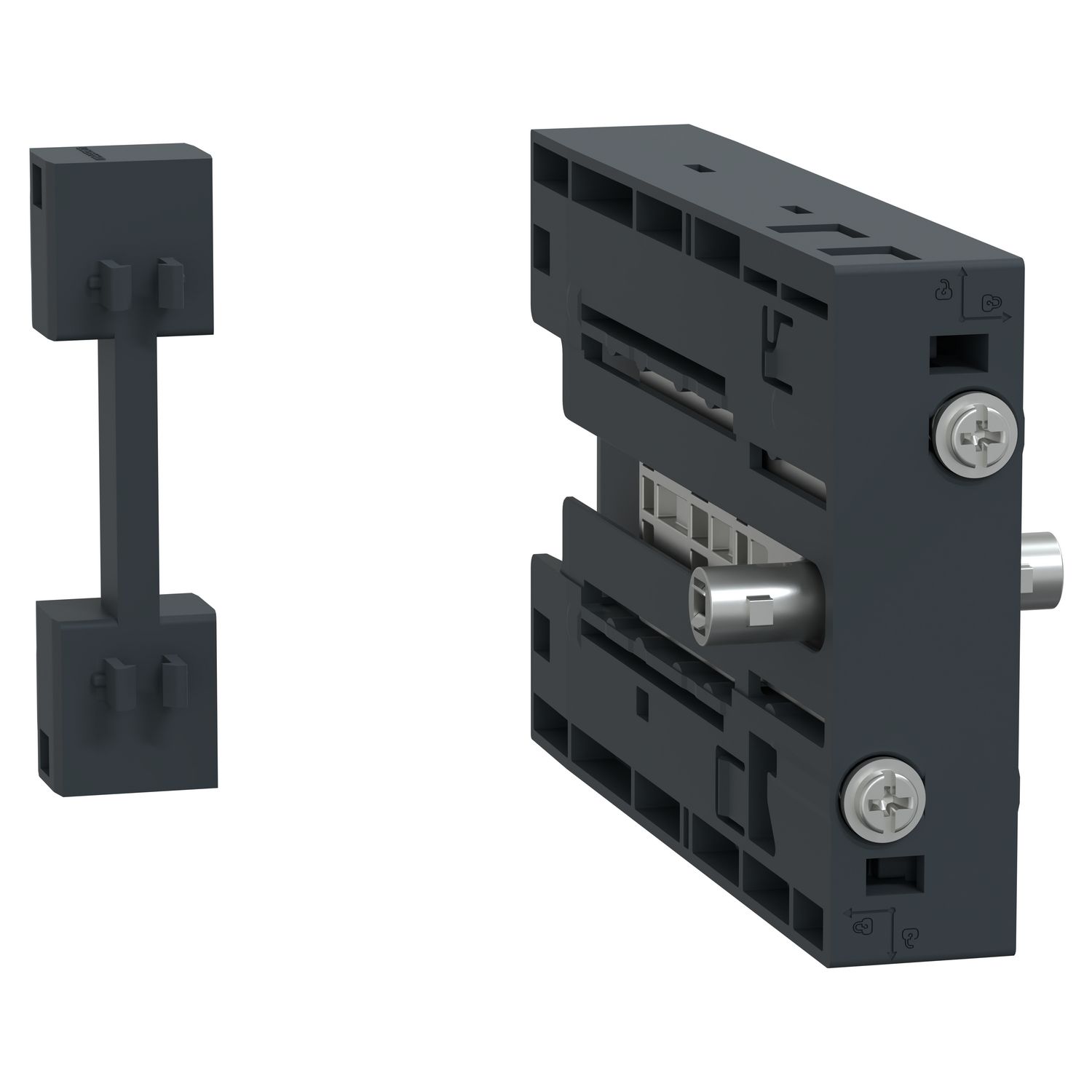

Picture of Mechanical Interlock, for TeSys Giga contactor LC1G115-500, IP20
SKU:

LA9G970

Mechanical Interlock, for TeSys Giga contactor LC1G115-500, IP20

Please Contact Sales to buy this Product. click here
Mechanical Interlock, for TeSys Giga contactor LC1G115-500, IP20
  • Ergonomic design helps for easy and quickly assembly of contactors of same size or different sizes
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Catalogue
End of life manual
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are mechanical interlock for Tesys Giga contactor identical frame. To be used for reversing and changeover assemblings. Without electrical interlocking. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLA9G
Product compatibilityLC1G205...475, LC1G115...500
Range compatibilityTeSys Giga
Electrical circuit typechangeover, star-delta, reversing
Poles description4P, 3P
RangeTeSys
Product or component typemechanical interlock
Accessory / separate part categoryinterlocking accessory
Range of productTeSys Giga
Interlocking typemechanical
Complementary
Depth120 mm
Width80 mm
Net weight0.25 kg
Height50 mm
Environment
Operating altitude5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage-60-80 °C
Pollution degree3 conforming to IEC 60947-1
IP degree of protectionIP20 conforming to IEC 60529
StandardsGB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation-25-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.500 cm
Package 1 Width8.500 cm
Package 1 Length18.300 cm
Package 1 Weight190.000 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight2.690 kg
