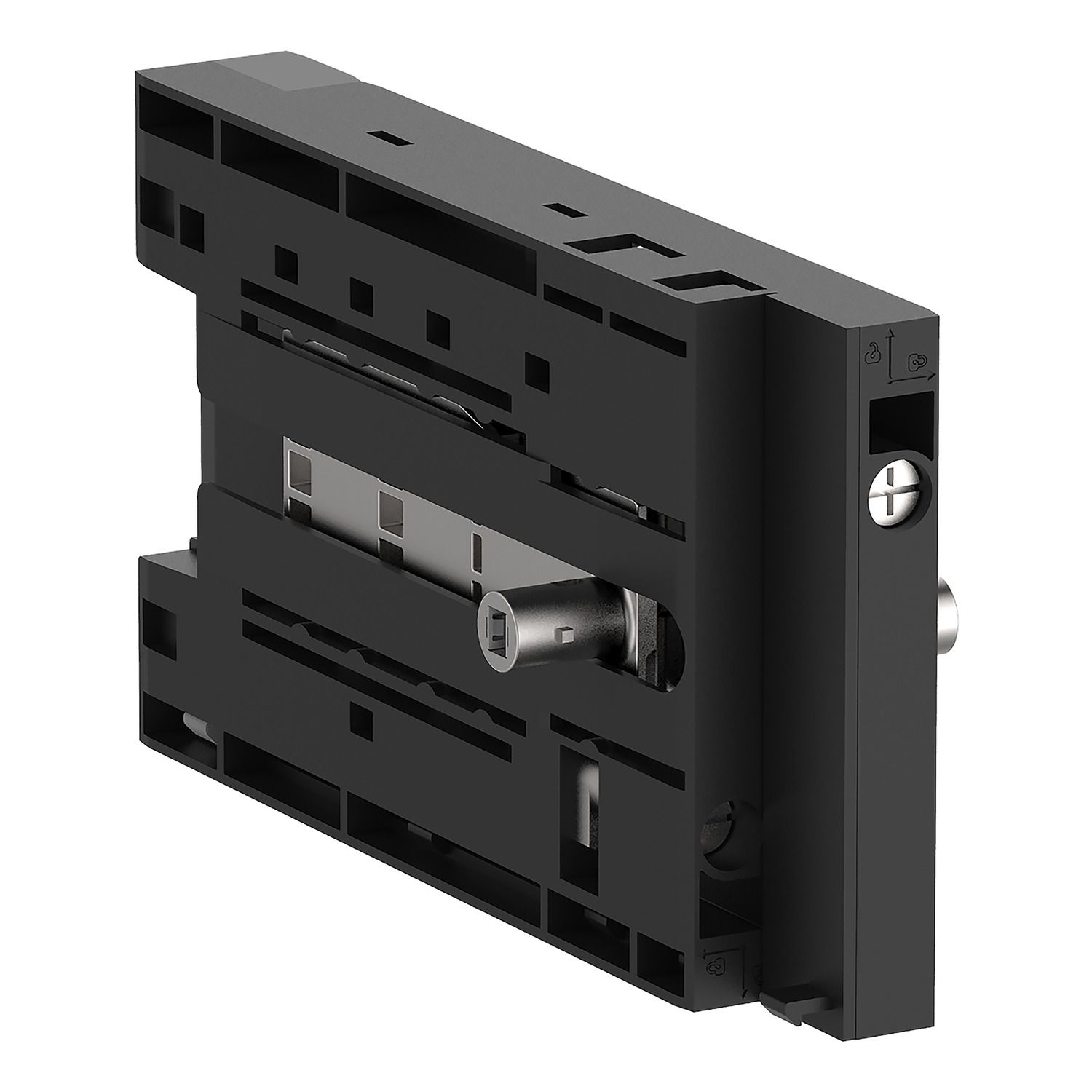

Picture of Mechanical interlock, for TeSys Giga contactor LC1G265-500 and LC1G115-225, IP20
SKU:

LA9G971

Mechanical interlock, for TeSys Giga contactor LC1G265-500 and LC1G115-225, IP20

Please Contact Sales to buy this Product. click here
Mechanical interlock, for TeSys Giga contactor LC1G265-500 and LC1G115-225, IP20
  • Ergonomic design helps for easy and quickly assembly of contactors of same size or different sizes
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Product environmental
Catalogue
End of life manual
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are mechanical interlock for TeSys Giga 265-500 and TeSys Giga 115-225 contactors. To be used for reversing and changeover assemblings. Without electrical interlocking. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLA9G
Product compatibilityLC1G300...475, LC1G205...245, LC1G265...500, LC1G115...225
Range compatibilityTeSys Giga
Electrical circuit typestar-delta
Poles description3P
RangeTeSys
Product or component typemechanical interlock
Accessory / separate part categoryinterlocking accessory
Range of productTeSys Giga
Interlocking typemechanical
Complementary
Depth140 mm
Width80 mm
Net weight0.15 kg
Height50 mm
Environment
Operating altitude5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage-60-80 °C
Pollution degree3 conforming to IEC 60947-1
IP degree of protectionIP20 conforming to IEC 60529
StandardsGB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation-25-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.3 cm
Package 1 Width8.5 cm
Package 1 Length18.0 cm
Package 1 Weight187.0 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight2.603 kg
