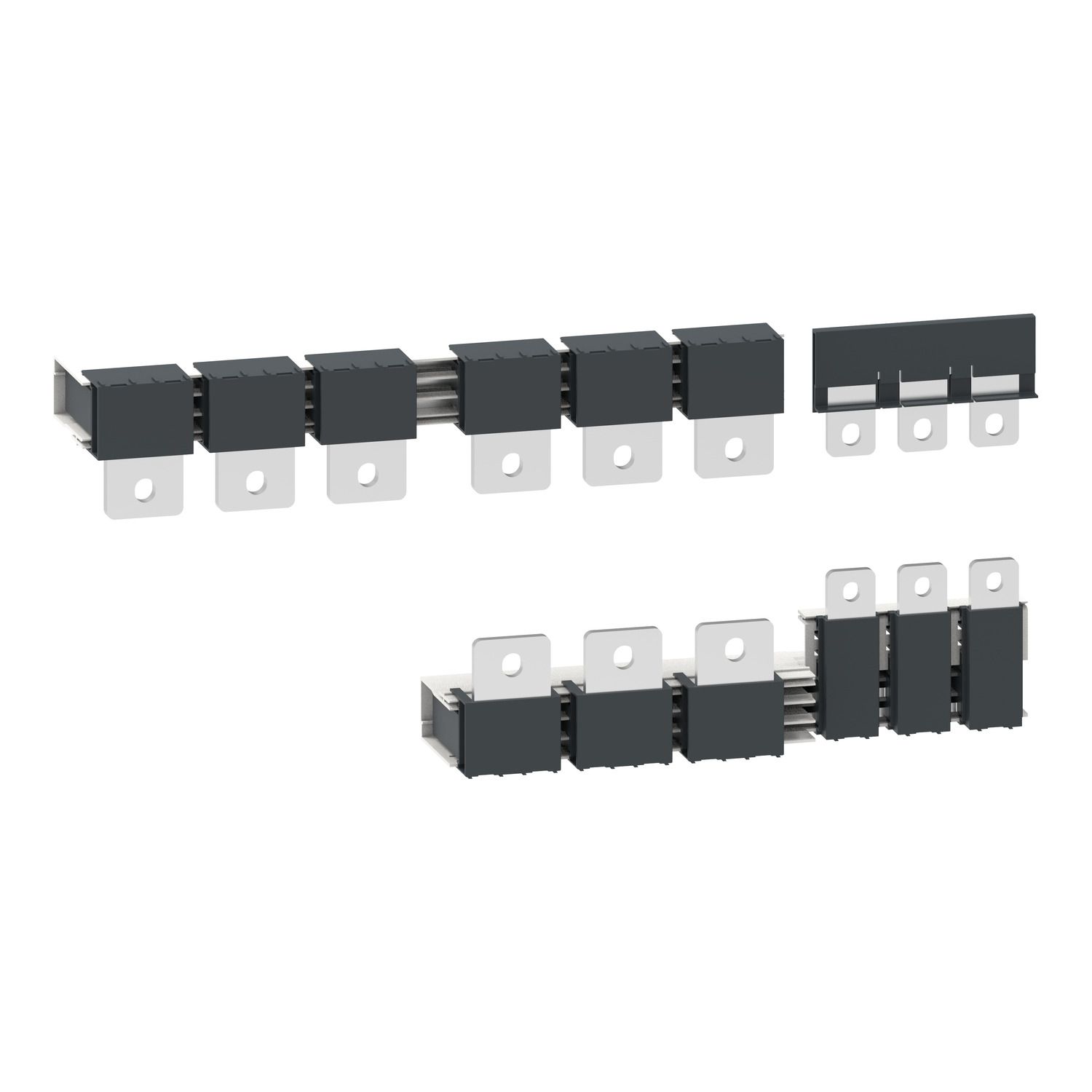

Picture of Star-Delta connection bar, for TeSys Giga contactor LC1G265-500 (Line, Delta & Star)
SKU:

LA9GSS330

Star-Delta connection bar, for TeSys Giga contactor LC1G265-500 (Line, Delta & Star)

Please Contact Sales to buy this Product. click here
Star-Delta connection bar, for TeSys Giga contactor LC1G265-500 (Line, Delta & Star)
  • Optimized panel design and simplified power terminal alignment saves total starter assembly time
  • IP20 cover provides enhanced safety to the complete starter or revers assemblies
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Jan-2025
Product environmental
Catalogue
End of life manual
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are star delta connection Kit for TeSys Giga contactor. To be used by Line-Delta-Star bars for TeSys Giga 265-330 contactors. They are sold by set of 1 part. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLA9G
Electrical circuit typestar-delta
Quantity per setset of 1
RangeTeSys
Product or component typeset of connections
Accessory / separate part categoryconnection accessory
Complementary
Product compatibilityLC1G265...500
Depth440 mm
Width150 mm
Poles description3P
Net weight2.0 kg
Range compatibilityTeSys Giga
Height65 mm
Environment
Operating altitude5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage-60-80 °C
StandardsEN/IEC 60947-4-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.5 cm
Package 1 Width15.0 cm
Package 1 Length44.0 cm
Package 1 Weight2.05 kg
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height73.5 cm
Package 2 Width60.0 cm
Package 2 Length80.0 cm
Package 2 Weight52.16 kg
