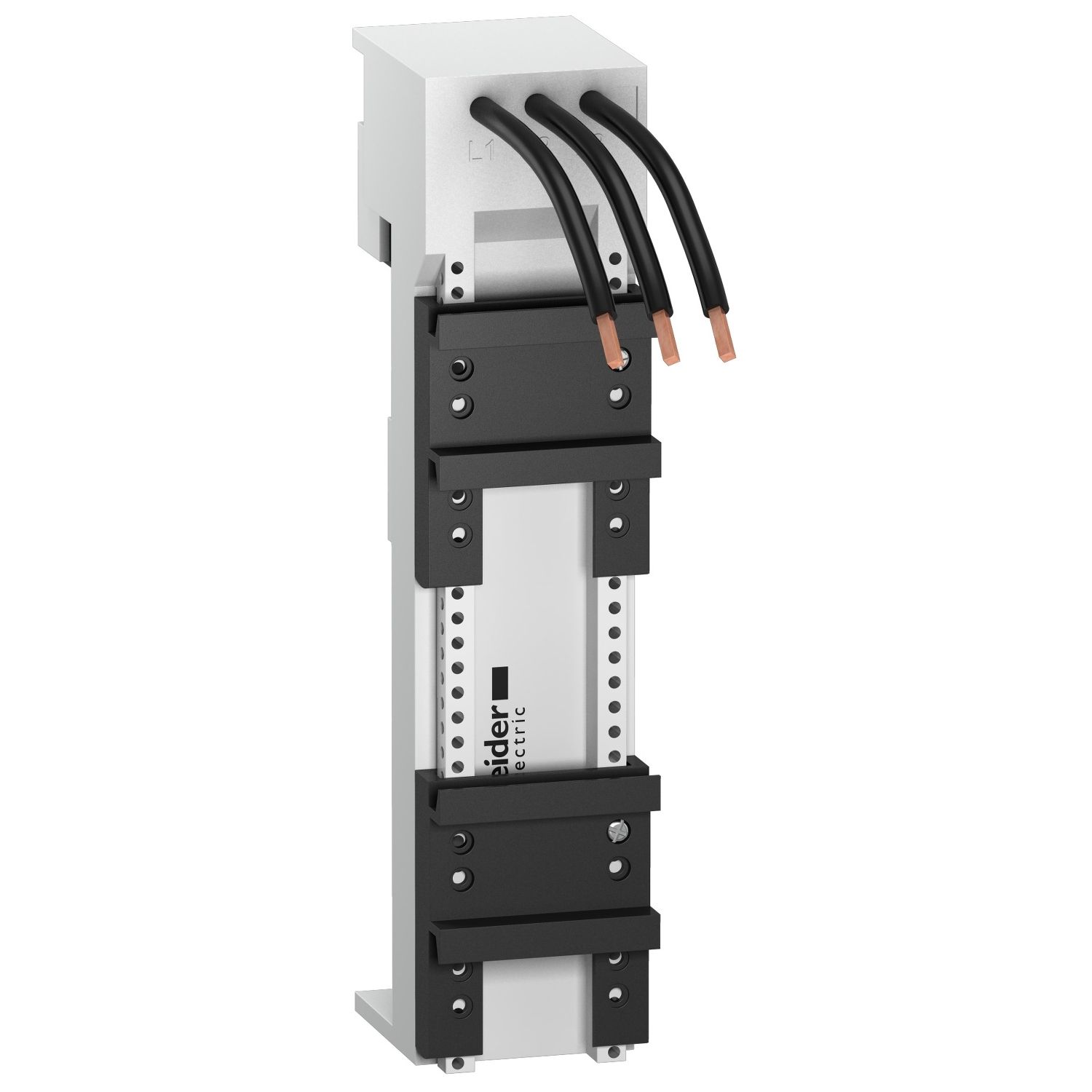

Picture of PLATE GV2 32A 45X200 IEC/UL FOR 60 BUSBAR INTERAXIS
SKU:

LA9ZA32434

PLATE GV2 32A 45X200 IEC/UL FOR 60 BUSBAR INTERAXIS

$85.07
Available for Shipping : 24-Nov-2024
PLATE GV2 32A 45X200 IEC/UL FOR 60 BUSBAR INTERAXIS
  • Done with grey surface treatment
  • It is compatible with 3 Poles TeSys
  • Devices can be powered anywhere within the panel
  • A straightforward layout that allows quick and simplified extensions and upgrades
  • Connection everywhere without drilling
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
Linergy busbar systems adaptors for TeSys U LUB12 and TeSys U LUB32. It applied to 6 mm² cable cross section and 1x3 Poles. The rated insulation voltage is 690V. The permissible current is 32A. It has grey surface treatment. It is compatible with LC1D, GV2LE, GV2ME,GV2P for Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, TeSys-GV2, TeSys-D. Sold in lots of 4 units. IP20 conforming to IEC 60529. It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Device short name LA9Z
Quantity per set set of 4
Number of ways 1 way
Range Linergy
Product name BZ
Product or component type adaptors for busbar systems
Range of product TeSys
Complementary
Product compatibility GV2ME, LC1D, GV2P, GV2LE
Depth 63 mm
Range compatibility Spacial, TeSys D, TeSys GV2, Prisma Pack, Prisma PH, Prisma P, Prisma G
Width 45 mm
Colour grey
Poles description 3P
[Ui] rated insulation voltage 690 V
Permissible current 32 A
Cable cross section 6-6 mm² - AWG 10
Height 200 mm
Busbar pitch 60 mm
Environment
IP degree of protection IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 11.500 cm
Package 1 Length 22.500 cm
Package 1 Weight 267.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 13.000 cm
Package 2 Width 11.500 cm
Package 2 Length 22.500 cm
Package 2 Weight 1.141 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.324 kg
Unit Type of Package 4 4
Number of Units in Package 4 192
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 68.972 kg
