SKU:

LA9ZA32621

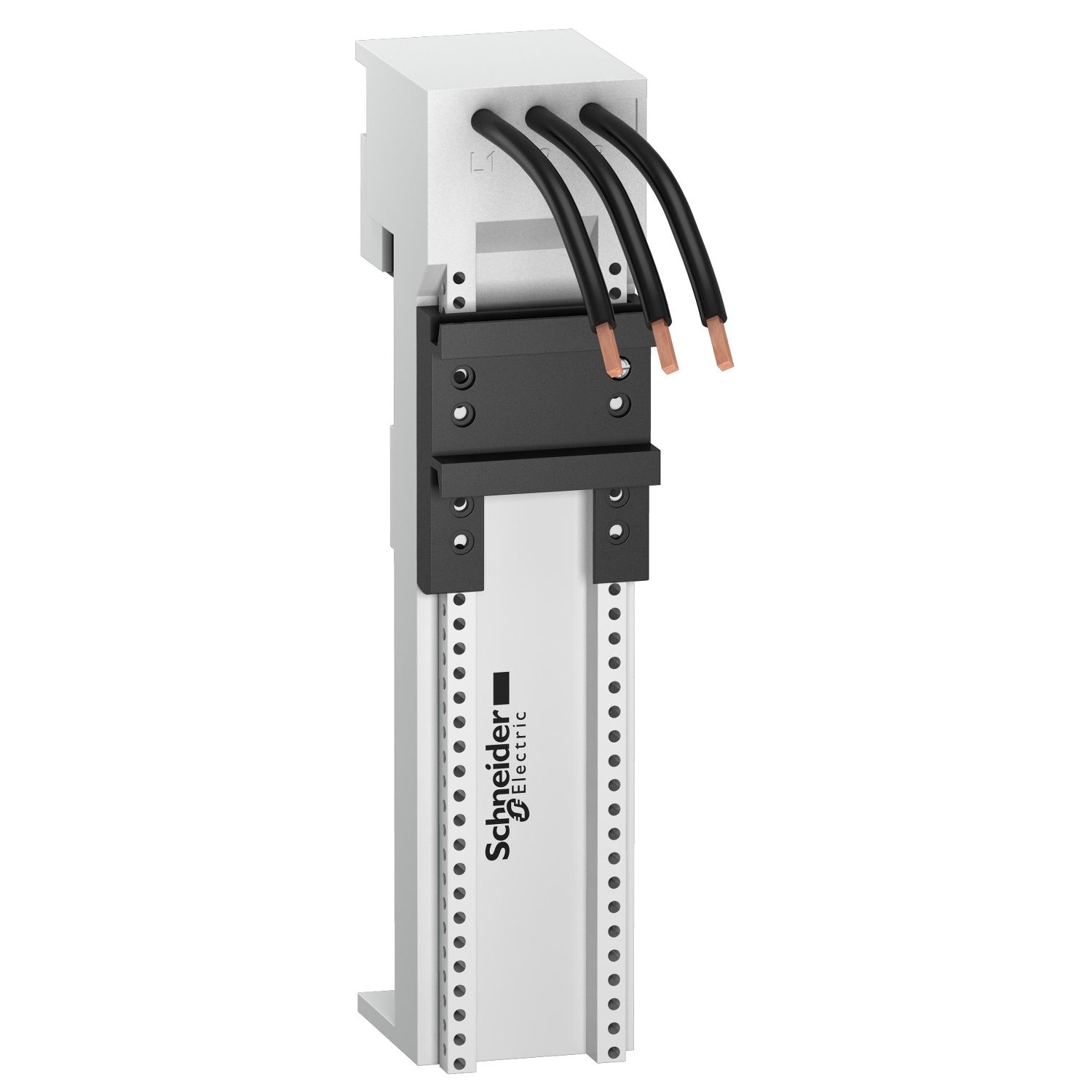

PLATE GV2 25A 45X200 IEC/UL FOR 60 BUSBAR INTERAXIS

$58.00

Qty:

PLATE GV2 25A 45X200 IEC/UL FOR 60 BUSBAR INTERAXIS

Estimated Delivery Date: 26-Sep-2024

Attribute name	Attribute value
Main
Device short name	LA9Z
Quantity per set	set of 4
Number of ways	1 way
Range	Linergy
Product name	BZ
Product or component type	adaptors for busbar systems
Range of product	TeSys
Complementary
Product compatibility	GV2P, LC1K, LC1D, GV2ME, LP4K, GV2LE
Depth	63 mm
Range compatibility	Spacial, TeSys K, TeSys D, TeSys GV2, Prisma Pack, Prisma PH, Prisma P, Prisma G
Width	45 mm
Colour	grey
Poles description	3P
[Ui] rated insulation voltage	690 V
Permissible current	25 A
Cable cross section	4-4 mm² - AWG 12
Height	200 mm
Busbar pitch	60 mm
Environment
IP degree of protection	IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.5 cm
Package 1 Width	11.5 cm
Package 1 Length	22.6 cm
Package 1 Weight	252 g
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	13.5 cm
Package 2 Width	11.5 cm
Package 2 Length	22.6 cm
Package 2 Weight	1.079 kg
Unit Type of Package 3	3
Number of Units in Package 3	24
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	6.966 kg
