SKU:

LA9ZA32623

PLATE GV2 32A 90X200 IEC/UL FOR 60 BUSBAR INTERAXIS

$160.31

Qty:

Available for Shipping : 24-Nov-2024

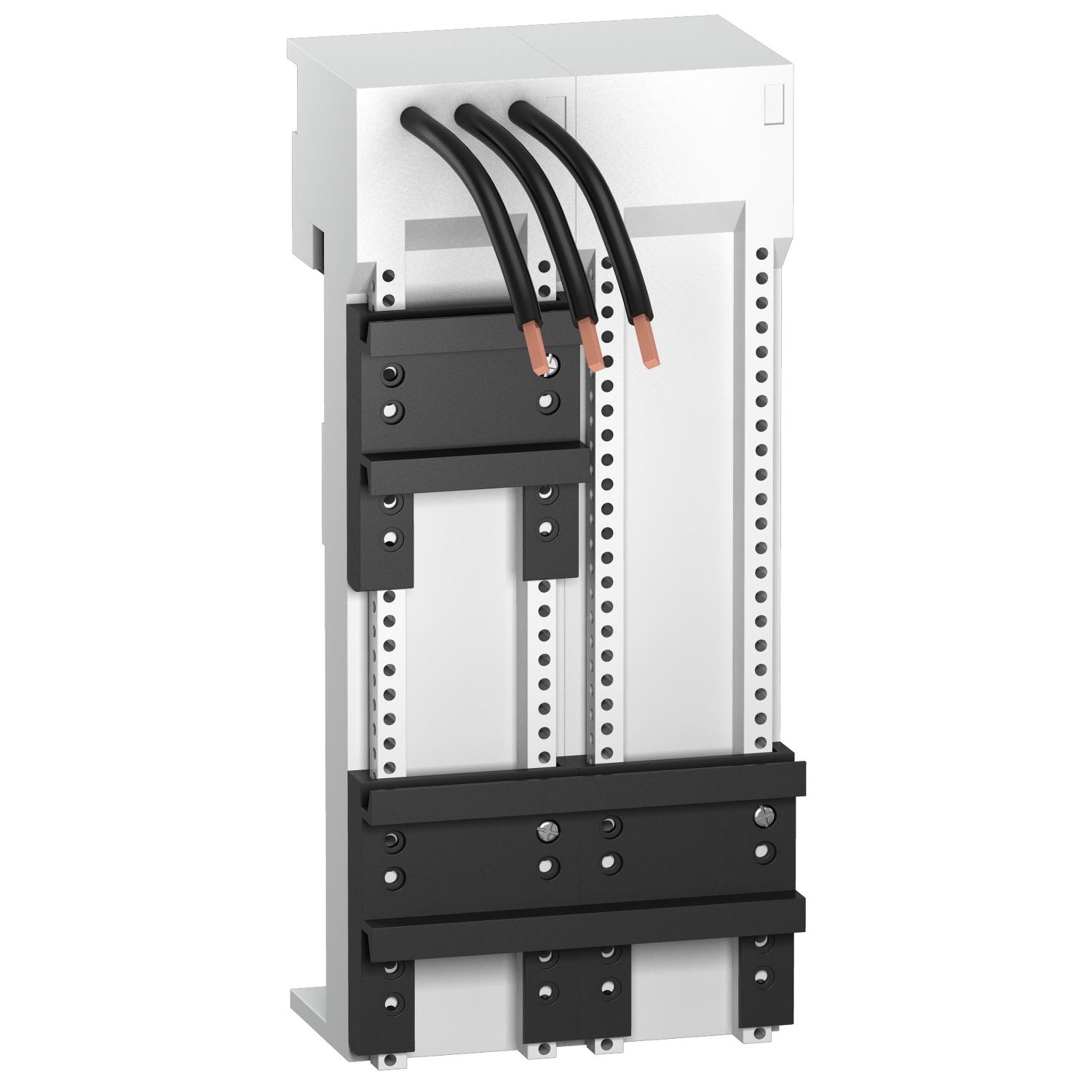

PLATE GV2 32A 90X200 IEC/UL FOR 60 BUSBAR INTERAXIS

Manufacturer: Schneider Electric

Product environmental

Catalogue

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	LA9Z
Quantity per set	set of 2
Number of ways	2 ways
Range	Linergy
Product name	BZ
Product or component type	adaptors for busbar systems
Range of product	TeSys, PowerPact multistandard
Complementary
Product compatibility	LC1D, GV2ME, GV2LE, GV2P
Depth	63 mm
Range compatibility	Spacial, TeSys D, TeSys GV2, Prisma Pack, Prisma PH, Prisma P, Prisma G
Width	90 mm
Colour	grey
Poles description	3P
[Ui] rated insulation voltage	690 V
Permissible current	32 A
Cable cross section	6-6 mm² - AWG 10
Height	200 mm
Busbar pitch	60 mm
Environment
IP degree of protection	IP20 conforming to IEC 60529
Standards	IEC, UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	10.9 cm
Package 1 Width	12.5 cm
Package 1 Length	22.3 cm
Package 1 Weight	1.325 kg
Unit Type of Package 2	2
Number of Units in Package 2	2
Package 2 Height	10.9 cm
Package 2 Width	12.5 cm
Package 2 Length	22.3 cm
Package 2 Weight	2.7 kg
