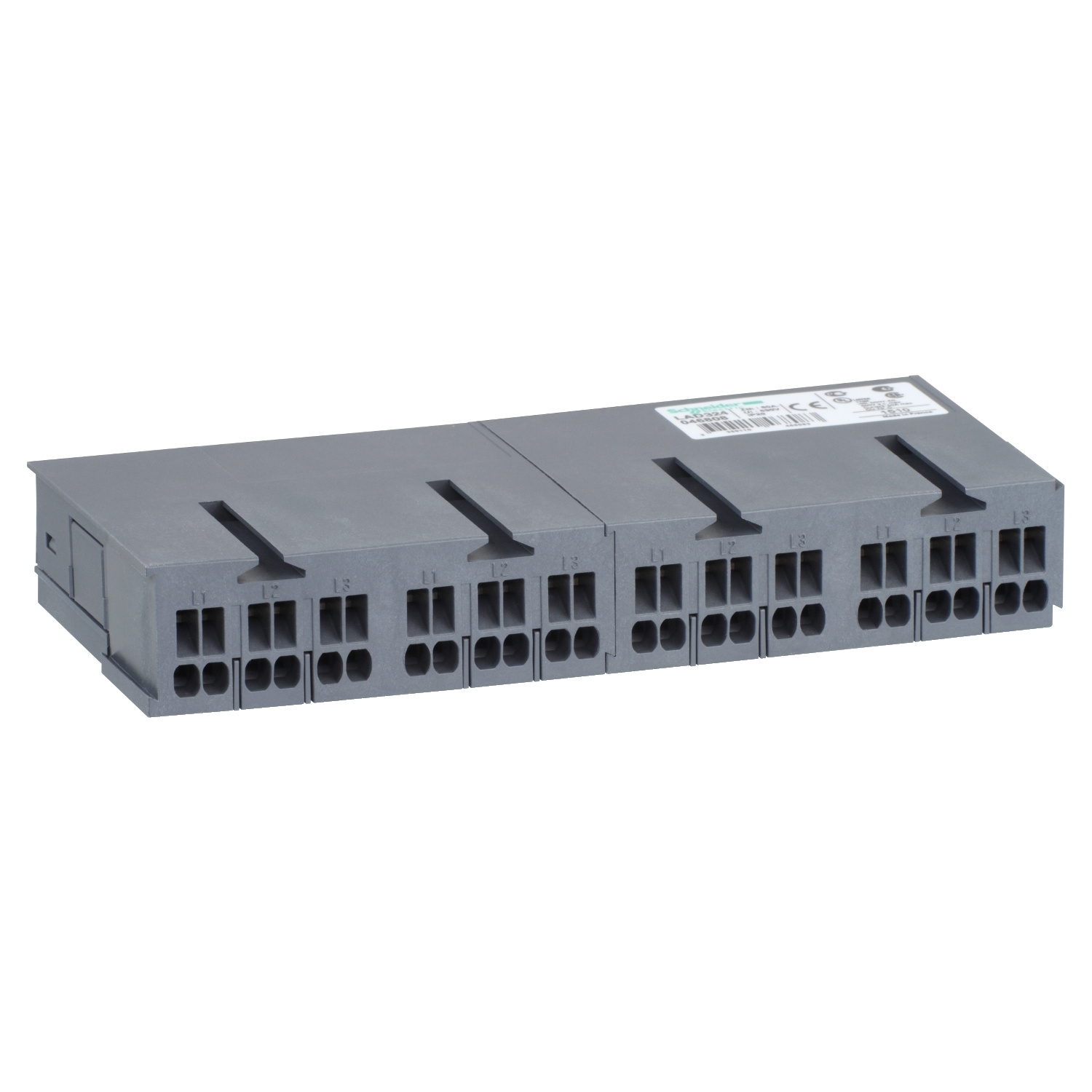

Picture of Power splitter box,TeSys Deca Fram 2,63A,for 4 starters composed by GV2ME**3/LS1D323 and LC1D**3 (spring terminal)
SKU:

LAD324

Power splitter box,TeSys Deca Fram 2,63A,for 4 starters composed by GV2ME**3/LS1D323 and LC1D**3 (spring terminal)

$110.58
Available for Shipping : 10-Dec-2024
Power splitter box,TeSys Deca Fram 2,63A,for 4 starters composed by GV2ME**3/LS1D323 and LC1D**3 (spring terminal)
  • Simple wring accessory for Tesys Deca
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys D power splitter block, for groups of motor starters made with motor circuit breakers GV2 or fuse carriers LS1D32. It permits the quick wiring of the upstream power circuit for 4 starters positionned side by side. To be used for GV2 and LS1D32 models with spring terminal connections. Upstream connection can be completed with an upstream terminal block LAD3B1 (to be ordered separately) for cables connection until 16mm². Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LAD
Product compatibility LAD32.
Poles description 3P
Product or component type power splitter box
Range of product TeSys fuse-disconnector
Complementary
Compatibility code LAD
[Ie] rated operational current 63 A
Number of outgoers 4
Net weight 0.24 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 8.000 cm
Package 1 Length 18.100 cm
Package 1 Weight 301.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.350 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 112.100 kg
