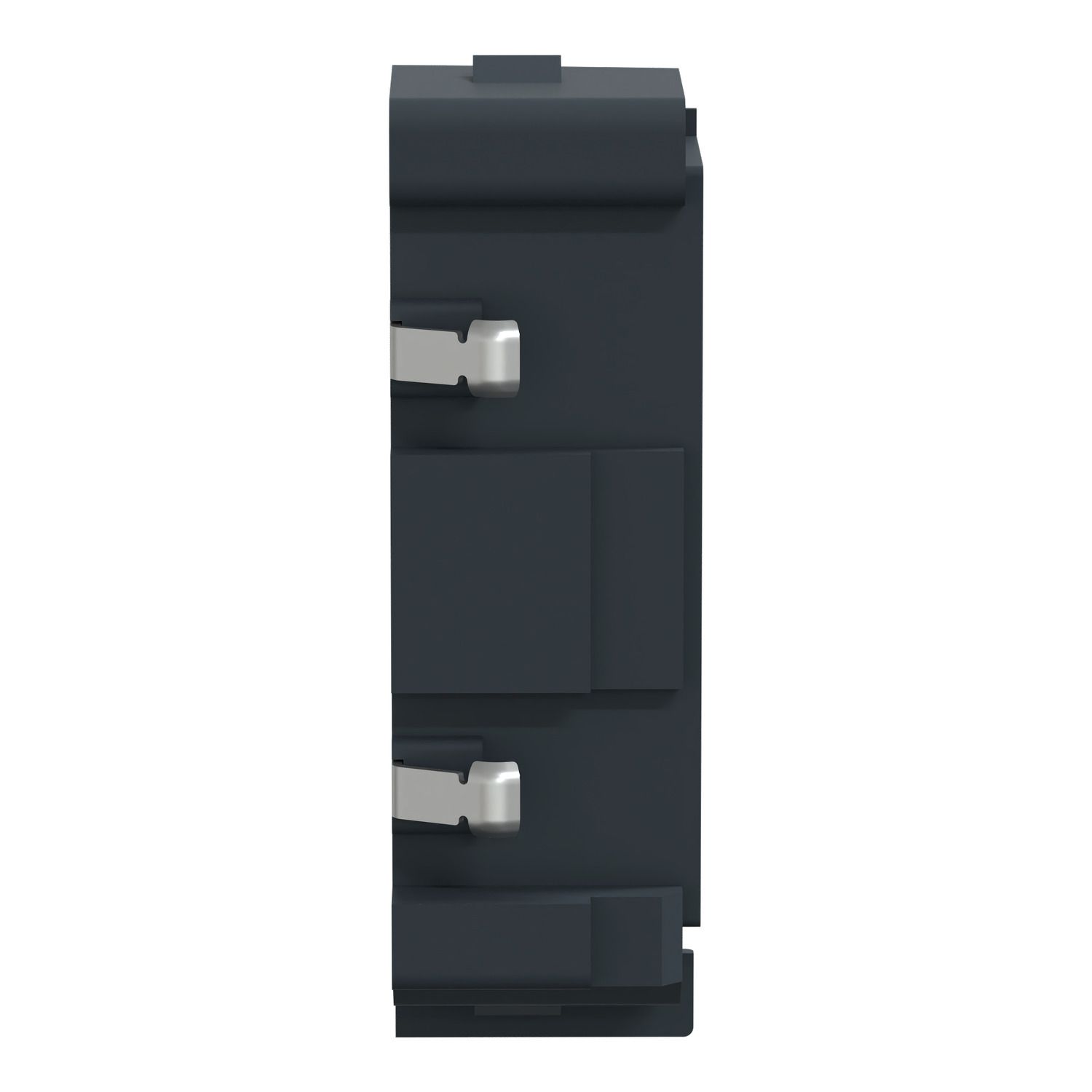

Picture of TeSys; TeSys Deca, Safety protective cover,TeSys Deca, for LC1D09…D80A and DT20…DT80A

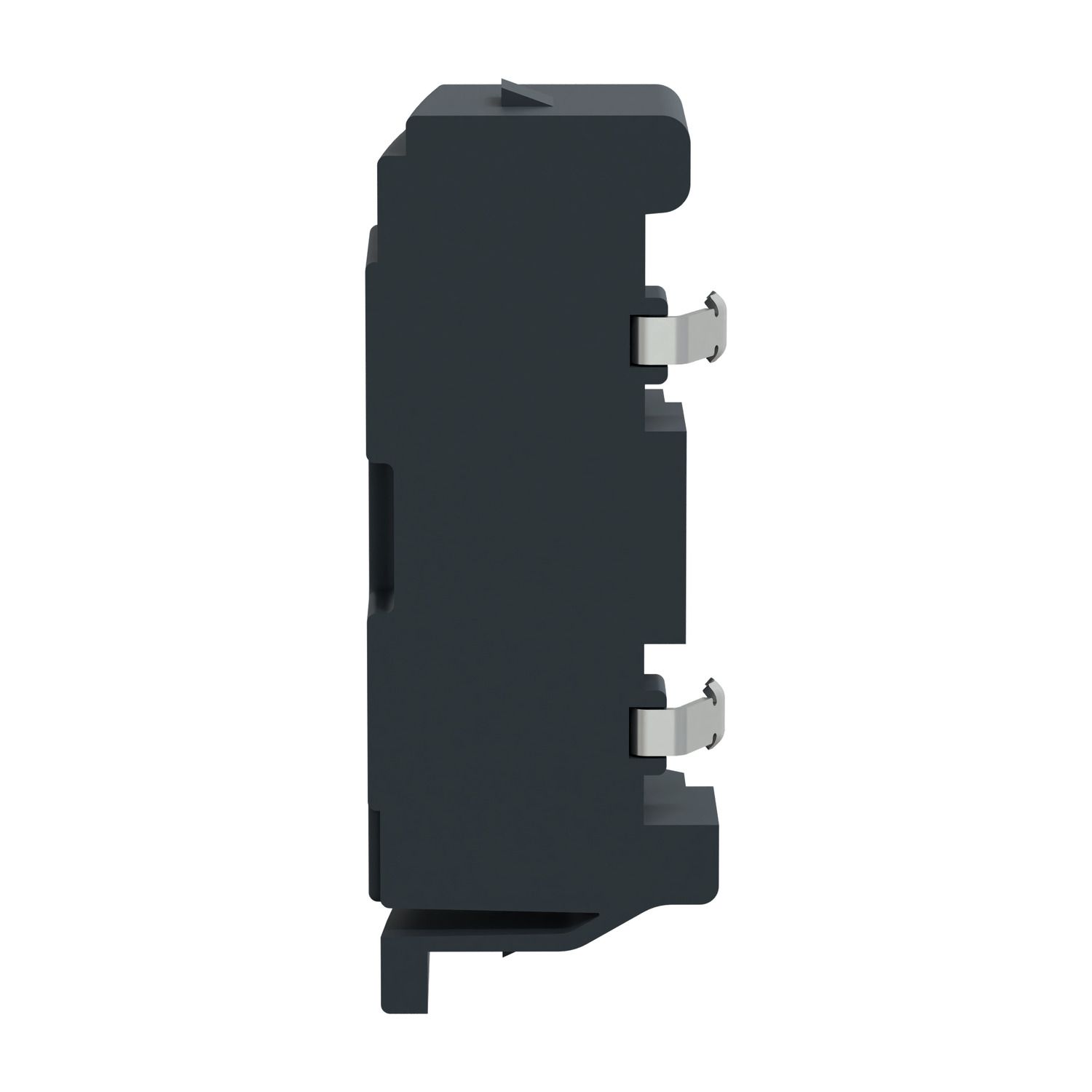

Picture of TeSys; TeSys Deca, Safety protective cover,TeSys Deca, for LC1D09…D80A and DT20…DT80A

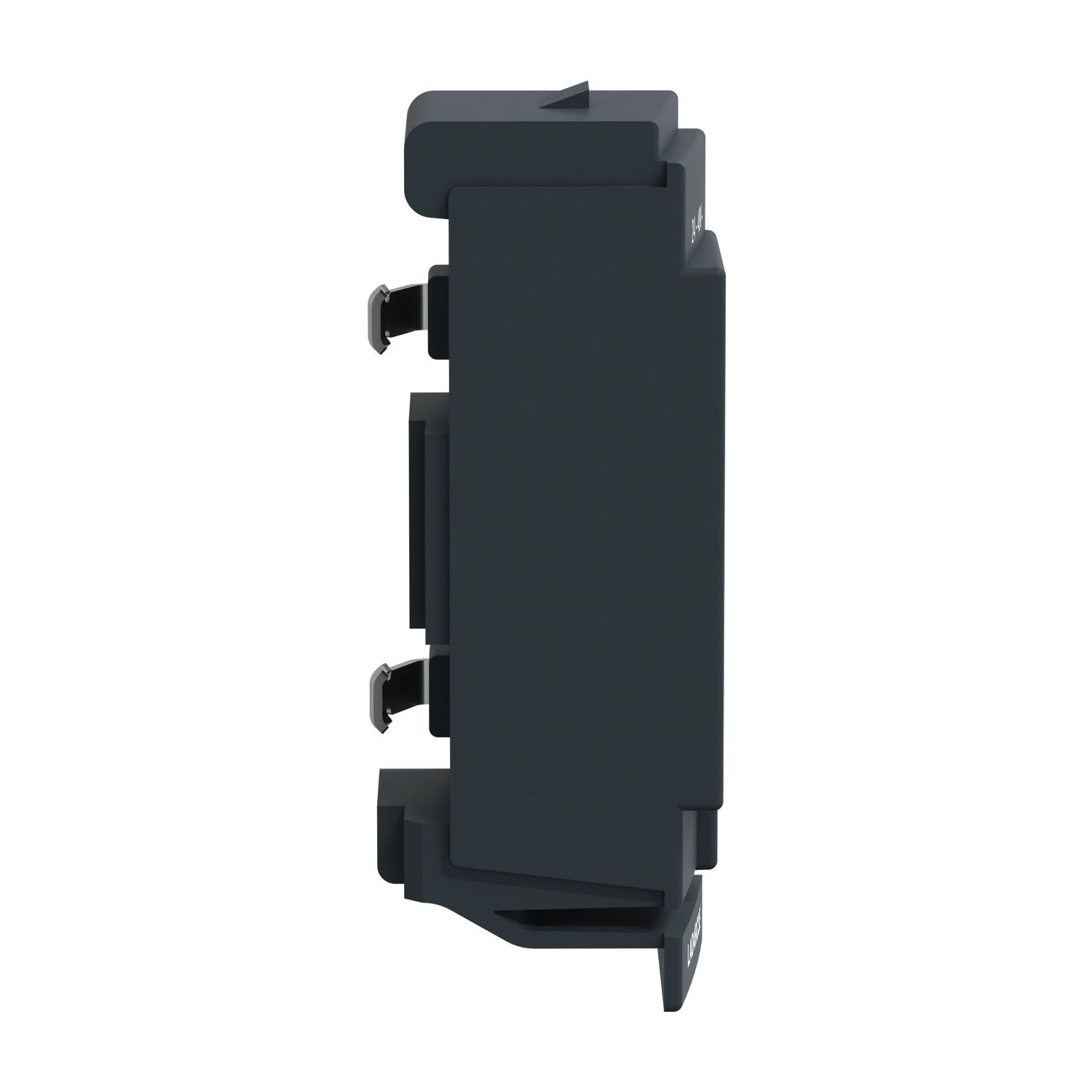

Picture of TeSys; TeSys Deca, Safety protective cover,TeSys Deca, for LC1D09…D80A and DT20…DT80A

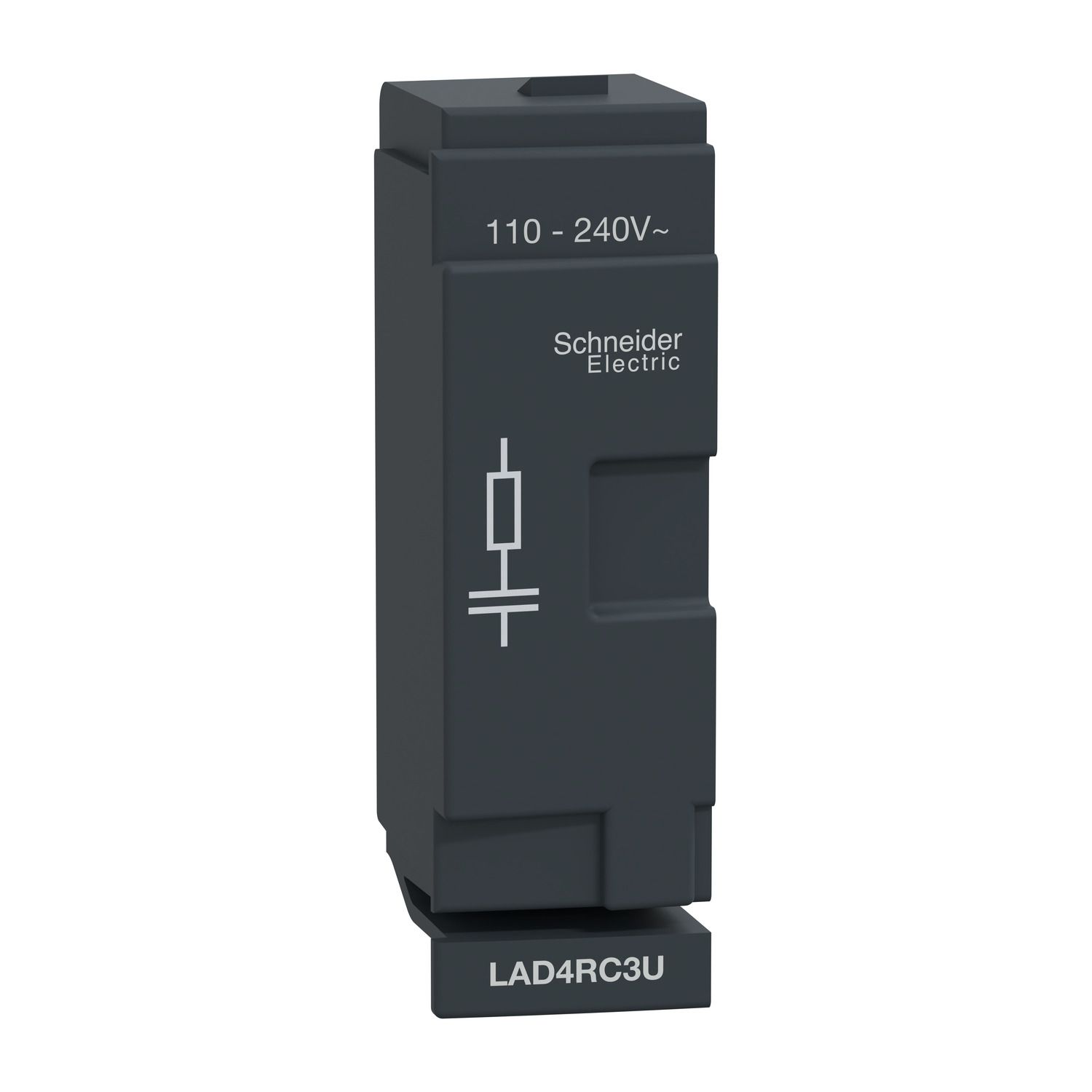

Picture of TeSys; TeSys Deca, Safety protective cover,TeSys Deca, for LC1D09…D80A and DT20…DT80A
Picture of TeSys; TeSys Deca, Safety protective cover,TeSys Deca, for LC1D09…D80A and DT20…DT80A
SKU:

LAD4RC3U

TeSys; TeSys Deca, Safety protective cover,TeSys Deca, for LC1D09…D80A and DT20…DT80A

$69.44
Available for Shipping : 17-Nov-2024
TeSys; TeSys Deca, Safety protective cover,TeSys Deca, for LC1D09…D80A and DT20…DT80A
  • New modern look & feel of all machines
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
TeSys D suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 380-415V AC control circuit voltage, it provides a RC protection limiting the transient voltage to 3 Uc max. Clip-on front mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LAD4
Product compatibility 4P LC1DT60A...DT80A, 3P LC1D40A...D80A
Range TeSys Deca, TeSys
Product or component type suppressor module
Range of product TeSys Deca
Complementary
Suppressor technology RC circuit
Colour dark grey
Compatibility code LAD4
Mounting mode by clips
Maximum peak voltage 3 Uc
Mounting location front
Net weight 0.04 kg
[Uc] control circuit voltage 110...240 V AC
Environment
Ambient air temperature for storage -40-80 °C
IP degree of protection IP2X conforming to IEC 60529
Standards GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, EN 60947-5-1, IEC 60947-5-1
Ambient air temperature for operation -25-55 °C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.500 cm
Package 1 Width 5.000 cm
Package 1 Length 8.000 cm
Package 1 Weight 16.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 6.500 cm
Package 2 Width 7.500 cm
Package 2 Length 12.500 cm
Package 2 Weight 186.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.070 kg
