SKU:

LAD703E

TeSys; TeSys Deca, thermal overload relays, remote electrical stop, 48 V DC/AC

$205.70
Available for Shipping : 04-Feb-2025

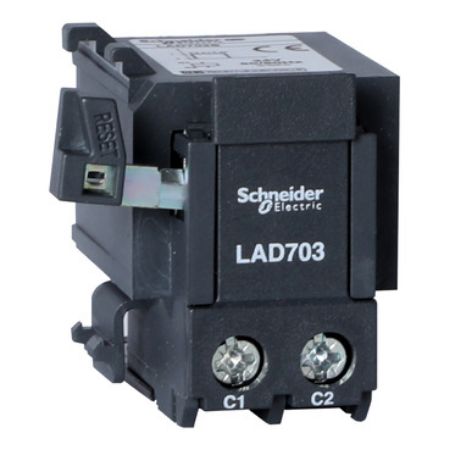

TeSys; TeSys Deca, thermal overload relays, remote electrical stop, 48 V DC/AC
  • Add on design to eensure product flexibility
  • New Product signature to align with TeSys Deca series
  • Easier to install and operate with multi-standard screws
  • Environmental performance of the product
Manufacturer: Schneider Electric
TeSys LRD remote control device for thermal overload relays LR3D01...D35/LRD313...LRD365/LR3D313...LR3D365/LRD01...35. It provides a 48V DC control circuit to perform a remote tripping and electrical reset. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LAD
Product compatibility LRD01...35, LR3D313...LR3D365, LRD313...LRD365, LR3D01...D35
Range TeSys
Product or component type electrical remote stop
Accessory / separate part category electrical accessory
[Uc] control circuit voltage 48 V DC, 48 V AC 50/60 Hz
Complementary
Compatibility code LAD
Inrush power in W 0-100 W
Net weight 0.09 kg
Maximum inrush power in VA 100 VA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.7 cm
Package 1 Width 4.8 cm
Package 1 Length 5.1 cm
Package 1 Weight 107.0 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.673 kg
