SKU:

LAD703M

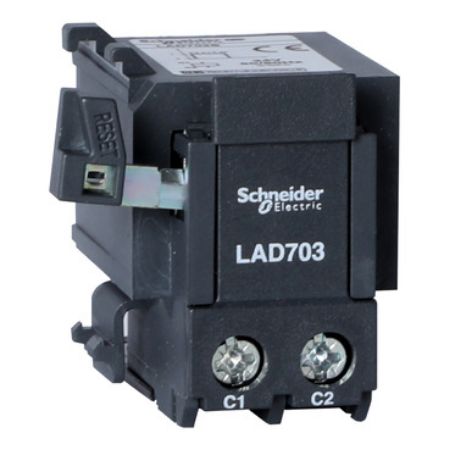

TeSys; TeSys Deca, thermal overload relays, remote electrical stop, 220...230 V DC/AC

$254.38
Available for Shipping : 24-Nov-2024
TeSys; TeSys Deca, thermal overload relays, remote electrical stop, 220...230 V DC/AC
  • Meet the need to remote reset Tesys Deca overload relay
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Manufacturer: Schneider Electric
TeSys LRD remote control device for thermal overload relays LRD/LR3D D01-D35, D04L-D32L, D313-D380, D313L-D365L and LR9D01-D32. It provides a 220-230V AC/DC control circuit to perform a remote tripping and electrical reset. Left-hand side mounting on the thermal overload relay by clip-on. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LAD
Product compatibility LR9G, LR3D01...D35, LRD01...35, LRD313...LRD365, LR3D313...LR3D365
Range TeSys
Product or component type electrical remote stop
Accessory / separate part category electrical accessory
[Uc] control circuit voltage 220/230 V DC, 220/230 V AC 50/60 Hz
Complementary
Compatibility code LAD
Inrush power in W 0-100 W
Net weight 0.09 kg
Maximum inrush power in VA 100 VA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 4.9 cm
Package 1 Length 5.2 cm
Package 1 Weight 108 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 3.617 kg
