SKU:

LAD7B106

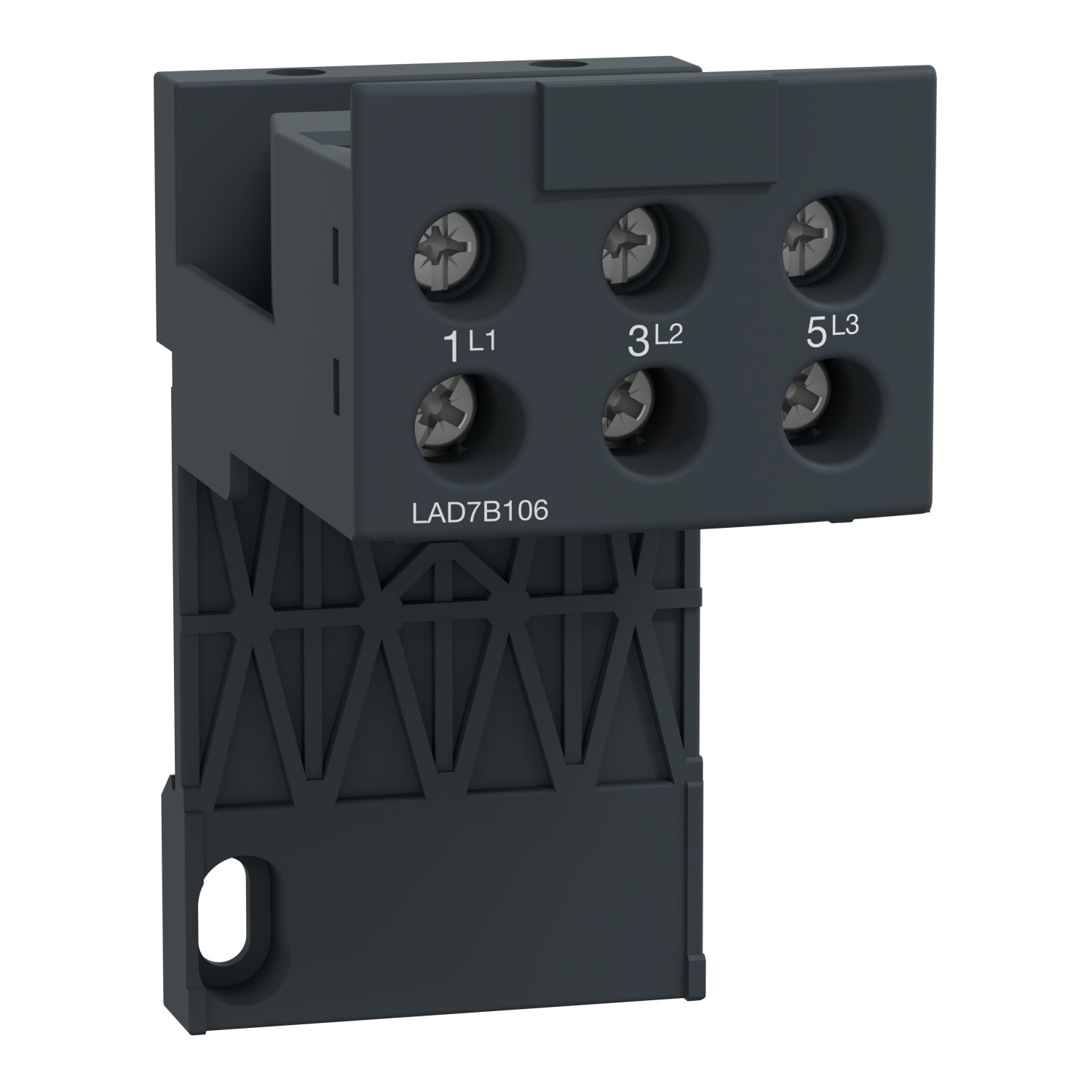

TeSys, Adapter terminal block,TeSys Deca,for separate mounting of LRD01...D35/LR3D02...D35/LR97D

$39.91
Available for Shipping : 03-Dec-2024
TeSys, Adapter terminal block,TeSys Deca,for separate mounting of LRD01...D35/LR3D02...D35/LR97D
  • Meet the need to mount Tesys Deca overload relay independent
  • Accessory for adapter terminal block
  • Separately mounting by screw terminal
  • Replacable
Manufacturer: Schneider Electric
TeSys LRD terminal block for mounting of thermal overload relays LRD01-D35, LR3D01-D35 and electronic overcurrent relays LR97D. To be used for a separate mounting between overload relay and contactor. It provides top connections with screw clamp terminals, clip-on fixing on 35 mm DIN-rail or fixing by screws. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LAD
Product compatibility LR3D01...D35, LRD01...35
Quantity per set set of 10
Range TeSys
Product or component type terminal block
Accessory / separate part category connection accessory
Complementary
Depth 80 mm
Width 45 mm
Compatibility code LAD
Net weight 0.1 kg
Height 85 mm
Connections - terminals screw terminals for lug
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.800 cm
Package 1 Width 9.000 cm
Package 1 Length 7.500 cm
Package 1 Weight 94.000 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.690 kg
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 60.900 kg
