Picture of TeSys; TeSys Deca, Auxiliary contact block, 1NC, front mounting, screw clamp terminals
SKU:

LADN01

TeSys; TeSys Deca, Auxiliary contact block, 1NC, front mounting, screw clamp terminals

$37.55
TeSys; TeSys Deca, Auxiliary contact block, 1NC, front mounting, screw clamp terminals
  • New modern look & feel of all machines
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
CAD
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

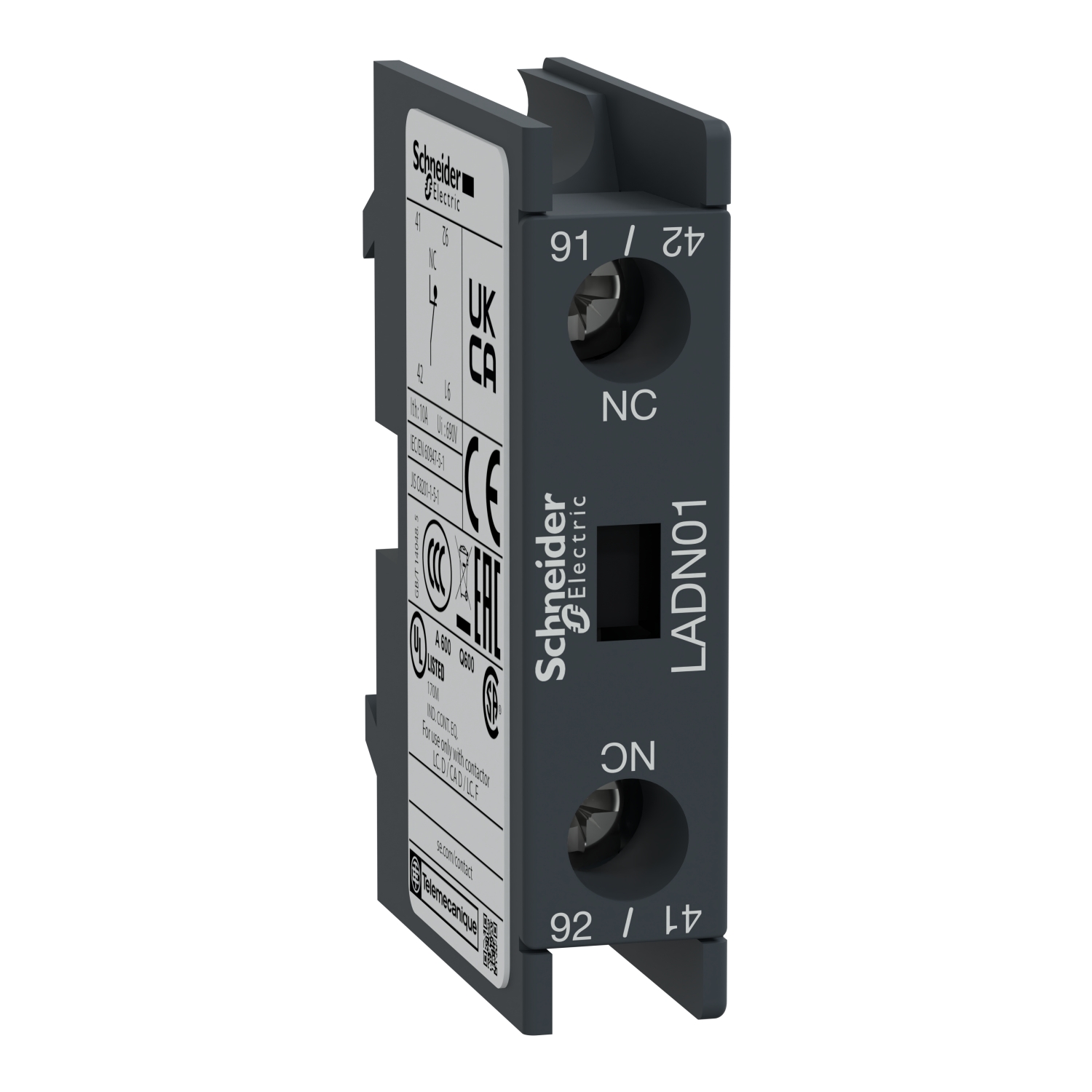

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F. It provides 1NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameLADN
Auxiliary contacts operationinstantaneous
RangeTeSys Deca, TeSys
[Ith] conventional free air thermal current10 A (at 60 °C)
Range of productTeSys Deca
[Ie] rated operational current0.1 A at 600 V DC-13, 0.55 A at 125 V DC-13, 1.04 A at 690 V AC-15, 6 A at 120 V AC-15
[Ui] rated insulation voltage600 V conforming to CSA, 600 V conforming to UL, 690 V conforming to IEC 60947-5-1
Pole contact composition1 NC
Mounting locationfront
Product nameTeSys Deca
Product or component typeauxiliary contact block
Range compatibilityTeSys Deca LC1D115, TeSys F LC1F, TeSys Deca LC1D65008, TeSys Deca LC1D40008, TeSys Deca LC1D80 4P, TeSys Deca LC1D80/95 3P
[Ue] rated operational voltage690 V AC 25...400 Hz
StandardsGB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Product certificationsUKCA, EAC, CCC, CSA, UL, CB
Complementary
Colourdark grey
Mechanical durability30 Mcycles
Tightening torque1.7 N.m - with screwdriver pozidriv No 2, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver flat Ø 6 mm
Minimum switching voltage17 V
Connections - terminalsscrew clamp terminals 2 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
Irms rated making capacity250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Protection typegG fuse 10 A
Height48 mm
Shielding continuity terminalwithout
Depth35 mm
Width13 mm
Net weight0.02 kg
Insulation resistance> 10 MOhm
Minimum switching current5 mA
Permissible short-time rating140 A 100 ms, 120 A 500 ms, 100 A 1 s
Non-overlap time1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Environment
Protective treatmentTH conforming to IEC 60068
Environmental characteristicnormal environment
Ambient air temperature for storage-60-80 °C
IP degree of protectionIP20 conforming to IEC 60529
Ambient air temperature for operation-5-60 °C
Operating altitude3000 m
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.1 cm
Package 1 Width4.2 cm
Package 1 Length2.7 cm
Package 1 Weight20.0 g
Unit Type of Package 22
Number of Units in Package 284
Package 2 Height15.0 cm
Package 2 Width15.0 cm
Package 2 Length40.0 cm
Package 2 Weight1.772 kg
