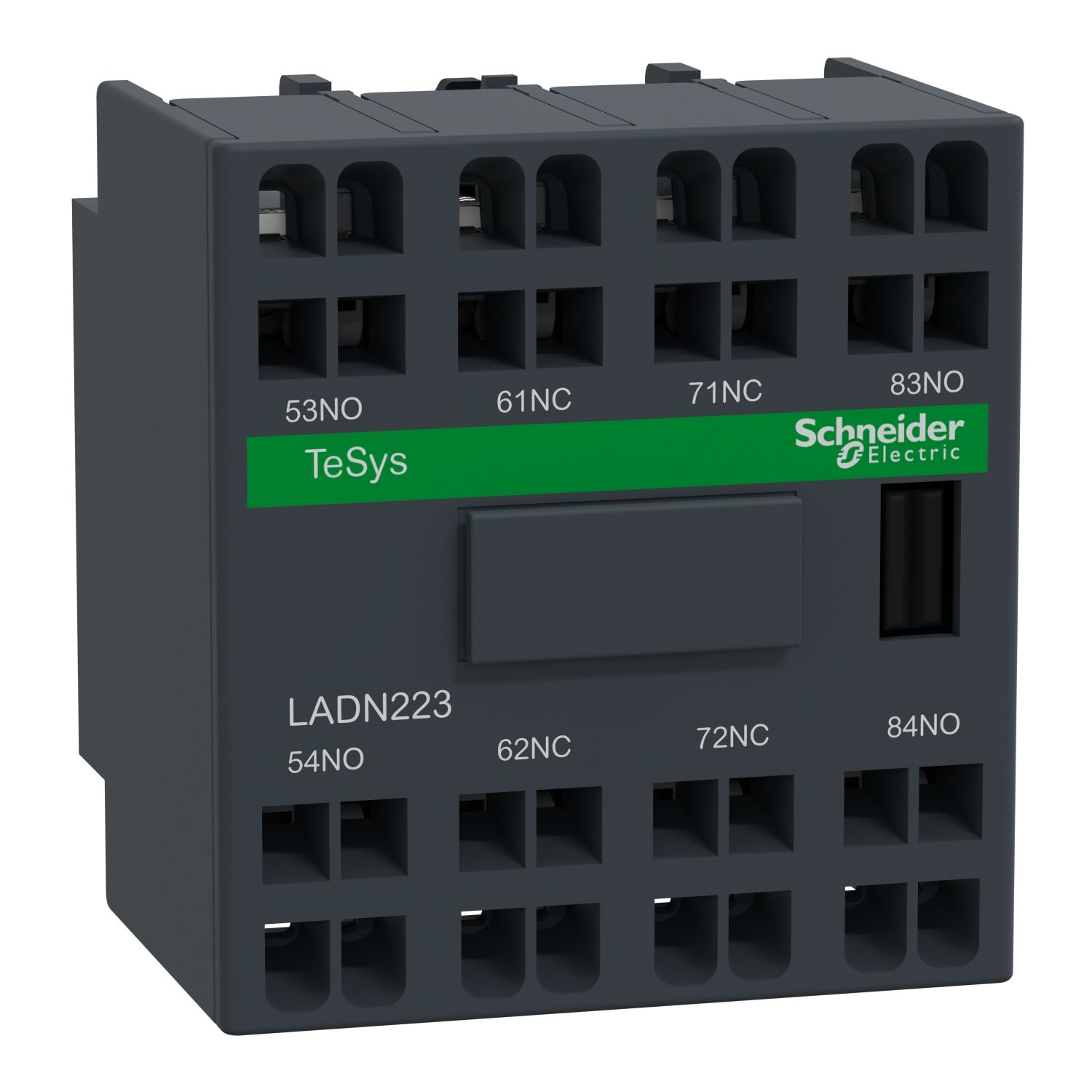

Auxiliary contact block, TeSys Deca, 2NO+2NC, front mounting, spring terminals

$80.89
Available for Shipping : 10-Dec-2024
Auxiliary contact block, TeSys Deca, 2NO+2NC, front mounting, spring terminals
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
CAD
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
TeSys D instantaneous auxiliary contact block, for contactors LC1D and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by spring terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LADN
Auxiliary contacts operation instantaneous
Range TeSys Deca, TeSys
[Ith] conventional free air thermal current 10 A (at 60 °C)
Range of product TeSys Deca
[Ie] rated operational current 0.1 A at 600 V DC-13, 0.55 A at 125 V DC-13, 1.04 A at 690 V AC-15, 6 A at 120 V AC-15
[Ui] rated insulation voltage 600 V conforming to CSA, 600 V conforming to UL, 690 V conforming to IEC 60947-5-1
Pole contact composition 2 NO + 2 NC
Mounting location front
Product name TeSys Deca
Product or component type auxiliary contact block
Range compatibility TeSys Deca LC1D, TeSys Deca CAD, TeSys D LC1D, TeSys D CAD
[Ue] rated operational voltage 690 V AC 25...400 Hz
Standards GB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Product certifications UKCA, EAC, CCC, CSA, UL, CB
Complementary
Colour dark grey
Mechanical durability 30 Mcycles
Minimum switching voltage 17 V
Connections - terminals spring terminals 2 cable(s) 2.5-2.5 mm²rigid, spring terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end
Irms rated making capacity 250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Protection type gG fuse 10 A
Height 48 mm
Shielding continuity terminal without
Depth 42 mm
Width 44 mm
Net weight 0.05 kg
Insulation resistance > 10 MOhm
Minimum switching current 5 mA
Permissible short-time rating 140 A 60 °C 100 ms, 120 A 60 °C 500 ms, 100 A 60 °C 1 s
Non-overlap time 1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Environment
Protective treatment TH conforming to IEC 60068
Environmental characteristic normal environment
Ambient air temperature for storage -60-80 °C
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -5-60 °C
Operating altitude 3000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 5 cm
Package 1 Length 4 cm
Package 1 Weight 67 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 5 cm
Package 2 Width 8.5 cm
Package 2 Length 26 cm
Package 2 Weight 676 g
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 11.394 kg

Related products

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 24V AC 50/60Hz coil, spring terminals

LC1D123B7
$108.62
View Detail

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 24V DC coil, spring terminals

LC1D123BD
$147.89
View Detail

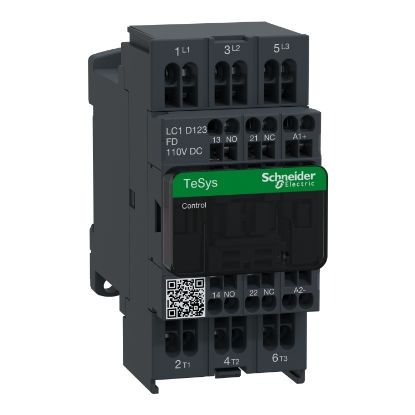

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 110V DC coil, spring terminals
