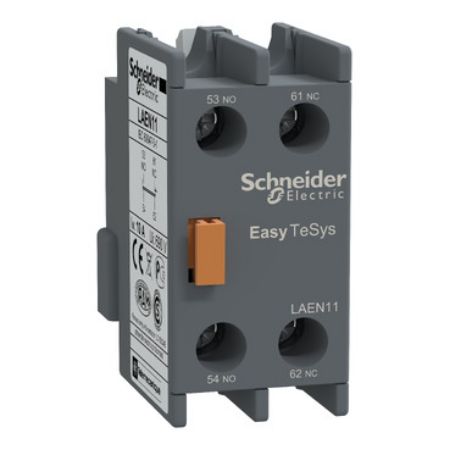

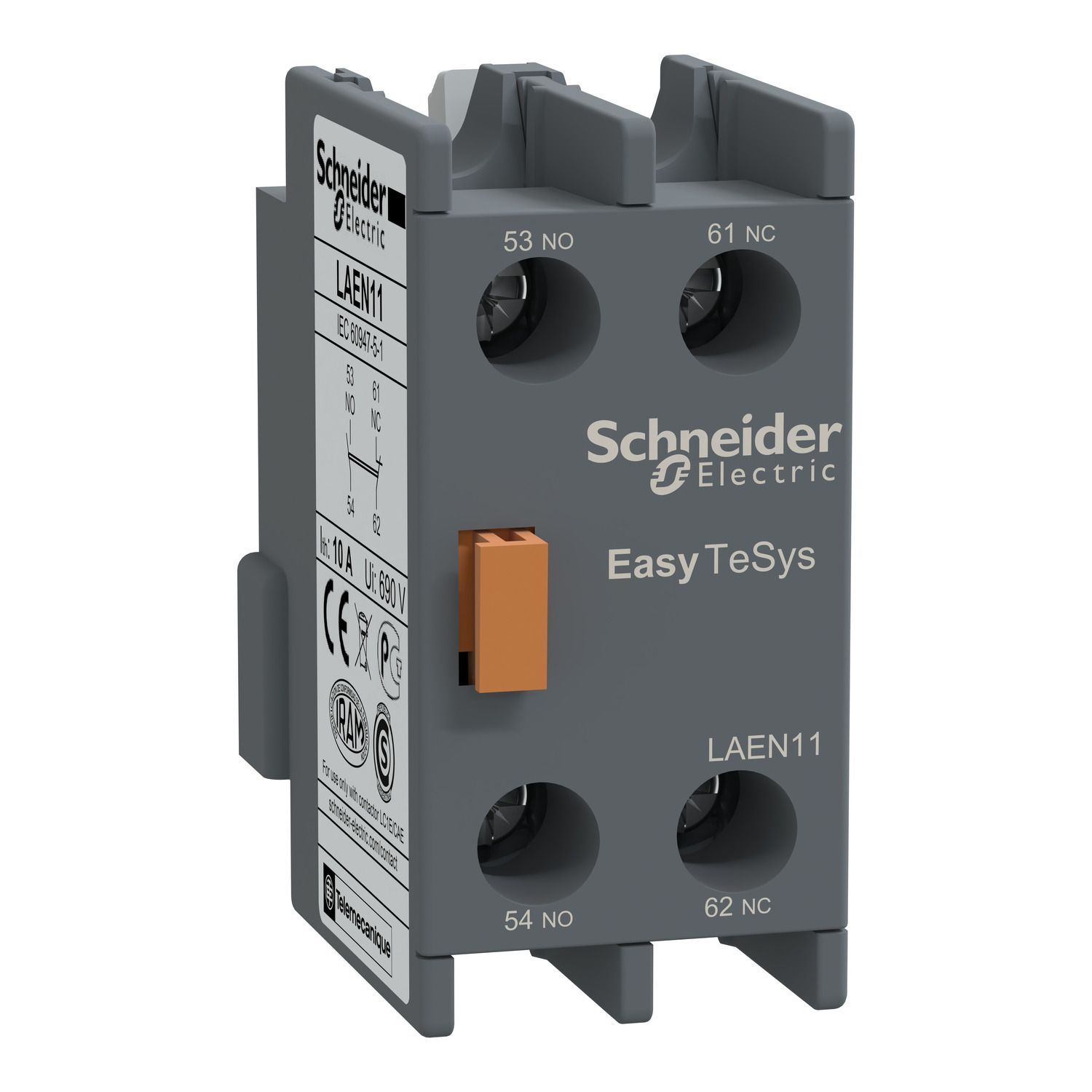

Auxiliary contact block,Easy TeSys Control,1NO+1NC,for LC1E/CAE

$8.52
Available for Shipping : 24-Nov-2024
Auxiliary contact block,Easy TeSys Control,1NO+1NC,for LC1E/CAE
  • Meet the need for more control contact for Easy TeSys TVS contactor and control relay
  • Easy choice for simple applications
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Catalogue
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
Add-on auxiliary contact block for EasyPact TVS LC1E contactors. It provides 1NO+1NC instantaneous contacts rated up to 10A 690V AC, connected by screw clamps terminals. It can be used in safety applications thanks to its NC certified mirror contacts. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LAEN
Device application signalling
Colour grey (RAL 7011)
Range Easy TeSys
Range of product Easy TeSys Control
Product or component type auxiliary contact block
Complementary
[Icw] rated short-time withstand current 140 A - 100 ms, 120 A - 500 ms, 100 A - 1 s
Auxiliary contacts operation instantaneous
Mechanical durability 10 Mcycles
Irms rated making capacity 140 A AC conforming to IEC 60947-5-1
Protection type gG fuse 10 A
[Ith] conventional free air thermal current 8 A (at 60 °C)
Switching voltage 17 V
[Ui] rated insulation voltage 690 V - for control circuit conforming to IEC 60947-5-1
Connections - terminals control circuit: screw clamp terminals 2 2.5-2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end, control circuit: screw clamp terminals 2 2.5-2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end, control circuit: screw clamp terminals 1 1-1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end, control circuit: screw clamp terminals 1 1-1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end
Pole contact composition 1 NO + 1 NC
Mounting location front
Net weight 0.035 kg
Insulation resistance > 10 MOhm
Range compatibility EasyPact EasyPact TVS LC1E
[Ue] rated operational voltage <= 690 V
Minimum switching current 5 mA
Non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Environment
Protective treatment TH conforming to IEC 60068
Environmental characteristic standard environment
Ambient air temperature for storage -60-80 °C
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -5-55 °C
Operating altitude 3000 m without derating
Standards IEC 60947-5-1
Product certifications GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.1 cm
Package 1 Width 4.8 cm
Package 1 Length 7.1 cm
Package 1 Weight 34.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.751 kg
