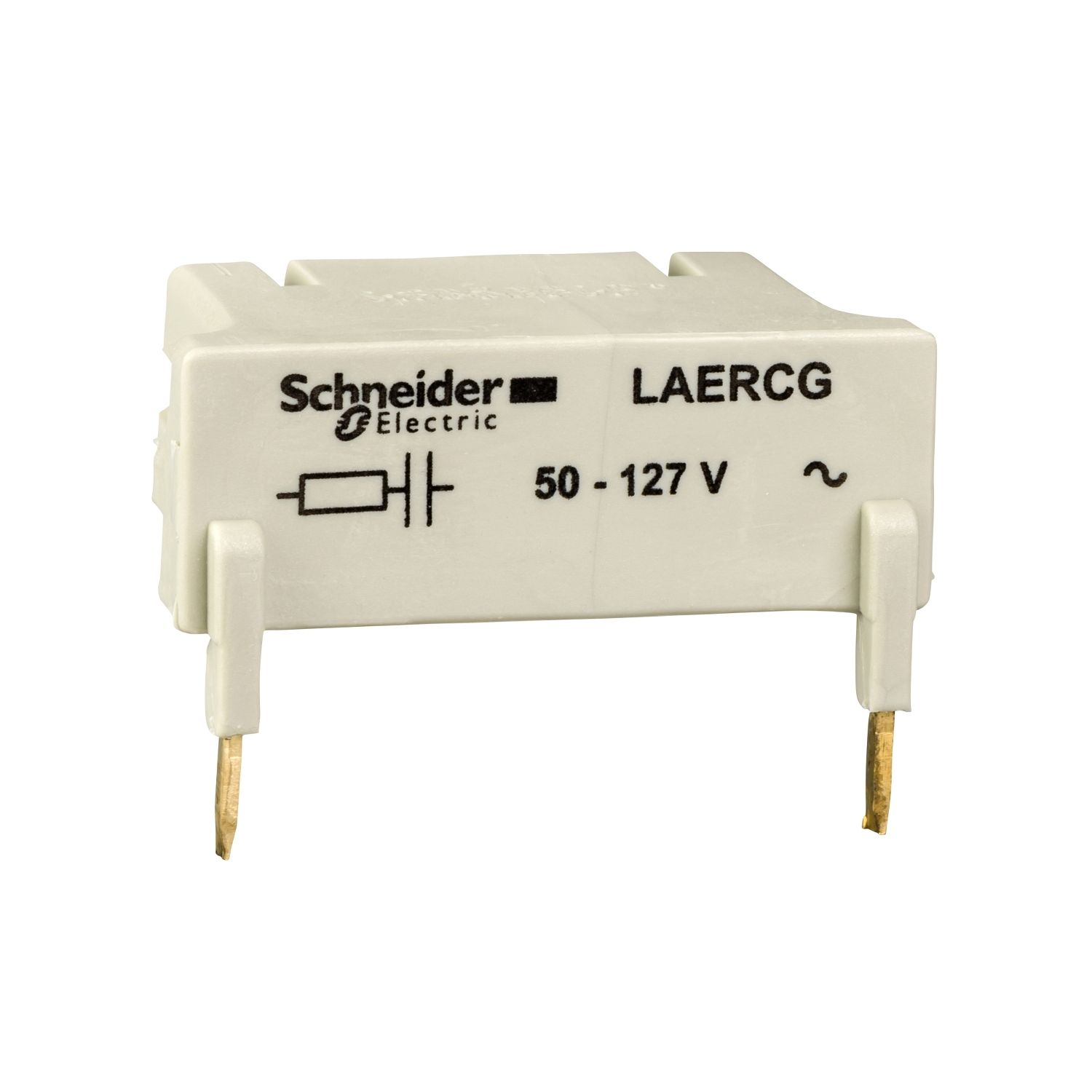

Picture of Suppressor module,Easy TeSys Control,RC circuit,50-127 V
SKU:

LAERCG

Suppressor module,Easy TeSys Control,RC circuit,50-127 V

$104.88
Available for Shipping : 24-Nov-2024
Suppressor module,Easy TeSys Control,RC circuit,50-127 V
  • Meet the need for coil protection for TeSys Deca contactor
  • Easy choice for simple applications
  • Digital customer experience for technical documents
  • Easier to install and operate
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Instruction sheet
End of life manual
Product Page Link
Product Data Sheet
EasyPact TVS suppressor module for coil protection of contactors LC1E06 to LC1E95. To be used for 50-127V AC control circuit voltage, it provides RC protection limiting the transient voltage to 3 Uc max. Clip-on mounting on the front of the contactor breaker, connection to the coil screw terminals. It provides IP 20 conforming to IEC 60529 protection degree. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LAERC
Product compatibility LC1E06...E95
Range Easy TeSys
Product or component type suppressor module
Range of product Easy TeSys Control
Complementary
Suppressor technology RC circuit
Depth 33 mm
Width 44 mm
Mounting mode clip-on
Maximum peak voltage 3 Uc <= 400 Hz
Mounting location front
Net weight 0.025 kg
[Uc] control circuit voltage 50...127 V AC 50/60 Hz
Environment
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -60-80 °C
IP degree of protection IP20 conforming to IEC 60529
Standards IEC 60947-5-1
Product certifications GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 4.100 cm
Package 1 Length 2.700 cm
Package 1 Weight 23.000 g
Unit Type of Package 2 2
Number of Units in Package 2 78
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.985 kg

Related products

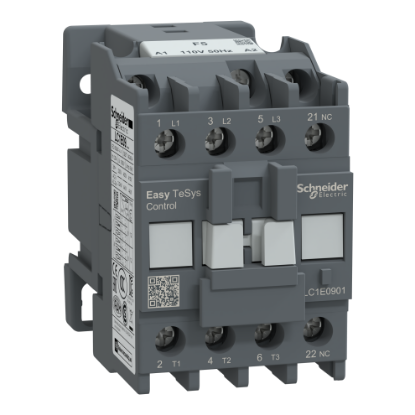

Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,9A,110V AC coil,50Hz,1NC auxiliary contact

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,9A,110V AC coil,50Hz,1NC auxiliary contact

LC1E0901F5
$27.72
View Detail

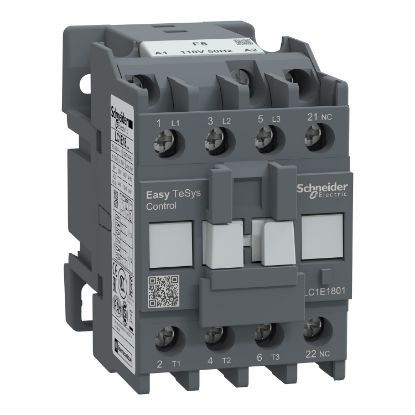

Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,18A,110V AC coil,50Hz,1NC auxiliary contact

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,18A,110V AC coil,50Hz,1NC auxiliary contact

LC1E1801F5
$41.52
View Detail

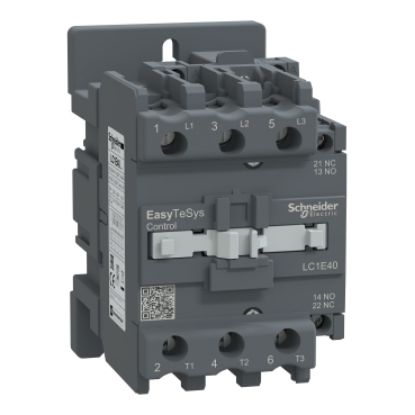

Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,40A,110V AC coil,50Hz
