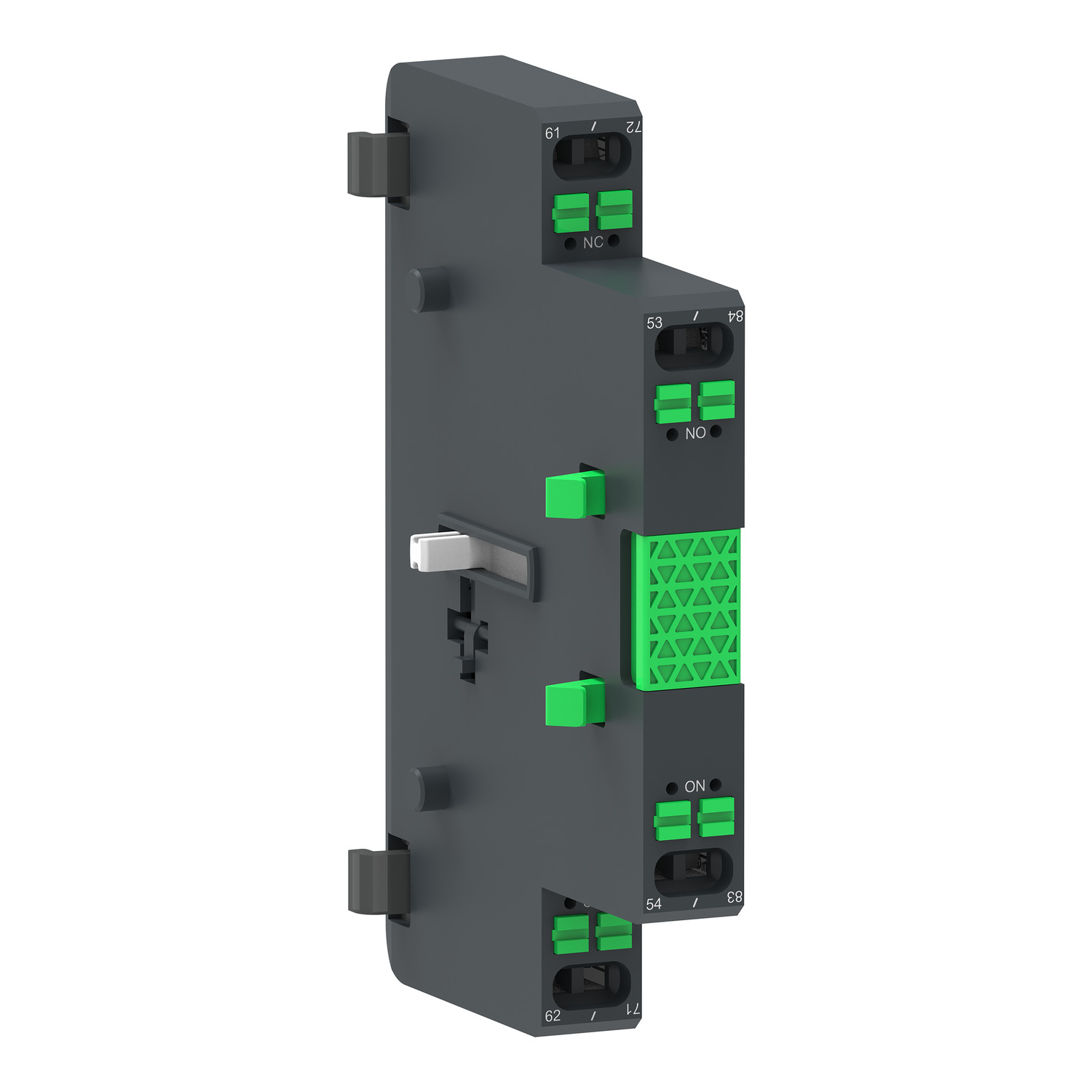

Picture of Auxiliary contact block,TeSys Giga contactor,1NO+1NC,side mounting,push-in terminals
SKU:

LAG8N113

Auxiliary contact block,TeSys Giga contactor,1NO+1NC,side mounting,push-in terminals

$52.10
Available for Shipping : 14-Nov-2024
Auxiliary contact block,TeSys Giga contactor,1NO+1NC,side mounting,push-in terminals
  • Max 4NO+4NC auxiliary contacts options provide flexibility to address your various control circuit needs
  • Choice of screw/spring connection for control terminals provides flexibility, and reduced assembly/installation time
  • Compatible with the whole range of LC1G contactors, simple to select, choose means less inventory
  • Default NC aux contact are mechanically linked mirror contacts to ensure safety chain
  • Highly reliable and suitable for 17V 1mA to address more challenging specific control applications
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Catalogue
Declaration of conformity
End of life manual
User guide
Product Page Link
Product Data Sheet
These accessories are auxiliary contact block 1NO+1NC for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LAG8N
Auxiliary contacts operation instantaneous
Pole contact composition 1 NO + 1 NC
Range TeSys
Connections - terminals screw clamp terminals0.75-2.5 mm²flexible with cable end, screw clamp terminals0.75-2.5 mm²solid stranded without cable end
Product or component type auxiliary contact block
Range compatibility TeSys G LC1G
Range of product TeSys G
Complementary
Depth 84.8 mm
Width 15.4 mm
Mechanical durability 8 Mcycles
Minimum switching voltage 17 V
[Ui] rated insulation voltage 500 V - certifications UL, 500 V - certifications CSA, 500 V conforming to IEC 60947-5-1
Mounting location side
Net weight 0.05 kg
Irms rated making capacity 250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Insulation resistance > 10 MOhm
Protection type gG fuse 10 A
[Ue] rated operational voltage 500 V AC 25...400 Hz
[Ith] conventional free air thermal current 10 A (at 60 °C)
Height 55.8 mm
Minimum switching current 1 mA
Permissible short-time rating 140 A 60 °C 100 ms, 120 A 60 °C 500 ms, 100 A 60 °C 1 s
Non-overlap time 1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Environment
Operating altitude 3000 m
Protective treatment TH
Ambient air temperature for storage -60-80 °C
IP degree of protection IP20 conforming to IEC 60529
Standards GB 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Ambient air temperature for operation -25-60 °C
Product certifications EAC, EU-RO-MR by DNV-GL, UKCA, CE, cULus, CCC, CB Scheme
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.400 cm
Package 1 Width 6.700 cm
Package 1 Length 9.500 cm
Package 1 Weight 59.000 g
Unit Type of Package 2 2
Number of Units in Package 2 64
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.969 kg
