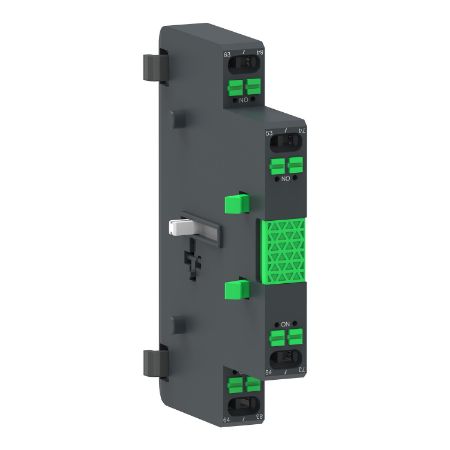

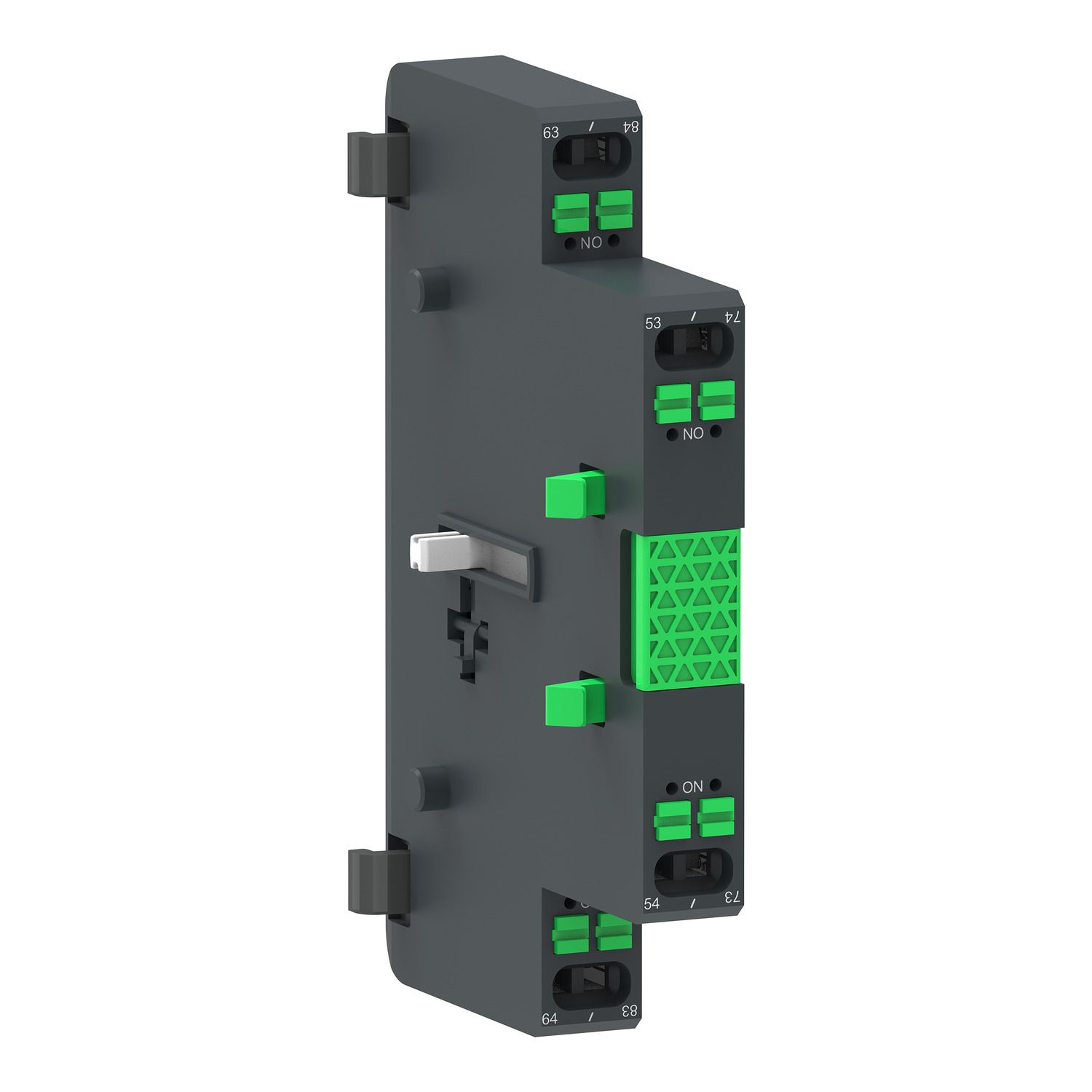

Picture of Auxiliary contact block,TeSys Giga contactor,2NO,lateral face side mounting,push-in terminals
SKU:

LAG8N203

Auxiliary contact block,TeSys Giga contactor,2NO,lateral face side mounting,push-in terminals

Please Contact Sales to buy this Product. click here
Auxiliary contact block,TeSys Giga contactor,2NO,lateral face side mounting,push-in terminals
  • Max 4NO+4NC auxiliary contacts options provide flexibility to address your various control circuit needs
  • Choice of screw/spring connection for control terminals provides flexibility, and reduced assembly/installation time
  • Compatible with the whole range of LC1G contactors, simple to select, choose means less inventory
  • Default NC aux contact are mechanically linked mirror contacts to ensure safety chain
  • Highly reliable and suitable for 17V 1mA to address more challenging specific control applications
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Instruction sheet
Catalogue
Declaration of conformity
End of life manual
User guide
Product Page Link
Product Data Sheet
These accessories are auxiliary contact block 2NO for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLAG8N
Auxiliary contacts operationinstantaneous
Pole contact composition2 NO
RangeTeSys
Connections - terminalsscrew clamp terminals0.75-2.5 mm²flexible with cable end, screw clamp terminals0.75-2.5 mm²solid stranded without cable end
Product or component typeauxiliary contact block
Range compatibilityTeSys G LC1G
Range of productTeSys G
Complementary
Depth84.8 mm
Width15.4 mm
Mechanical durability8 Mcycles
Minimum switching voltage17 V
[Ui] rated insulation voltage500 V - certifications UL, 500 V - certifications CSA, 500 V conforming to IEC 60947-5-1
Mounting locationside
Net weight0.05 kg
Irms rated making capacity250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Insulation resistance> 10 MOhm
Protection typegG fuse 10 A
[Ue] rated operational voltage500 V AC 25...400 Hz
[Ith] conventional free air thermal current10 A (at 60 °C)
Height55.8 mm
Minimum switching current1 mA
Permissible short-time rating140 A 60 °C 100 ms, 120 A 60 °C 500 ms, 100 A 60 °C 1 s
Non-overlap time1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Environment
Operating altitude3000 m
Protective treatmentTH
Ambient air temperature for storage-60-80 °C
IP degree of protectionIP20 conforming to IEC 60529
StandardsGB 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Ambient air temperature for operation-25-60 °C
Product certificationsEAC, EU-RO-MR by DNV-GL, UKCA, CE, cULus, CCC, CB Scheme
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.1 cm
Package 1 Width6.5 cm
Package 1 Length9.3 cm
Package 1 Weight57 g
Unit Type of Package 22
Number of Units in Package 264
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight3.893 kg
