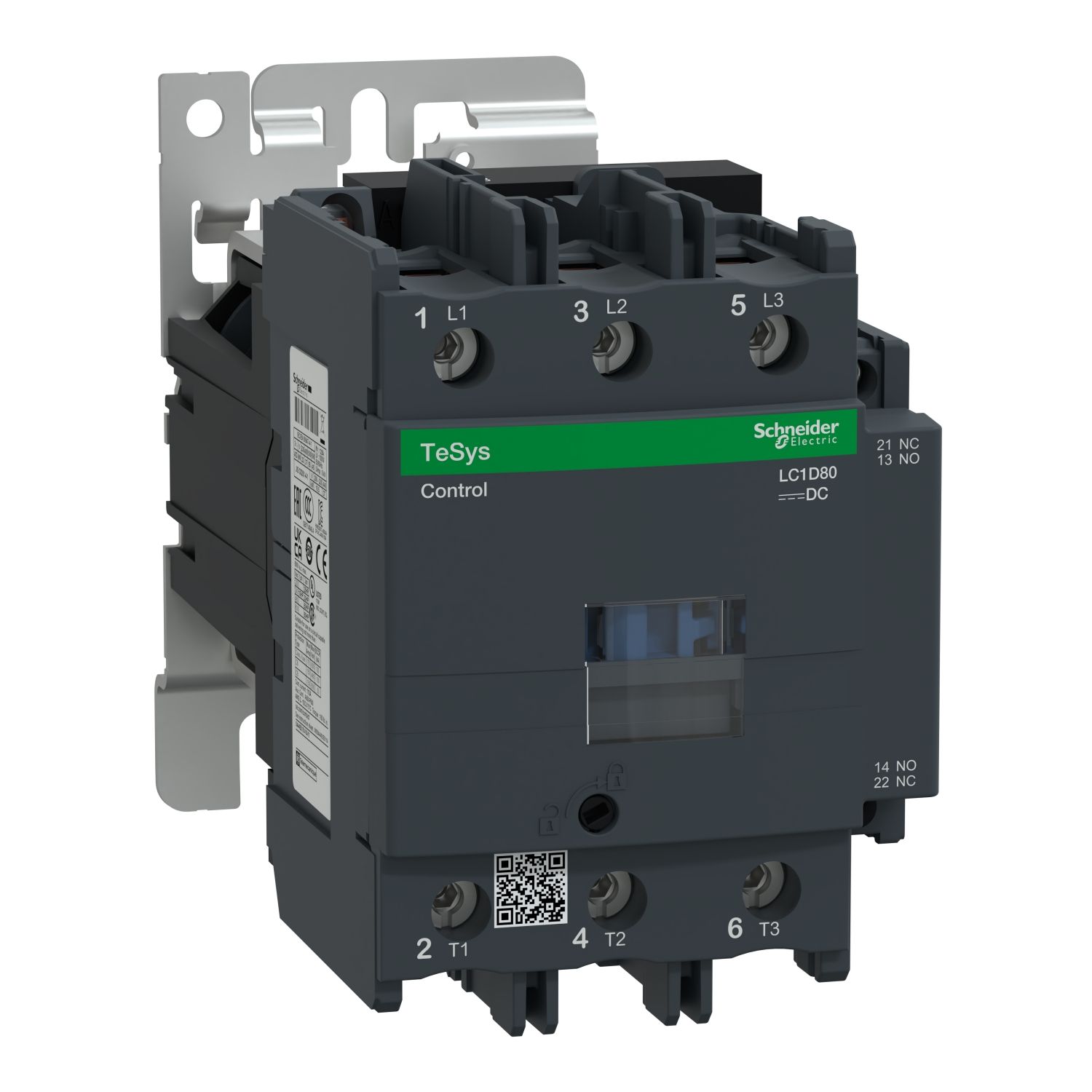

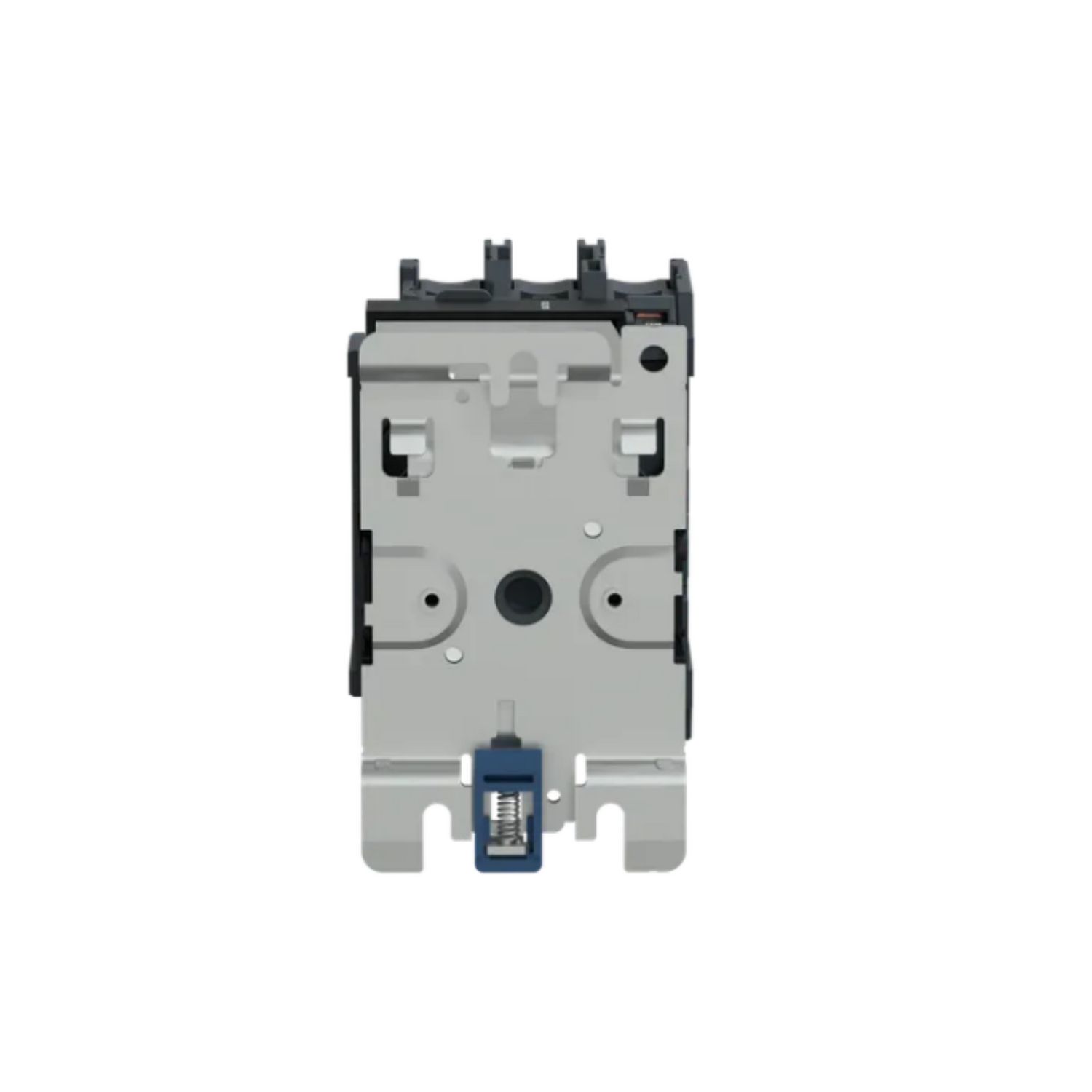

Picture of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, 440V, 80A, 24V DC standard coil, screw clamp terminals
SKU:

LC1D80BD

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, 440V, 80A, 24V DC standard coil, screw clamp terminals

$970.06
Available for Shipping : 03-Dec-2024
Product Selector
Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, 440V, 80A, 24V DC standard coil, screw clamp terminals
  • Long durability with high operating rate
  • Reliable performance under high environment
  • Green Premium product
  • Multi sdandards certified makes it possible to wide application
  • Easy installation and maintenance with compact design
  • Multiple and flexible mounting methods depending on exact need
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 80 A (at <60 °C) at <= 440 V AC-3e for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-1, AC-4, AC-3e, AC-3
[Uc] control circuit voltage 24 V DC
Device short name LC1D
Range TeSys
Range of product TeSys Deca
Poles description 3P
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage power circuit: <= 690 V AC, power circuit: <= 300 V DC 25...400 Hz
Complementary
Compatibility code LC1D
Electrical durability 1.5 Mcycles 80 A AC-3e at Ue <= 440 V, 1.5 Mcycles 80 A AC-3 at Ue <= 440 V, 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Signalling circuit frequency 25...400 Hz
Associated fuse rating 160 A gG at <= 690 V coordination type 2 for power circuit, 200 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit type DC standard
Protective cover with
[Ui] rated insulation voltage signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category III
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology without built-in suppressor module
Auxiliary contact composition 1 NO + 1 NC
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 5.1 W AC-3e, 12.5 W AC-1, 5.1 W AC-3
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
[Icw] rated short-time withstand current 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 320 A 40 °C - 1 min for power circuit, 135 A 40 °C - 10 min for power circuit, 990 A 40 °C - 1 s for power circuit, 640 A 40 °C - 10 s for power circuit
Mechanical durability 4 Mcycles
Tightening torque control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 12 N.m - on connector hexagonal screw head 4 mm, power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Minimum switching voltage 17 V for signalling circuit
Operating time 20...35 ms opening, 95...130 ms closing
Time constant 75 ms
Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 1...1.1 Uc (55-70 °C):operational DC, 0.85...1.1 Uc (-40-55 °C):operational DC, 0.1...0.3 Uc (-40-70 °C):drop-out DC
[Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Motor power hp 60 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 60 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 30 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 15 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors
Motor power kW 45 kW at 660...690 V AC 50 Hz (AC-3e), 55 kW at 500 V AC 50 Hz (AC-3e), 45 kW at 415...440 V AC 50 Hz (AC-3e), 37 kW at 380...400 V AC 50 Hz (AC-3e), 22 kW at 220...230 V AC 50 Hz (AC-3e), 15 kW at 400 V AC 50 Hz (AC-4), 45 kW at 660...690 V AC 50 Hz (AC-3), 55 kW at 500 V AC 50 Hz (AC-3), 45 kW at 415...440 V AC 50 Hz (AC-3), 37 kW at 380...400 V AC 50 Hz (AC-3), 22 kW at 220...230 V AC 50 Hz (AC-3)
Inrush power in W 22-22 W (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Insulation resistance > 10 MOhm for signalling circuit
Hold-in power consumption in W 22-22 W at 20 °C
Contact compatibility M9
Mounting support rail, plate
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor closed (10 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , shocks contactor open (8 Gn for 11 ms) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstand conforming to IACS E10 exposure to damp heat
Standards UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height 127 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 2.59 kg
Product certifications BV, LROS (Lloyds register of shipping), UL, CCC, CSA, DNV, GL, RINA, GOST
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Depth 186 mm
Width 85 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 16.200 cm
Package 1 Length 21.700 cm
Package 1 Weight 2.579 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.466 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 97.700 kg
