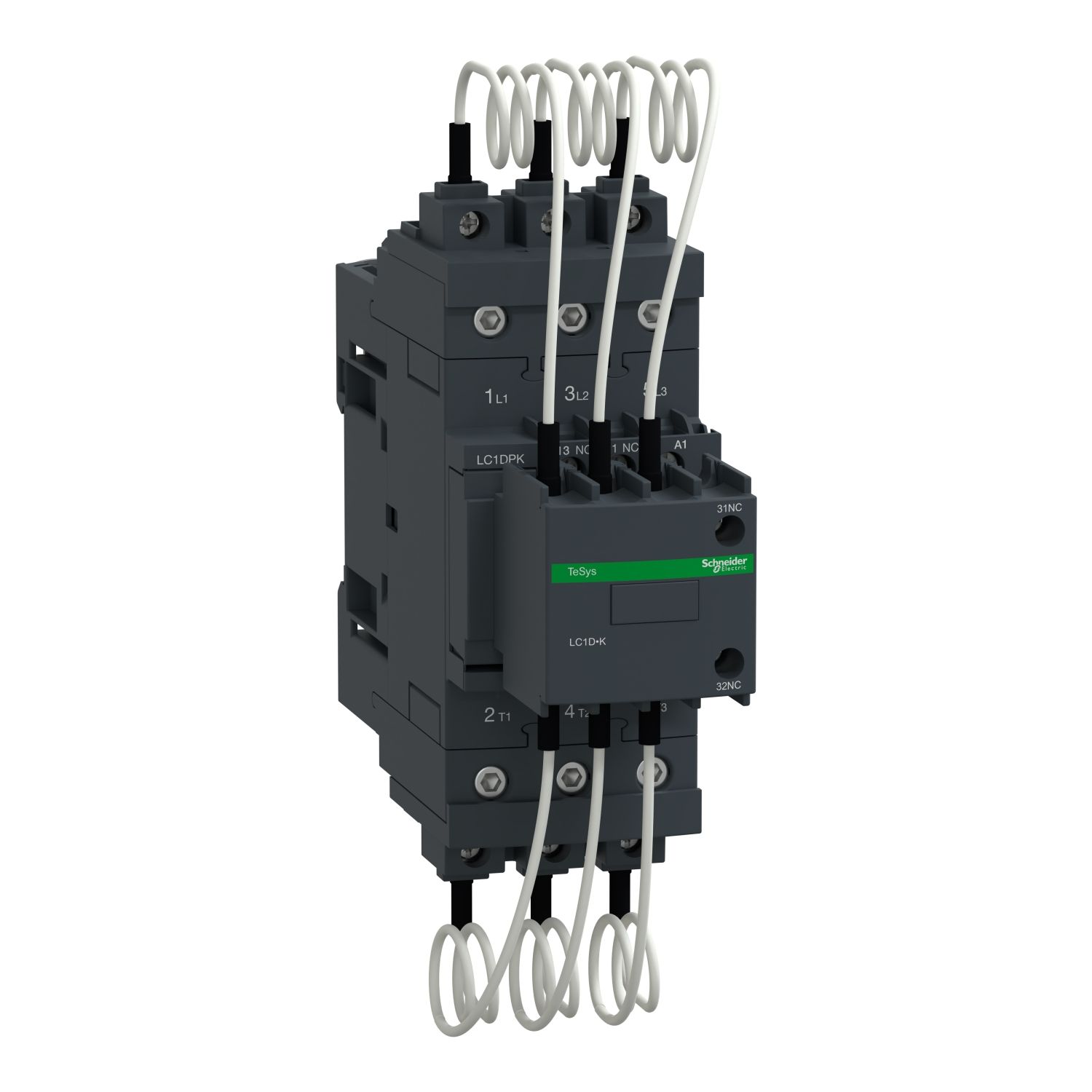

Picture of Capacitor contactor, Tesys Deca, 30kVAR at 400/415V 50Hz, 220V AC 50/60Hz coil, EverLink BTR screw terminals
SKU:

LC1DPKM7

Capacitor contactor, Tesys Deca, 30kVAR at 400/415V 50Hz, 220V AC 50/60Hz coil, EverLink BTR screw terminals

Old price: $827.20 INC GST
$521.14 INC GST
Available for Shipping : 20-Apr-2026
Capacitor contactor, Tesys Deca, 30kVAR at 400/415V 50Hz, 220V AC 50/60Hz coil, EverLink BTR screw terminals
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Apr-2026
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 30kVAR@400V 50Hz (50kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device application control
Electrical durability 200000 cycles at Ue 690 V, 300000 cycles at Ue 400 V
Auxiliary contact composition 1 NO + 2 NC instantaneous
Control circuit type AC at 50/60 Hz
Utilisation category AC-6b
Device location in system line interruption, inside delta interruption
Reactive power rating 40 kvar at 575-575 V AC 60 Hz 60 °C, 33.3 kvar at 460-460 V AC 60 Hz 60 °C, 16.5 kvar at 230-230 V AC 60 Hz 60 °C, 50 kvar at 690-690 V AC 50 Hz 60 °C, 32 kvar at 440-440 V AC 50 Hz 60 °C, 30 kvar at 400-400 V AC 50 Hz 60 °C, 17 kvar at 230-230 V AC 50 Hz 60 °C
[Uc] control circuit voltage 220 V AC 50/60 Hz
Product certifications UKCA, CSA, UL, IECEE CB Scheme
Device short name LC1DPK
Tightening torque power circuit: 8 N.m - on EverLink BTR screw connectors - cable 35-35 mm², power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm², control circuit: 1.7 N.m - on screw clamp terminals
Range TeSys Deca, TeSys
Range of product TeSys Deca
Poles description 3P
Maximum operating rate 240 cyc/h
Connections - terminals power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with or without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with or without cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
Pole contact composition 3 NO
Product name TeSys Deca, TeSys LC1D.K
Product or component type capacitor duty contactor
Contactor application power factor correction
Mounting support plate, DIN rail
Standards IEC 60335-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1
[Ue] rated operational voltage power circuit: 690 V AC 50/60 Hz
Complementary
Compatibility code LC1D
Auxiliary contacts type type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment
Ambient air temperature for storage -60-80 °C
Height 166 mm
Operating altitude 0...3000 m
Net weight 1.3 kg
IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for operation -5-60 °C
Depth 156 mm
Width 55 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 20.000 cm
Package 1 Length 23.000 cm
Package 1 Weight 1.108 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.173 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 67.388 kg
