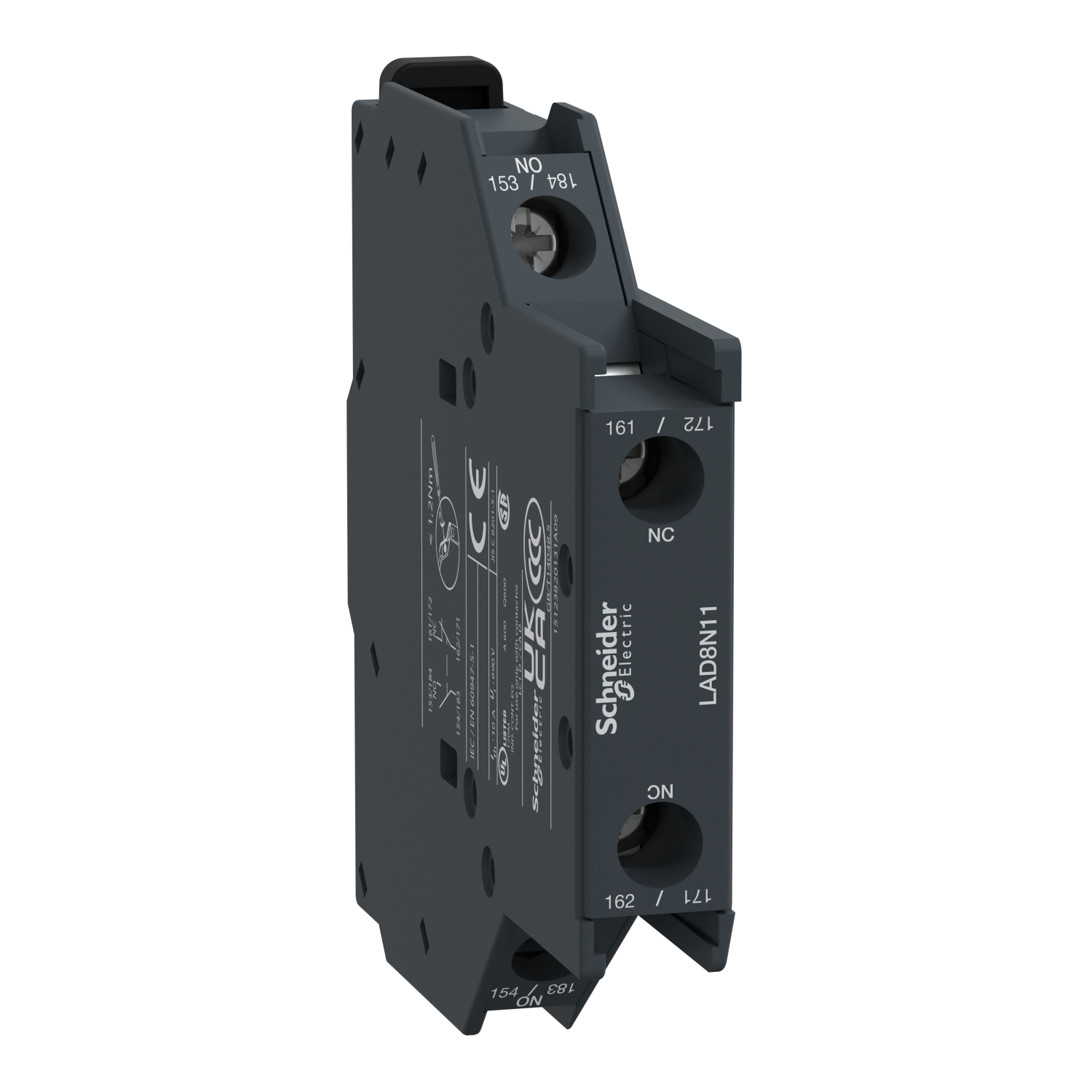

Picture of TeSys, Auxiliary contact block, TeSys Deca, 1NO + 1NC, side mounting, screw clamp terminals
SKU:

LAD8N11

TeSys, Auxiliary contact block, TeSys Deca, 1NO + 1NC, side mounting, screw clamp terminals

$67.81
Available for Shipping : 17-Nov-2024
TeSys, Auxiliary contact block, TeSys Deca, 1NO + 1NC, side mounting, screw clamp terminals
  • Meet the need for more control contact for TeSys Deca contactor and control relay
  • Easy choice for simple applications
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
CAD
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Auxiliary contacts operation instantaneous
Range TeSys
[Ith] conventional free air thermal current 10 A (at 60 °C)
Range of product TeSys Deca
[Ie] rated operational current 0.1 A at 600 V DC-13, 0.55 A at 125 V DC-13, 1.04 A at 690 V AC-15, 6 A at 120 V AC-15
[Ui] rated insulation voltage 600 V conforming to CSA, 600 V conforming to UL, 690 V conforming to IEC 60947-5-1
Pole contact composition 1 NO + 1 NC
Mounting location side
Product name TeSys Deca
Product or component type auxiliary contact block
Range compatibility TeSys F LC1F, TeSys Deca CAD AC coil, TeSys Deca LC1D40A…80A AC Coil, TeSys Deca LC1D115/150, TeSys Deca LC1D09…95 AC coil
[Ue] rated operational voltage 690 V AC 25...400 Hz
Standards EN/IEC 60947-5-1, GB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1
Product certifications UKCA, EAC, CCC, CSA, UL, CB
Complementary
Mechanical durability 30 Mcycles
Tightening torque 1.7 N.m - with screwdriver pozidriv No 2, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver flat Ø 6 mm
Minimum switching voltage 17 V
Connections - terminals screw clamp terminals 2 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
Irms rated making capacity 250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Protection type gG fuse 10 A
Height 76 mm
Shielding continuity terminal without
Depth 76 mm
Width 12.5 mm
Insulation resistance > 10 MOhm
Minimum switching current 5 mA
Permissible short-time rating 140 A 100 ms, 120 A 500 ms, 100 A 1 s
Non-overlap time 1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Environment
Protective treatment TH conforming to IEC 60068
Environmental characteristic normal environment
Ambient air temperature for storage -60-80 °C
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -5-60 °C
Operating altitude 3000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 7.1 cm
Package 1 Length 7.5 cm
Package 1 Weight 62.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.308 kg
Unit Type of Package 3 3
Number of Units in Package 3 960
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 79 kg
